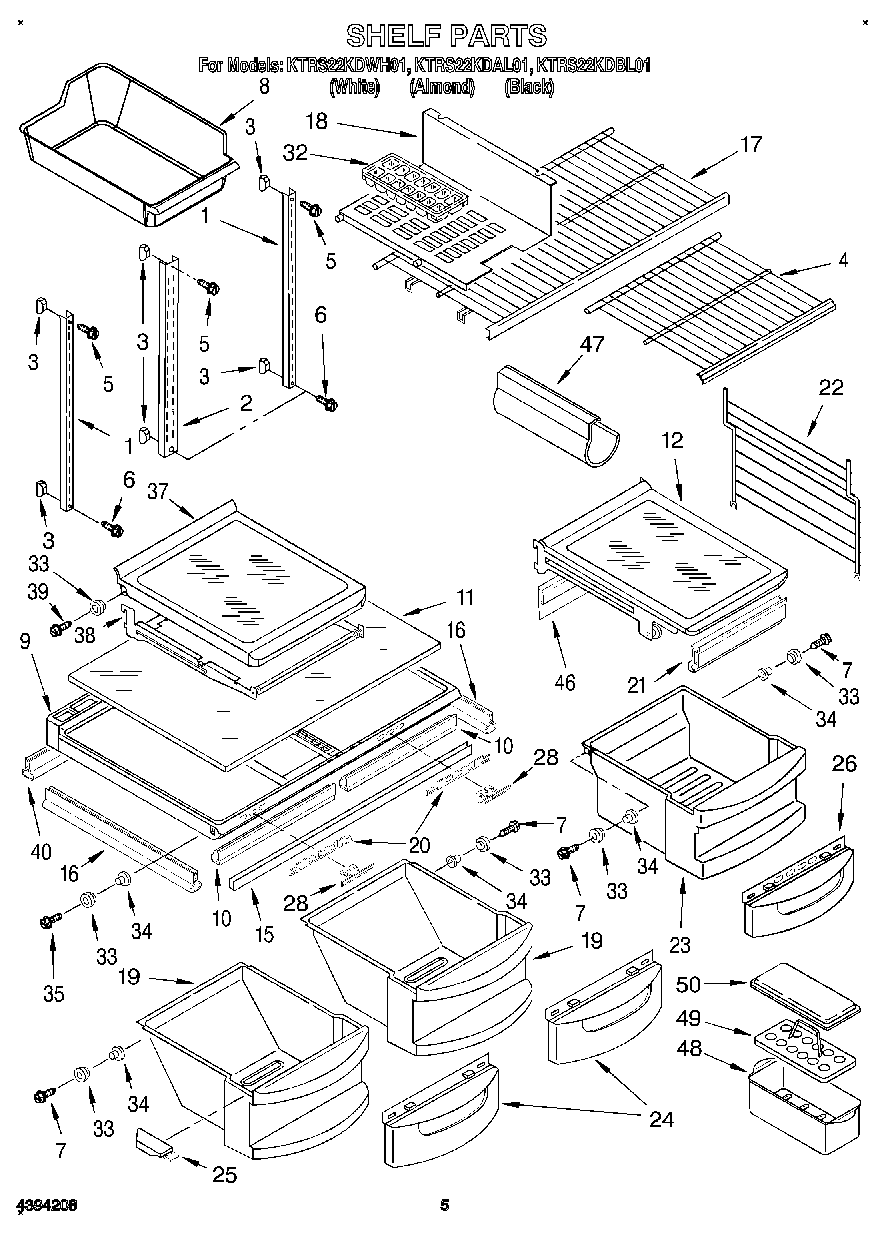

KTRS22KDWH01 04 – SHELF, LIT/OPTIONAL

KTRS22KDWH01 04 – SHELF, LIT/OPTIONAL

Written by

in

KTRS22KDWH01 04 – SHELF, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2176901
	Torx Key
	WPL LIT2180084
	WPL LIT2173943
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
4	Shelf, Freezer (Top)
5	Screw (3)
6	WP489474 Whirlpool Refrigerator Screw
7	WP489261 Whirlpool Refrigerator Screw
8	Ice Cube Pan
9	Pan Cover & Roller Assembly
10	WP1125528 Whirlpool Refrigerator Gasket
11	Glass, Crisper Cover
12	Pan Shelf & Roller Assembly
15	WP2172748 Whirlpool Drawer Support
16	Gasket, Pan Cover (Side)
17	Shelf, Freezer
18	Shelf, Ice Tray
19	Pan, Crisper (Includes Rollers)
20	Slide, Humidity
21	Gasket-Front
22	Divider
23	Meat Pan Assy.
24	Window, Crisper Pan
25	Cap, Crisper (Left Side)
25	Cap, Crisper (Right Side)
26	Window, Meat Pan
28	Button, Humidity Control
32	WP841180A Whirlpool Microwave Glass Turntable Tray
33	Roller
34	Eyelet, Roller
35	WPW10272364 Whirlpool Refrigerator Screw
37	Shelf, Spillguard
38	Frame & Roller Assembly
39	Screw
40	Gasket, Pan Cover-Rear
46	Gasket-Rear
47	W10777924 Whirlpool Refrigerator Wine Rack
48	W10136387A Whirlpool Refrigerator Egg Container
49	WP2177817 Whirlpool Refrigerator Egg Container
50	350930 Whirlpool White Spray Paint
50	WP542638 Whirlpool Refrigerator Grease
50	Door Reversal Instructions
50	350956 Whirlpool Spray Assembly
50	72017 Whirlpool Appliance Touch-Up Paint White
50	212643 Whirlpool Refrigerator Permagum Sealer
50	CEMENT, ALUMILASTIC (1 1/4 OZ.)
50	WPL 799833
50	WPL 876029
50	WP505587 Whirlpool Refrigerator Sealer
50	285006 Whirlpool Spray
50	72032 Whirlpool Touch Up Paint Black
50	WP503695 Whirlpool Refrigerator Sealer
50	876370 Whirlpool Refrigerator Insulation
50	833938 Whirlpool Refrigerator Terminal
50	606755 Whirlpool Refrigerator Bag
50	511873 Whirlpool Refrigerator Paint
50	350942 Whirlpool Spray Paint
50	Cover
50	Almond (Uncut)
50	WP72107 Whirlpool Touchup
50	799344 Whirlpool Refrigerator Paint
50	TAPE, VINYL (3/4 X 108“)
