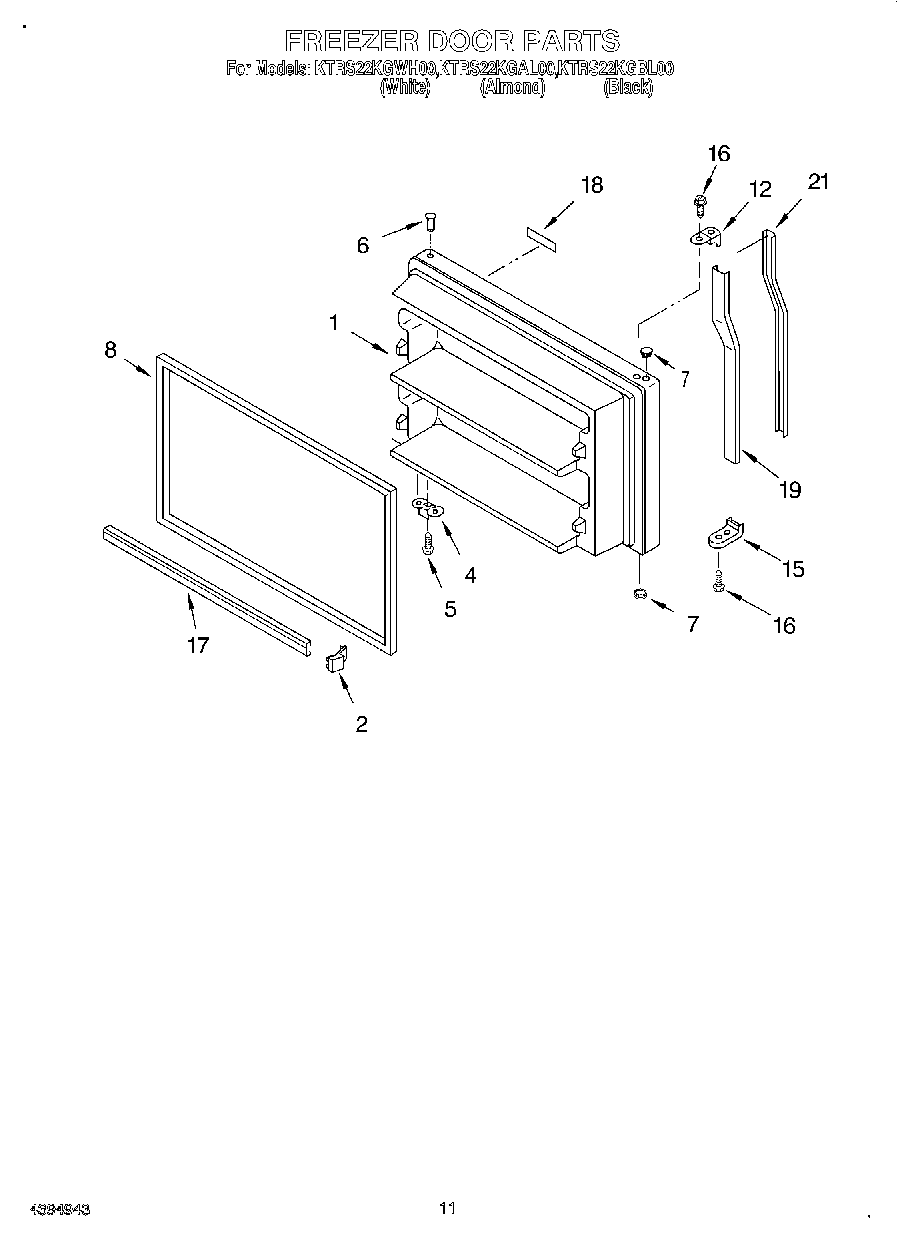

KTRS22KGAL00 06 – FREEZER DOOR, LIT/OPTIONAL

KTRS22KGAL00 06 – FREEZER DOOR, LIT/OPTIONAL

Written by

in

KTRS22KGAL00 06 – FREEZER DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2195481
	WPL LIT2199010
	Torx Key
	WPL LIT2199062
	Modular Icemaker Service Sheet
1	Freezer Door (Includes No.8) (Almond)
1	Freezer Door (Includes No.8) (Black)
1	Freezer Door (Includes No.8) (White)
2	ENDCAP
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	WP2212651 Whirlpool Refrigerator Button Plug
8	WHITE DOOR GASKET-FIP
8	2177310 Whirlpool Refrigerator Door Gasket
12	Endcap
12	Endcap, Handle (Black)
12	Endcap, Handle (Almond)
15	End Cap (Black)
15	Endcap
15	Endcap (Almond)
16	WP489357 Whirlpool Recessed Screw
17	Trim, Door Shelf (2)
18	Nameplate (White)
18	Nameplate (Almond)
18	Nameplate (Black)
19	Insert, Retainer (Black)
19	Insert, Retainer (Almond)
19	Insert, Retainer (White)
21	Insert, Handle (Black)
21	Insert, Handle (White)
21	Insert, Handle (Almond)
22	350942 Whirlpool Spray Paint
22	799344 Whirlpool Refrigerator Paint
22	72017 Whirlpool Appliance Touch-Up Paint White
22	350956 Whirlpool Spray Assembly
22	Door Reversal Instructions
22	350930 Whirlpool White Spray Paint
22	WP72107 Whirlpool Touchup
22	Almond (Uncut)
22	WPL 876029
22	WPL 799833
22	WPL 799832
22	CEMENT, ALUMILASTIC (1 1/4 OZ.)
22	TAPE, VINYL (3/4 X 108“)
22	285006 Whirlpool Spray
22	72032 Whirlpool Touch Up Paint Black
22	WP542638 Whirlpool Refrigerator Grease
22	WP505587 Whirlpool Refrigerator Sealer
22	WP503695 Whirlpool Refrigerator Sealer
22	876370 Whirlpool Refrigerator Insulation
22	833938 Whirlpool Refrigerator Terminal
22	606755 Whirlpool Refrigerator Bag
22	511873 Whirlpool Refrigerator Paint
22	212643 Whirlpool Refrigerator Permagum Sealer
22	Featurepak (Includes 3, 20, 21, 22, 23, 28, 29, 30 & 31. See also Shelf Parts and Freezer Door Parts
