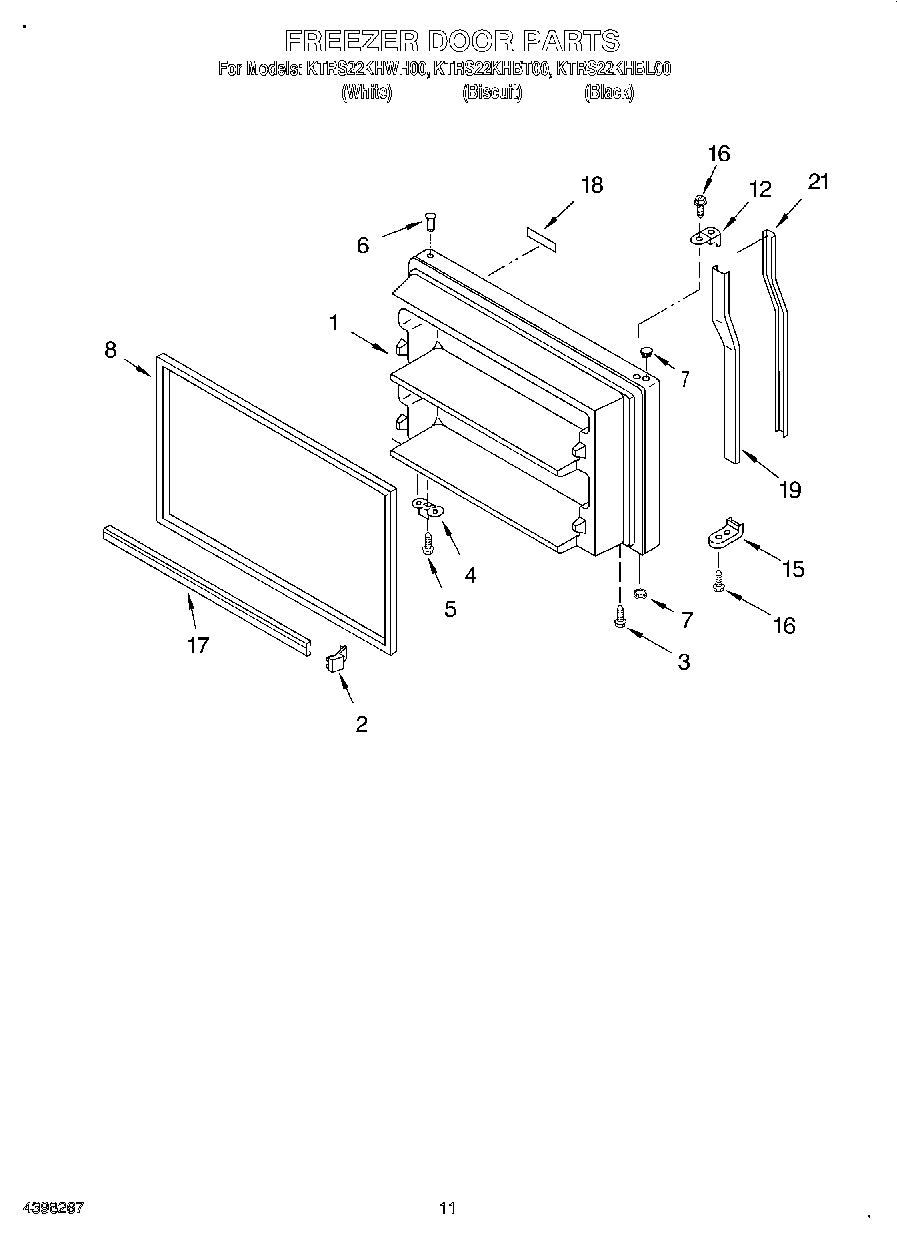

KTRS22KHBT00 06 – FREEZER DOOR, OPTIONAL

Products

Position	Product
1	Freezer Door (Includes No.8) (White)
1	Freezer Door (Includes No.8) (Black)
1	Freezer Door (Includes No.6 & No.8) (Biscuit)
2	ENDCAP
3	WP8281206 Whirlpool Refrigerator Screw
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	WP2212651 Whirlpool Refrigerator Button Plug
7	WP2212649 Whirlpool Refrigerator Button Plug
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	WHITE DOOR GASKET-FIP
8	2177310 Whirlpool Refrigerator Door Gasket
12	Endcap, Handle (Black)
12	Endcap (Biscuit)
12	Endcap
15	Endcap
15	End Cap (Black)
15	Endcap (Biscuit)
16	WP489357 Whirlpool Recessed Screw
17	Trim, Door Shelf (2)
18	Nameplate (White)
18	Nameplate (Black)
18	Nameplate (Biscuit)
19	Insert, Handle (Biscuit)
19	Insert, Retainer (Black)
19	Insert, Retainer (White)
21	Insert, Handle (White)
21	Insert, Handle (Biscuit)
21	Insert, Handle (Black)
22	606755 Whirlpool Refrigerator Bag
22	511873 Whirlpool Refrigerator Paint
22	350942 Whirlpool Spray Paint
22	212643 Whirlpool Refrigerator Permagum Sealer
22	WPL 876029
22	4392899 Whirlpool Biscuit Touch-Up Paint
22	Almond (Uncut)
22	799344 Whirlpool Refrigerator Paint
22	72017 Whirlpool Appliance Touch-Up Paint White
22	350930 Whirlpool White Spray Paint
22	833938 Whirlpool Refrigerator Terminal
22	876370 Whirlpool Refrigerator Insulation
22	WPL 799833
22	WPL 799832
22	CEMENT, ALUMILASTIC (1 1/4 OZ.)
22	TAPE, VINYL (3/4 X 108``)
22	285006 Whirlpool Spray
22	72032 Whirlpool Touch Up Paint Black
22	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
22	Enamel, Biscuit (13 Oz. Spray Can)
22	Torx Key
22	WP542638 Whirlpool Refrigerator Grease
22	WP505587 Whirlpool Refrigerator Sealer
22	WP503695 Whirlpool Refrigerator Sealer
22	Featurepak (Includes 3, 20, 21, 22, 23, 28, 29, 30 & 31. See also Shelf Parts and Freezer Door Parts
