KTRS22KXWH00 05 – SHELF, LIT/OPTIONAL

KTRS22KXWH00 05 – SHELF, LIT/OPTIONAL

Written by

in

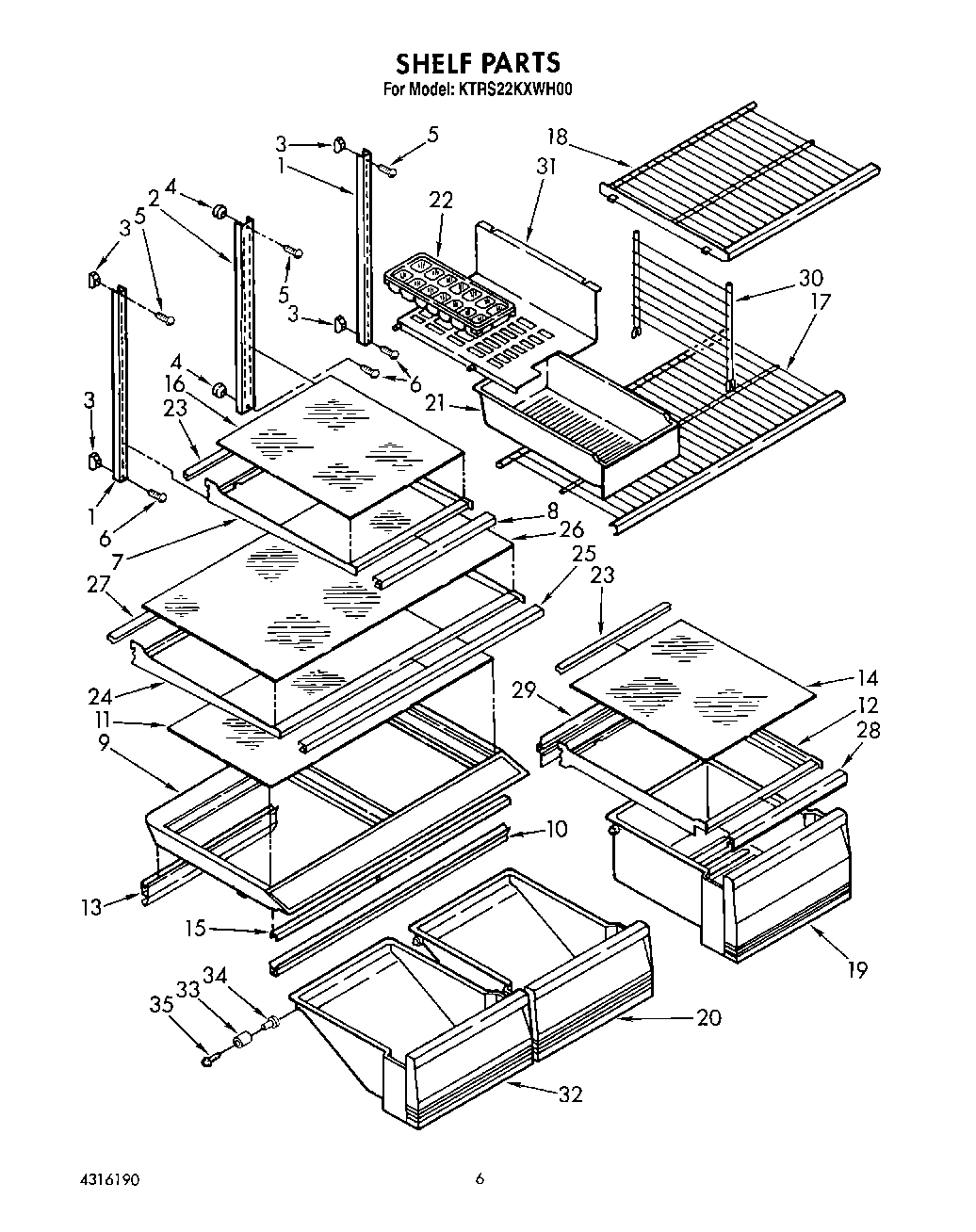

KTRS22KXWH00 05 – SHELF, LIT/OPTIONAL

Products

Position	Product
	1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
	Torx Key
	WPL LIT1126221
	WPL LIT2154432
	WPL LIT4316190
	WPL LIT1125570
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
4	Screw Support, Center Ladder (2)
5	Screw (3)
6	WP488163 Whirlpool Refrigerator Screw
7	Shelf, Cantilever (2)
8	Gasket (Front)
9	Pan Cover Assembly
10	WP1125528 Whirlpool Refrigerator Gasket
11	Glass, Crisper Cover
12	Pan Shelf, Cantilever
13	Gasket, Pan Cover-Rear
14	Glass, Shelf
15	WP2172748 Whirlpool Drawer Support
16	Glass, Shelf
17	Shelf, Freezer
18	Shelf, Freezer
19	Pan, Crisper
20	Pan, Meat
21	PAN-ICE
22	WP841180A Whirlpool Microwave Glass Turntable Tray
23	Retainer, Glass
24	Shelf, Full
25	Gasket, Front Cantilever
26	Glass, Full Shelf
27	Retainer, Shelf
28	Gasket, Front
29	Gasket, Rear
30	Divider
31	Shelf, Ice Tray
32	Utility Pan
33	Roller
33	Roller, R.S.
34	Eyelet, Roller
35	Almond (Uncut)
35	350942 Whirlpool Spray Paint
35	212643 Whirlpool Refrigerator Permagum Sealer
35	350956 Whirlpool Spray Assembly
35	72017 Whirlpool Appliance Touch-Up Paint White
35	799344 Whirlpool Refrigerator Paint
35	WP72107 Whirlpool Touchup
35	Leveler (Thinner)
35	350930 Whirlpool White Spray Paint
35	511873 Whirlpool Refrigerator Paint
35	606755 Whirlpool Refrigerator Bag
35	WPL 876029
35	WPL 799833
35	WP489261 Whirlpool Refrigerator Screw
35	CEMENT, ALUMILASTIC (1 1/4 OZ.)
35	TAPE, VINYL (3/4 X 108“)
35	WP542638 Whirlpool Refrigerator Grease
35	WP505587 Whirlpool Refrigerator Sealer
35	285006 Whirlpool Spray
35	WP503695 Whirlpool Refrigerator Sealer
35	876370 Whirlpool Refrigerator Insulation
35	833938 Whirlpool Refrigerator Terminal
35	72032 Whirlpool Touch Up Paint Black
