KTRS22MAAL00 05 – SHELF, LIT/OPTIONAL

KTRS22MAAL00 05 – SHELF, LIT/OPTIONAL

Written by

in

KTRS22MAAL00 05 – SHELF, LIT/OPTIONAL

Products

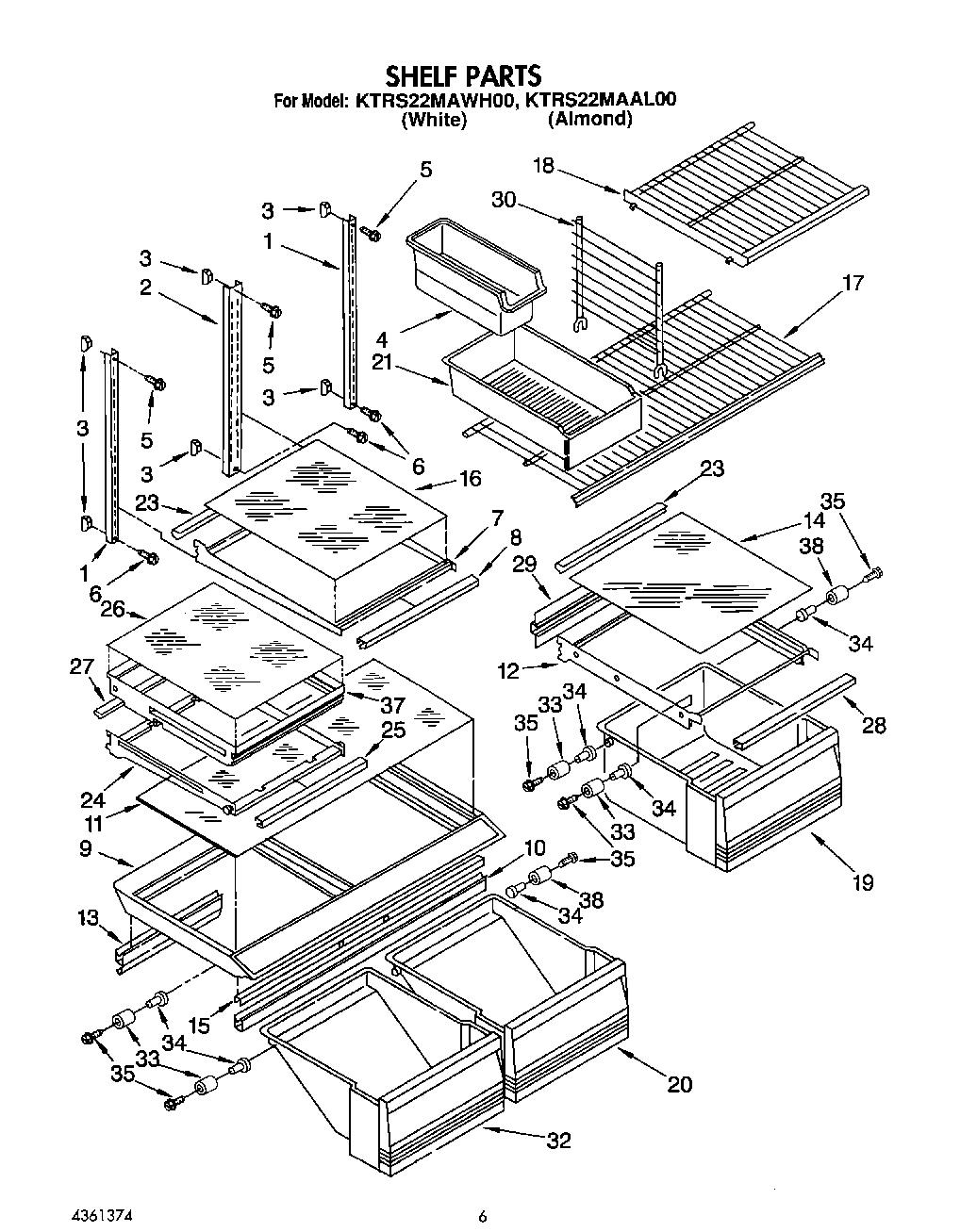

Position	Product
	Torx Key
	WPL LIT4361374
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	WPL LIT2154861
	WPL LIT2161695
	WPL LIT2161973
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
4	WP982704 Whirlpool Refrigerator Container
5	Screw (3)
6	WP488163 Whirlpool Refrigerator Screw
7	Shelf, Cantilever (2)
8	Gasket (Front)
9	Pan Cover & Roller Assembly
10	WP1125528 Whirlpool Refrigerator Gasket
11	Glass, Crisper Cover
12	Pan Shelf & Roller Assembly
13	Gasket, Pan Cover-Rear
14	Glass, Shelf
15	WP2172748 Whirlpool Drawer Support
16	Glass, Shelf
17	Shelf, Freezer
18	Shelf, Freezer
19	Crisper Pan & Roller Assembly
20	Meat Pan Assy.
21	PAN-ICE
23	Retainer, Glass
24	Frame & Roller Assembly
25	Gasket (Front)
26	Glass
27	Reflector, Shelf
28	Gasket, Front
29	Gasket, Rear
30	Divider
32	Utility Pan Roller Assembly
33	Roller
34	Eyelet, Roller
35	WP489261 Whirlpool Refrigerator Screw
37	Frame & Roller Assembly
38	72017 Whirlpool Appliance Touch-Up Paint White
38	350956 Whirlpool Spray Assembly
38	WPL 799833
38	CEMENT, ALUMILASTIC (1 1/4 OZ.)
38	212643 Whirlpool Refrigerator Permagum Sealer
38	350930 Whirlpool White Spray Paint
38	WP505587 Whirlpool Refrigerator Sealer
38	TAPE, VINYL (3/4 X 108“)
38	WP542638 Whirlpool Refrigerator Grease
38	WP72107 Whirlpool Touchup
38	WPL 876029
38	350942 Whirlpool Spray Paint
38	511873 Whirlpool Refrigerator Paint
38	Almond (Uncut)
38	285006 Whirlpool Spray
38	606755 Whirlpool Refrigerator Bag
38	833938 Whirlpool Refrigerator Terminal
38	876370 Whirlpool Refrigerator Insulation
38	Roller
38	72032 Whirlpool Touch Up Paint Black
38	WP503695 Whirlpool Refrigerator Sealer
38	Leveler (Thinner)
38	799344 Whirlpool Refrigerator Paint
