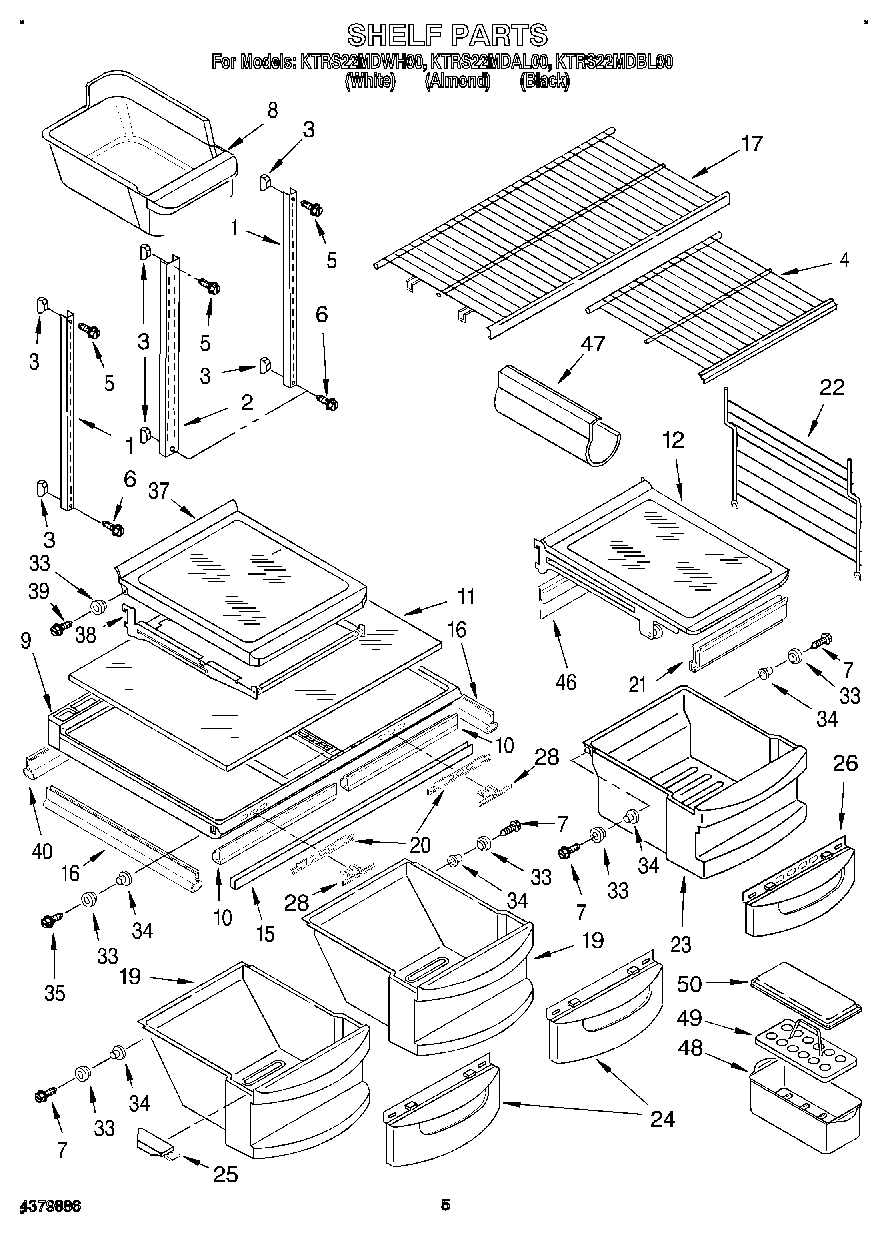

KTRS22MDAL00 04 – SHELF

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
4	Shelf, Freezer (Top)
5	Screw (3)
6	WP489474 Whirlpool Refrigerator Screw
7	WP489261 Whirlpool Refrigerator Screw
8	Ice Cube Pan
9	Pan Cover & Roller Assembly
10	WP1125528 Whirlpool Refrigerator Gasket
11	Glass, Crisper Cover
12	Pan Shelf & Roller Assembly
15	WP2172748 Whirlpool Drawer Support
16	Gasket, Pan Cover (Side)
17	Shelf, Freezer
19	Pan, Crisper (Includes Rollers)
20	Slide, Humidity
21	Gasket-Front
22	Divider
23	Meat Pan Assy.
24	Window, Crisper Pan
25	Cap, Crisper (Right Side)
25	Cap, Crisper (Left Side)
26	Window, Meat Pan
28	Button, Humidity Control
33	Roller
34	Eyelet, Roller
35	WPW10272364 Whirlpool Refrigerator Screw
37	Shelf, Spillguard
38	Frame & Roller Assembly
39	Screw
40	Gasket, Pan Cover-Rear
46	Gasket-Rear
47	W10777924 Whirlpool Refrigerator Wine Rack
48	W10136387A Whirlpool Refrigerator Egg Container
49	WP2177817 Whirlpool Refrigerator Egg Container
50	Cover
