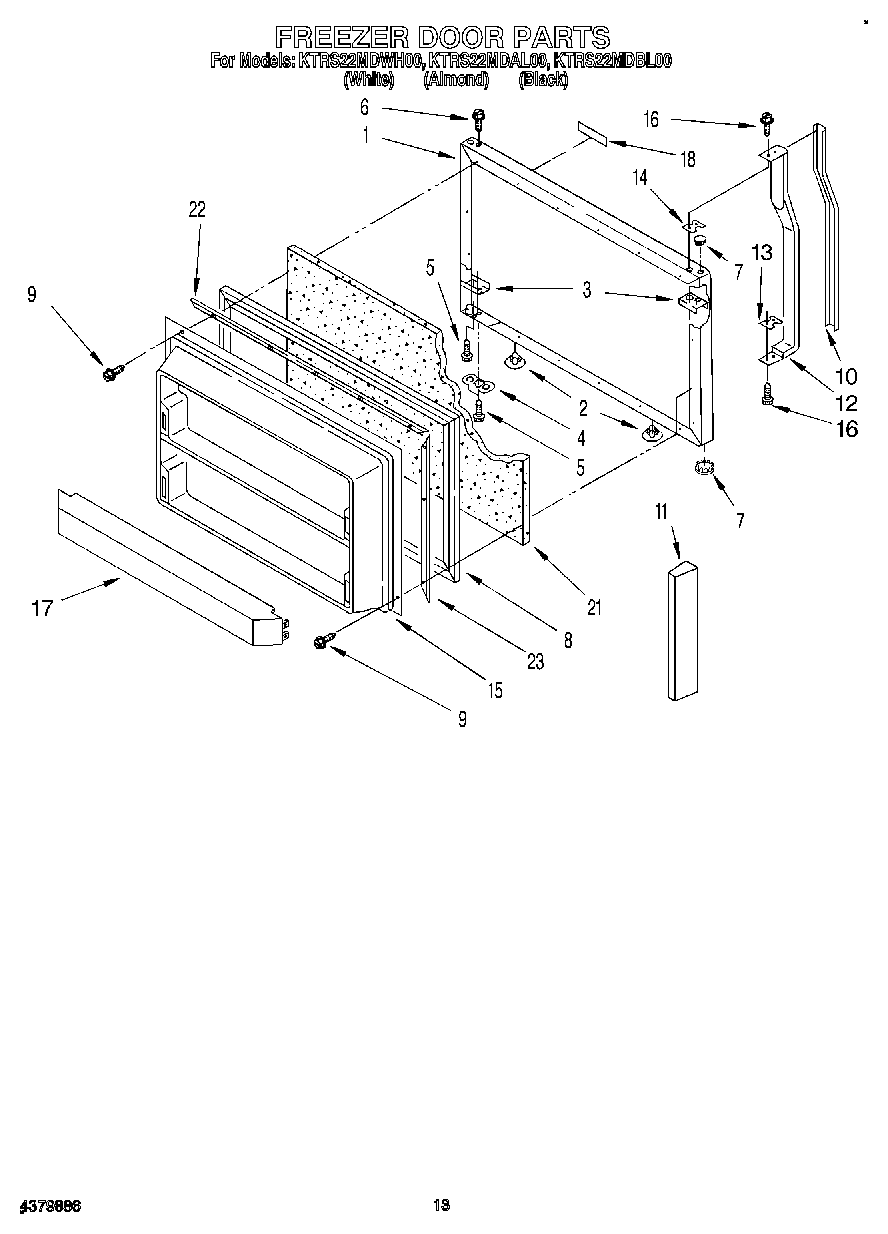

KTRS22MDAL00 08 – FREEZER DOOR, LIT/OPTIONAL

KTRS22MDAL00 08 – FREEZER DOOR, LIT/OPTIONAL

Written by

in

KTRS22MDAL00 08 – FREEZER DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2180084
	WPL LIT2169004
	Torx Key
	WPL LIT2176901
1	Panel, Freezer Door (Also Order Item 21) (Black)
1	Panel, Freezer Door (Also Order Item 21) (White)
1	Panel, Freezer Door (Also Order Item 21) (Almond)
2	Hole Plug (2) (Almond)
2	Hole Plug (2) (Black)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	WP2212651 Whirlpool Refrigerator Button Plug
7	Hole Plug (Almond)
8	2188460A Whirlpool Refrigerator Door Gasket
9	WP489442 Whirlpool Refrigerator Screw
10	Insert, Handle (Black)
10	Insert, Handle (Almond)
10	Insert, Handle (White)
11	Dike, Door (2)
12	Handle
13	Shim, Bottom
14	Spacer, Handle
15	Interior Door Panel
16	WP488920 Whirlpool Refrigerator Screw
17	Trivet, Door
18	Nameplate (White Model)
18	Nameplate (Black Model)
18	Nameplate (Almond Model)
22	Gasket Retainer, Top & Bottom
23	799344 Whirlpool Refrigerator Paint
23	350930 Whirlpool White Spray Paint
23	350956 Whirlpool Spray Assembly
23	350942 Whirlpool Spray Paint
23	Door Reversal Instructions
23	Almond (Uncut)
23	72017 Whirlpool Appliance Touch-Up Paint White
23	212643 Whirlpool Refrigerator Permagum Sealer
23	WP72107 Whirlpool Touchup
23	511873 Whirlpool Refrigerator Paint
23	285006 Whirlpool Spray
23	WPL 799833
23	CEMENT, ALUMILASTIC (1 1/4 OZ.)
23	TAPE, VINYL (3/4 X 108“)
23	WP542638 Whirlpool Refrigerator Grease
23	WP505587 Whirlpool Refrigerator Sealer
23	WP503695 Whirlpool Refrigerator Sealer
23	Retainer, Gasket
23	72032 Whirlpool Touch Up Paint Black
23	876370 Whirlpool Refrigerator Insulation
23	833938 Whirlpool Refrigerator Terminal
23	606755 Whirlpool Refrigerator Bag
23	WPL 876029
