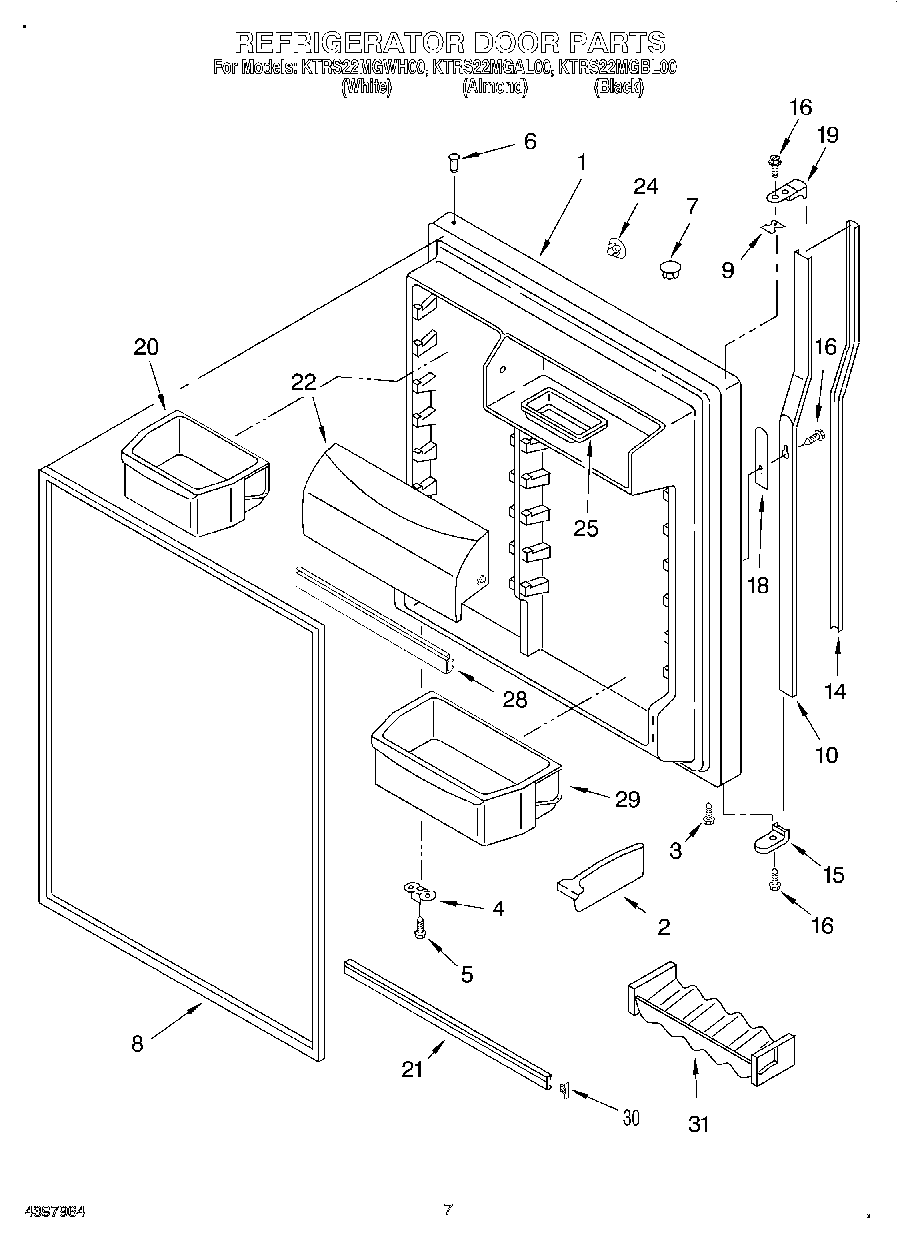

KTRS22MGAL00 04 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes No.8) (White)
1	Refrigerator Door (Includes No.8) (Almond)
1	Refrigerator Door (Includes No.8) (Black)
2	Divider-Door
3	WP8281206 Whirlpool Refrigerator Screw
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	WP2212651 Whirlpool Refrigerator Button Plug
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
8	2159061 Whirlpool Refrigerator Door Gasket
8	2177311 Whirlpool Refrigerator Magnetic Door Gasket
9	Shim, Bottom
10	Retainer, Insert (White)
10	Retainer, Insert (Black)
10	Retainer, Insert (Almond)
14	Insert, Handle (Almond)
14	Insert, Handle (Black)
14	Insert, Handle (White)
15	Endcap, Handle (Black)
15	Endcap, Handle (White)
15	Endcap, Handle (Almond)
16	WP489357 Whirlpool Recessed Screw
18	Spacer
19	End Cap (Black)
19	Endcap
19	Endcap (Almond)
20	Bin, Door Shelf (2)
21	WPW10421486 Whirlpool Refrigerator Door Trim
22	WP2313637 Whirlpool Cutting Grid Assembly
24	Hole Plug (Almond)
24	WP2189009 Whirlpool Refrigerator Handle Plug
24	WP2189000 Whirlpool Refrigerator Handle Plug
25	Butter Tray
28	Gasket, Door Compartment
29	Bin, Door Shelf
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31	Beverage Holder
100	Featurepak (Includes 3, 20, 21, 22, 23, 28, 29, 30 & 31. See also Shelf Parts and Freezer Door Parts
