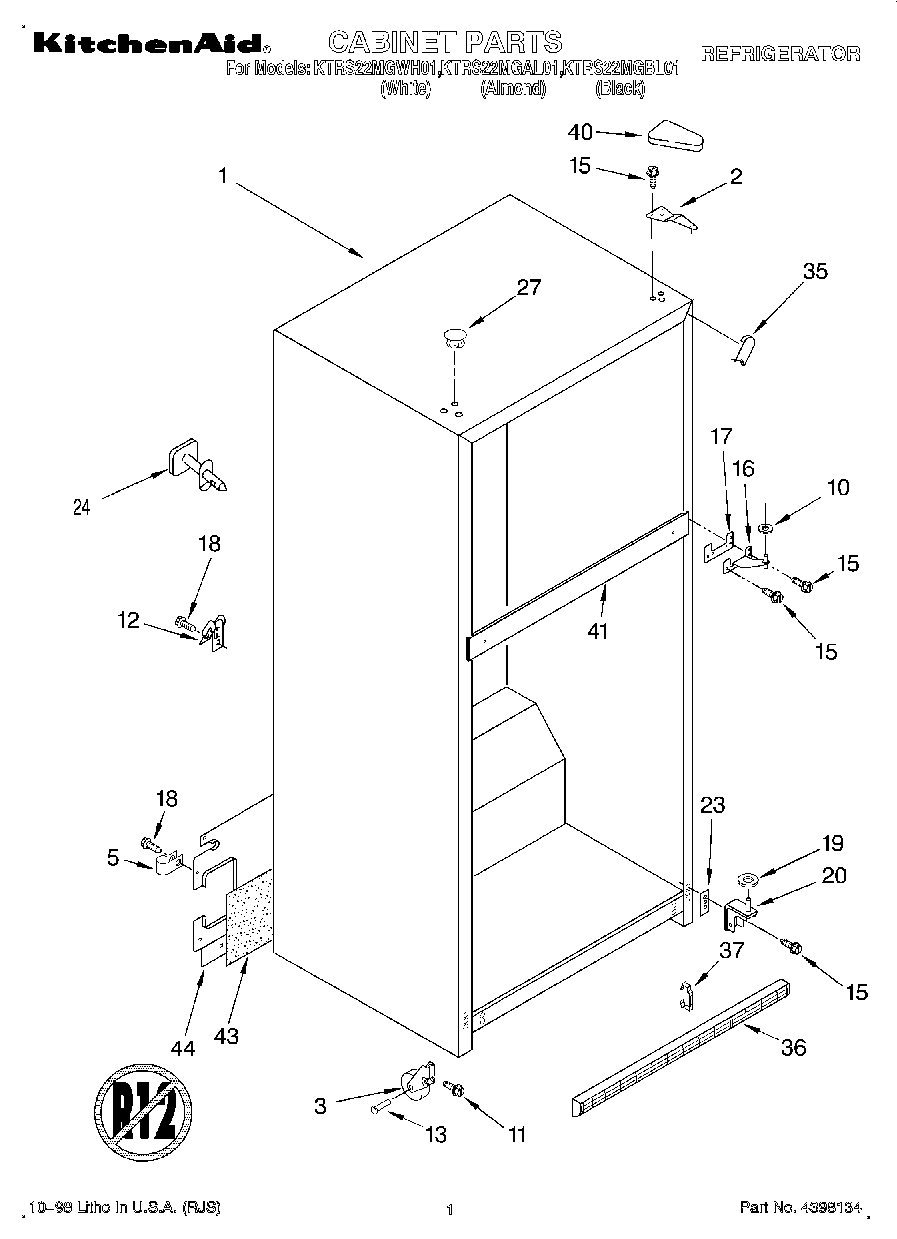

KTRS22MGAL01 01 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
5WP488366 Whirlpool Refrigerator Clamp
10WP489467 Whirlpool Hinge Shim
11Screw
12549193 Whirlpool Refrigerator Power Clamp
13W11594405 Whirlpool Axle
15WP489497 Whirlpool Screw
16WP2254618 Whirlpool Center Door Hinge
17WP2183854 Whirlpool Refrigerator Shim
18WP489464 Whirlpool Refrigerator Screw
19WP487576 Whirlpool Washer
20WP2254473 Whirlpool Refrigerator Door Hinge
23Shim, Bottom Hinge
24Fitting, Water Tube (Not Serviced)
27Hole Plug (6) (Almond)
27WP2151652 Whirlpool Refrigerator Button Plug
27WP2183998 Whirlpool Refrigerator Button Plug
35WPW10283959 Whirlpool Refrigerator Filler
35Corner Filler (2) (Almond)
35W11252732 Whirlpool Refrigerator Filler
36Grille (Black)
36Grille (White)
36Grille (Almond)
37CLIP, GRILLE
40Cover, Hinge (Almond)
40WP2213360 Whirlpool Refrigerator Cover
40WP2213363 Whirlpool Refrigerator Cover
41Rail Center (Not Serviced)
43Insulation
44Cover, Unit
