KTRS22MGWH01 07 – FREEZER DOOR, LIT/OPTIONAL

KTRS22MGWH01 07 – FREEZER DOOR, LIT/OPTIONAL

Written by

in

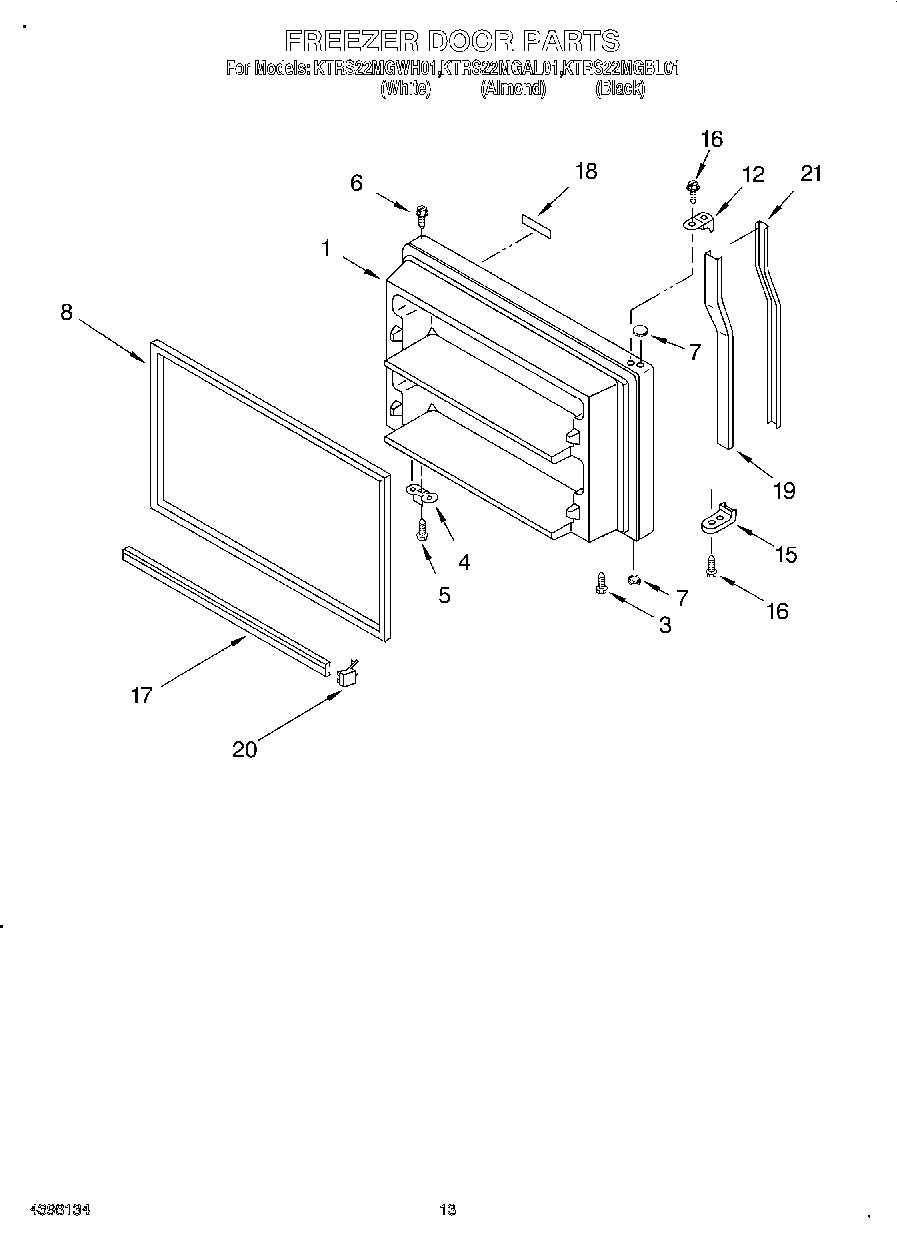

KTRS22MGWH01 07 – FREEZER DOOR, LIT/OPTIONAL

Products

PositionProduct
WPL LIT2195481
Torx Key
WPL LIT2199010
WPL LIT2199062
Modular Icemaker Service Sheet
1Freezer Door (Includes No.8) (Almond)
1Freezer Door (Includes No.8) (White)
1Freezer Door (Includes No.8) (Black)
3WP8281206 Whirlpool Refrigerator Screw
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7WP2212651 Whirlpool Refrigerator Button Plug
7Hole Plug (Almond)
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82177310 Whirlpool Refrigerator Door Gasket
8WHITE DOOR GASKET-FIP
12Endcap, Handle (Almond)
12Endcap, Handle (Black)
12Endcap
15End Cap (Black)
15Endcap
15Endcap (Almond)
16WP489357 Whirlpool Recessed Screw
17Trim, Door Shelf (2)
18Nameplate (White)
18Nameplate (Almond)
18Nameplate (Black)
19Insert, Retainer (Black)
19Insert, Retainer (Almond)
19Insert, Retainer (White)
20ENDCAP
21Insert, Handle (Almond)
21Insert, Handle (Black)
21Insert, Handle (White)
100799344 Whirlpool Refrigerator Paint
10072017 Whirlpool Appliance Touch-Up Paint White
100350956 Whirlpool Spray Assembly
100Door Reversal Instructions
100350942 Whirlpool Spray Paint
100350930 Whirlpool White Spray Paint
100WP72107 Whirlpool Touchup
100Almond (Uncut)
100WPL 876029
100WPL 799833
100WPL 799832
100CEMENT, ALUMILASTIC (1 1/4 OZ.)
100TAPE, VINYL (3/4 X 108“)
100WP542638 Whirlpool Refrigerator Grease
100285006 Whirlpool Spray
10072032 Whirlpool Touch Up Paint Black
100WP505587 Whirlpool Refrigerator Sealer
100WP503695 Whirlpool Refrigerator Sealer
100876370 Whirlpool Refrigerator Insulation
100833938 Whirlpool Refrigerator Terminal
100606755 Whirlpool Refrigerator Bag
100511873 Whirlpool Refrigerator Paint
100212643 Whirlpool Refrigerator Permagum Sealer
100Featurepak (Includes 3, 20, 21, 22, 23, 28, 29, 30 & 31. See also Shelf Parts and Freezer Door Parts
