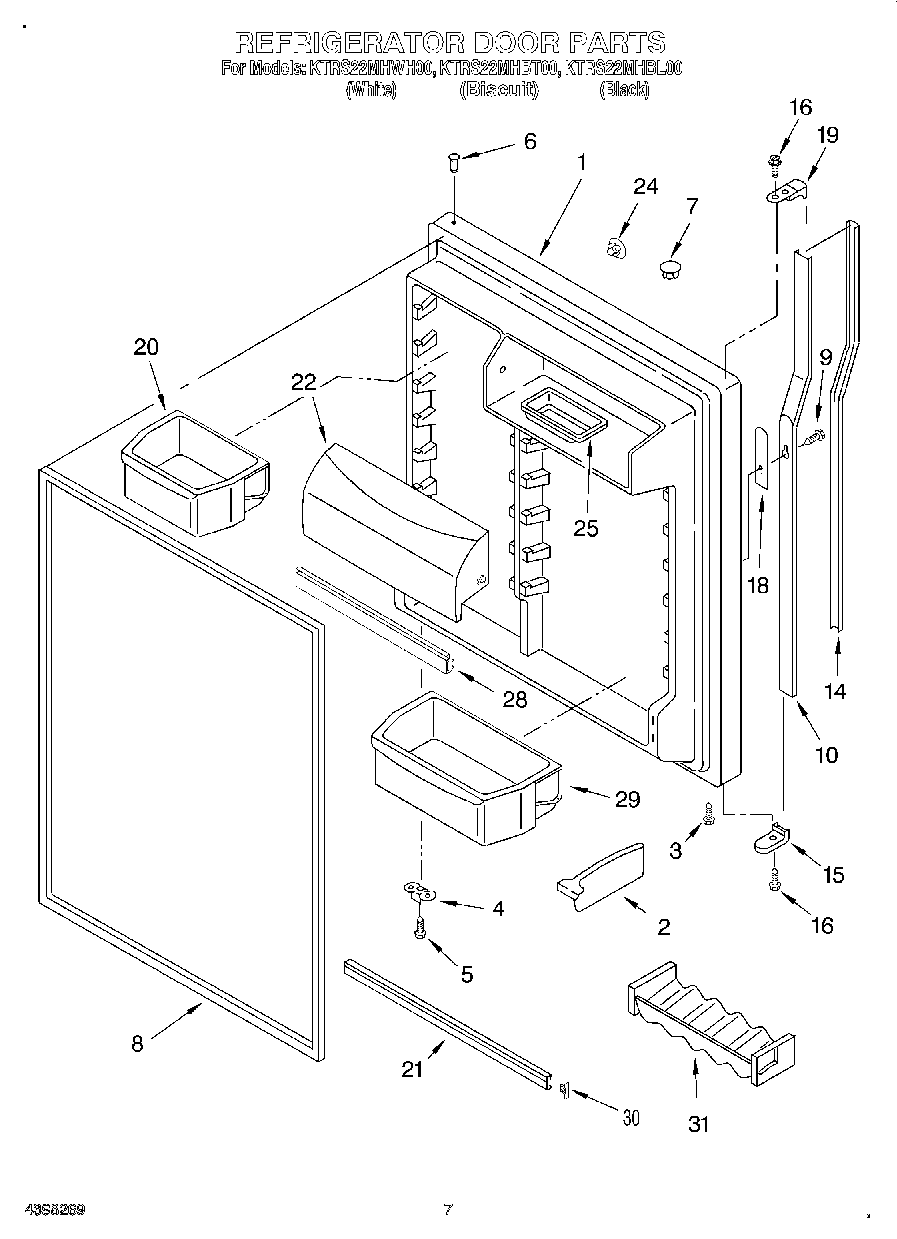

KTRS22MHWH00 04 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes No.6 & No.8) (Biscuit)
1Refrigerator Door (Includes No.8) (White)
1Refrigerator Door (Includes No.8) (Black)
2Divider-Door
3WP8281206 Whirlpool Refrigerator Screw
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7WP2212649 Whirlpool Refrigerator Button Plug
7WP2212651 Whirlpool Refrigerator Button Plug
82159061 Whirlpool Refrigerator Door Gasket
82177311 Whirlpool Refrigerator Magnetic Door Gasket
9Screw
10Retainer, Insert (Black)
10Retainer, Insert (Biscuit)
10Retainer, Insert (White)
14Insert, Handle (Biscuit)
14Insert, Handle (White)
14Insert, Handle (Black)
15Endcap, Handle (Black)
15Endcap, Handle (White)
15Endcap, Bottom (Biscuit)
16WP489357 Whirlpool Recessed Screw
18Spacer
19End Cap (Black)
19Endcap
19Endcap (Biscuit)
20Bin, Door Shelf (2)
21WPW10421486 Whirlpool Refrigerator Door Trim
22WP2313637 Whirlpool Cutting Grid Assembly
24WP2200936 Whirlpool Refrigerator Handle Plug
24WP2189009 Whirlpool Refrigerator Handle Plug
24WP2189000 Whirlpool Refrigerator Handle Plug
25Butter Tray
28Gasket, Door Compartment
29Bin, Door Shelf
30WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31Beverage Holder
100Featurepak (Includes 3, 20, 21, 22, 23, 28, 29, 30 & 31. See also Shelf Parts and Freezer Door Parts
