KTRS22QAAL00 05 – SHELF, LIT/OPTIONAL

KTRS22QAAL00 05 – SHELF, LIT/OPTIONAL

Written by

in

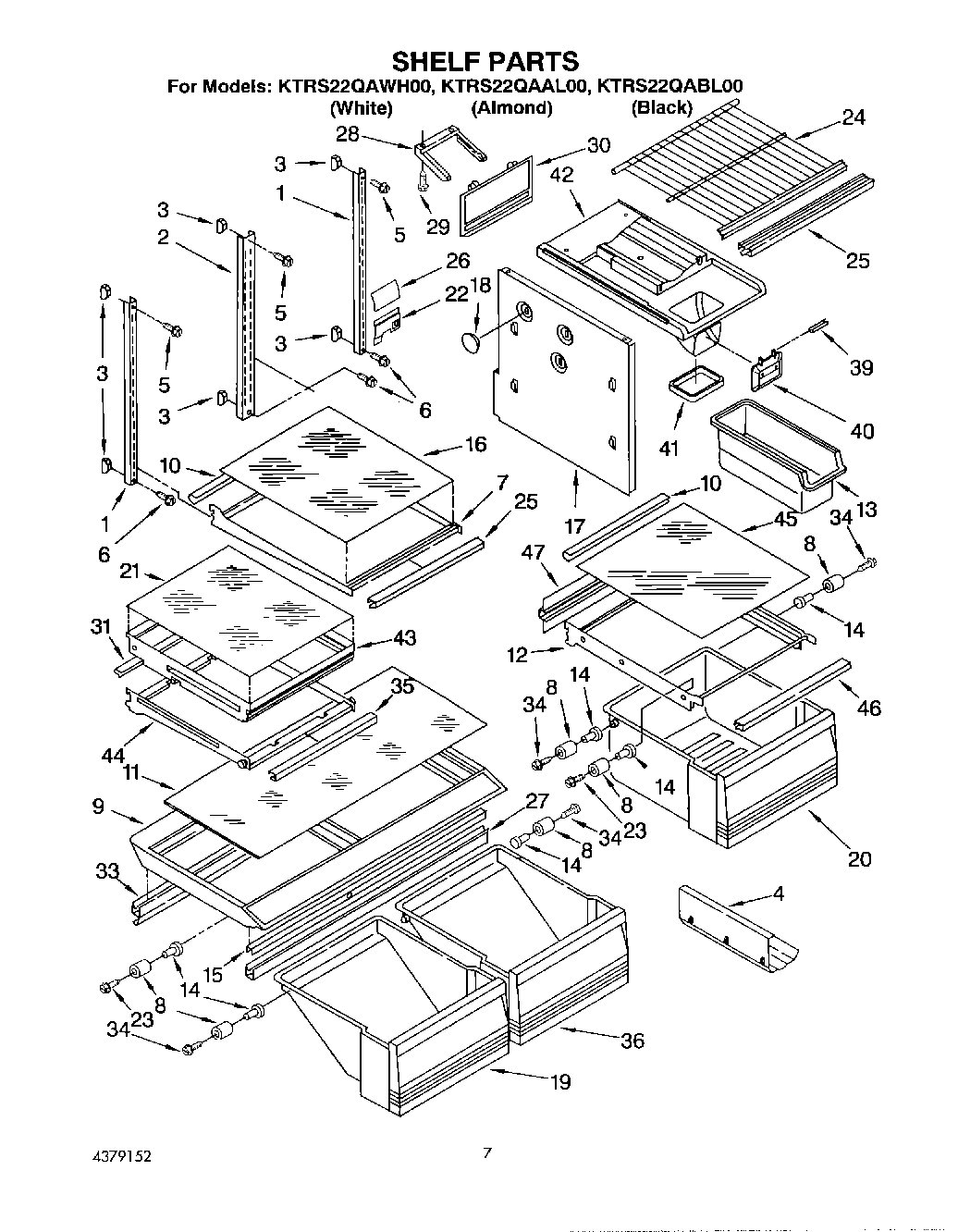

KTRS22QAAL00 05 – SHELF, LIT/OPTIONAL

Products

PositionProduct
Torx Key
WPL LIT2168556
Modular Icemaker Service Sheet
WPL LIT2168564
WPL LIT2160774
1Shelf, Ladder (2)
2Shelf, Ladder Center
3520965 Whirlpool Refrigerator Support
4Wine & Egg Rack
5Screw (3)
6WP488163 Whirlpool Refrigerator Screw
7Shelf, Cantilever (2)
8Roller
9Crisper Cover (Includes Rollers)
10Retainer, Glass
11Glass, Crisper Cover
12Pan Shelf & Roller Assembly
13WP982704 Whirlpool Refrigerator Container
14Eyelet, Roller
15WP2172748 Whirlpool Drawer Support
16Glass, Shelf
17Support Wall I/M
18Anchor-Screw I/M
19Pan, Utility
20Meat Pan Assy.
21Glass
22Baffle-Air, I/M
23WP489261 Whirlpool Refrigerator Screw
24Shelf, Freezer (Top) (2)
25Gasket (Front)
26Gasket, Baffle I/M
27WP1125528 Whirlpool Refrigerator Gasket
28Slide, Ice Door
29WP489478 Whirlpool Refrigerator Screw
302171712 Whirlpool Refrigerator Ice Door
31Reflector, Shelf
33Gasket, Pan Cover-Rear
35Gasket (Front)
36Crisper, Pan Front
39Roll Pin
40Door-Platform
41Gasket-Platform
42Platform-Ice Container
43Frame & Roller Assembly
44Frame & Roller Assembly
45Glass, Shelf
46Gasket, Front
47TAPE, VINYL (3/4 X 108“)
47WP72107 Whirlpool Touchup
47350930 Whirlpool White Spray Paint
47799344 Whirlpool Refrigerator Paint
4772017 Whirlpool Appliance Touch-Up Paint White
47350956 Whirlpool Spray Assembly
47285006 Whirlpool Spray
4772032 Whirlpool Touch Up Paint Black
47Gasket, Rear
47Almond (Uncut)
47212643 Whirlpool Refrigerator Permagum Sealer
47350942 Whirlpool Spray Paint
47CEMENT, ALUMILASTIC (1 1/4 OZ.)
47WP542638 Whirlpool Refrigerator Grease
47WPL 799833
47WP505587 Whirlpool Refrigerator Sealer
47WP503695 Whirlpool Refrigerator Sealer
47WPL 876029
47833938 Whirlpool Refrigerator Terminal
47606755 Whirlpool Refrigerator Bag
47511873 Whirlpool Refrigerator Paint
47876370 Whirlpool Refrigerator Insulation
