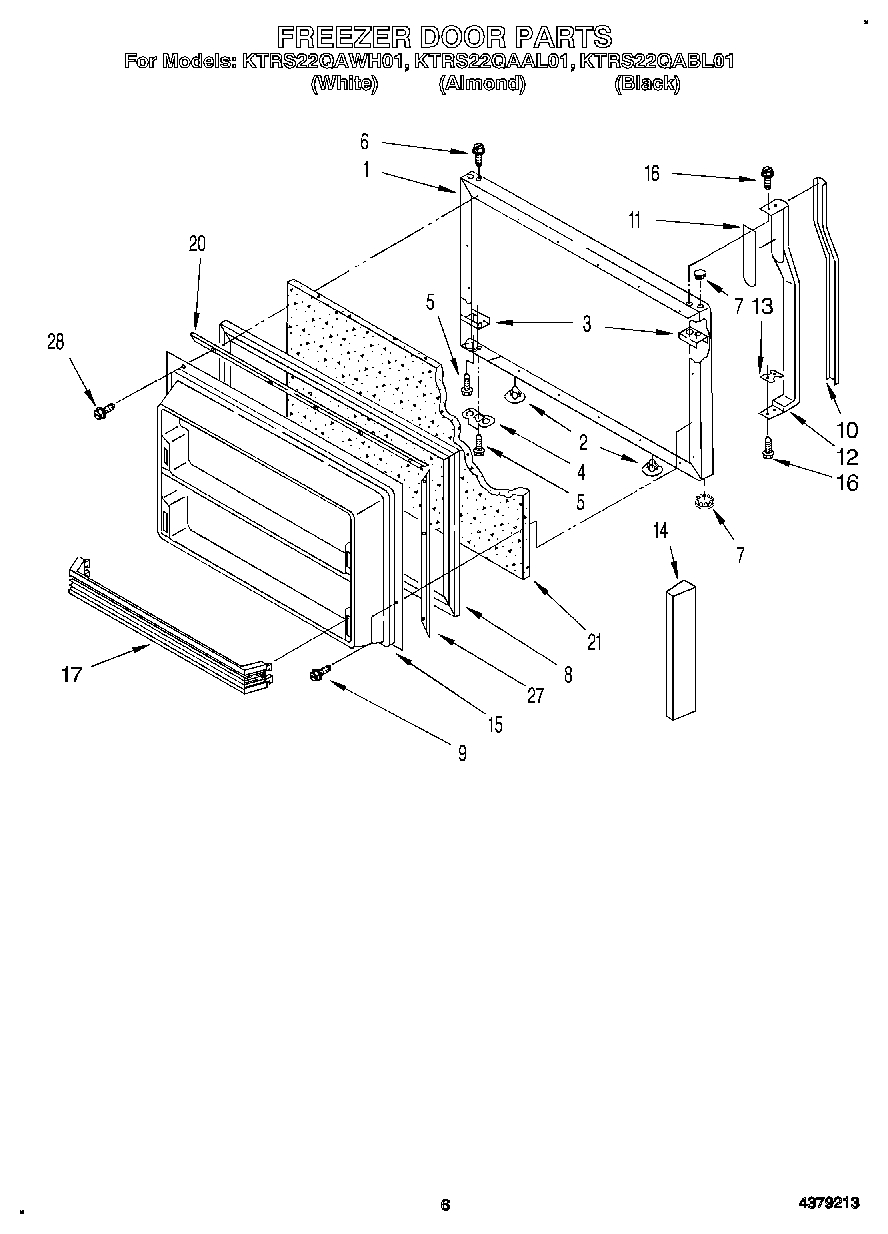

KTRS22QAAL01 04 – FREEZER DOOR

Products

PositionProduct
1Panel, Freezer Door (Also Order Item 21) (White)
1Panel, Freezer Door (Also Order Item 21) (Black)
1Panel, Freezer Door (Also Order Item 21) (Almond)
2Hole Plug (2)
2Hole Plug (2) (Almond)
2Hole Plug (2) (Black)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
7Hole Plug (Almond)
7WP2212651 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82188460A Whirlpool Refrigerator Door Gasket
9WP489069 Whirlpool Compactor Screw
10Insert, Handle (White)
10Insert, Handle (Almond)
10Insert, Handle (Black)
11Spacer, Handle
12Handle
13Shim, Bottom
14Dike, Door (2)
15Interior Door Panel
16WP488920 Whirlpool Refrigerator Screw
17Shelf Bin, Fixed
20Gasket Retainer, Top & Bottom
21WPL 876029
27Retainer, Gasket
28WP488729 Whirlpool Refrigerator Door Screw
