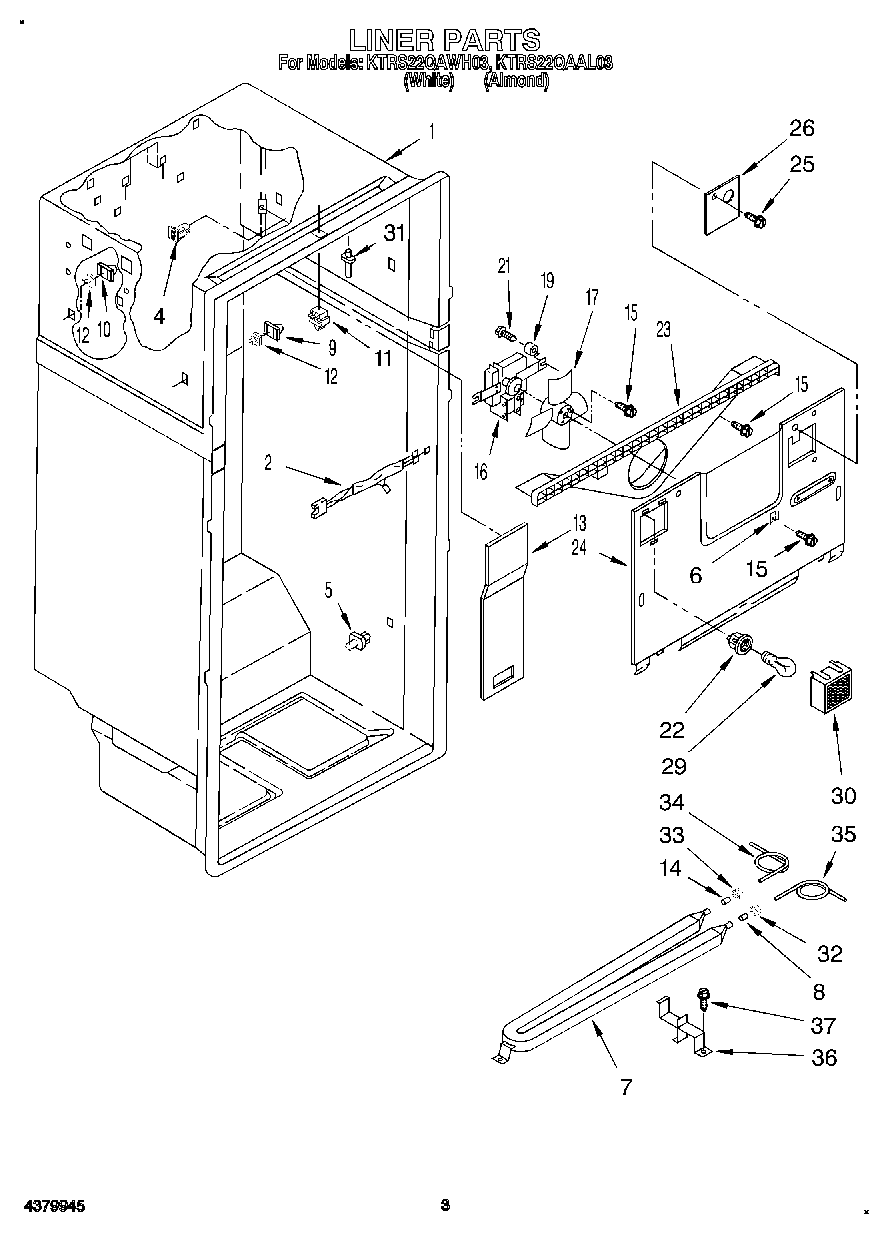

KTRS22QAAL03 02 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Wiring, Fan Motor
4	Grommet (2)
5	W10854959 Whirlpool Refrigerator Shelf Stud
6	WP939101 Whirlpool Refrigerator Plate
7	Reservoir-Water
8	4387491 Whirlpool Refrigerator Insert
9	Stud, Front R.S.
10	819091 Whirlpool Refrigerator Shelf Stud
11	W11457217 Whirlpool Refrigerator Rocker Switch Combination
12	Stud, Support
13	Cover, Air Duct
14	Insert, Tube
15	WP489478 Whirlpool Refrigerator Screw
16	482731 Whirlpool Refrigerator Evaporator Fan Motor Kit
17	WP1100938 Whirlpool Refrigerator Fan Blade
19	Grommet
21	Screw (2)
22	SOCKET
23	Scroll, Fan
24	Evaporator Cover
25	WP488729 Whirlpool Refrigerator Door Screw
26	WP2217784 Whirlpool Refrigerator Cover
29	4396822 Whirlpool Refrigerator Light Bulb
30	Light Lens
31	WP2149540 Whirlpool Shelf Support
32	Nut, Compression
33	Nut, Compression
34	W10823511 Whirlpool Refrigerator Water Tube
35	Tube, Water
36	Bracket, Water Reservoir
37	Screw (2)
