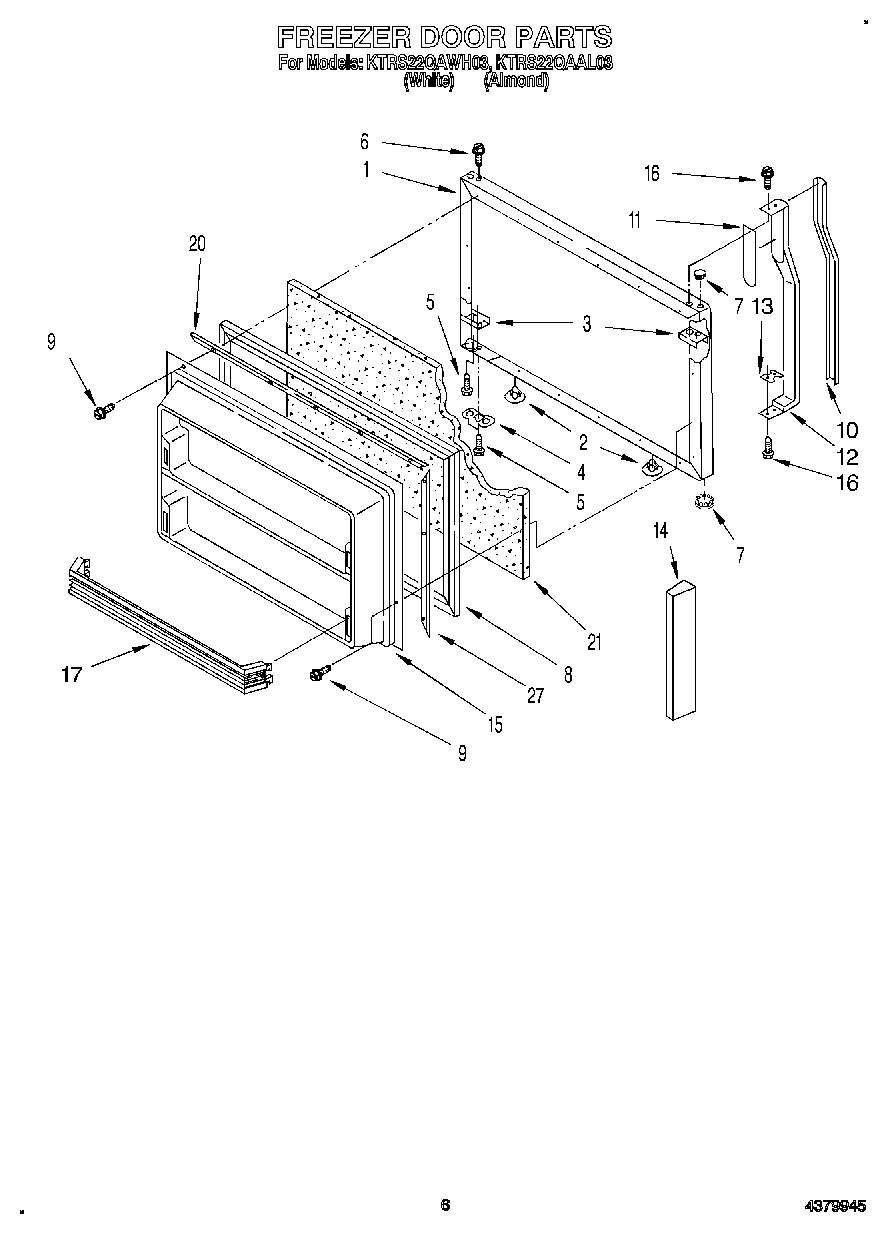

KTRS22QAWH03 04 – FREEZER DOOR

Products

Position	Product
1	Panel, Freezer Door (Also Order Item 21) (Almond)
1	Panel, Freezer Door (Also Order Item 21) (White)
2	Hole Plug (2)
2	Hole Plug (2) (Almond)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2188460A Whirlpool Refrigerator Door Gasket
9	WP489442 Whirlpool Refrigerator Screw
10	Insert, Handle (Almond)
10	Insert, Handle (White)
11	Spacer, Handle
12	Handle
13	Shim, Bottom
14	Dike, Door (2)
15	Interior Door Panel
16	WP488920 Whirlpool Refrigerator Screw
17	Shelf Bin (2)
20	Gasket Retainer, Top & Bottom
21	WPL 876029
27	Retainer, Gasket
