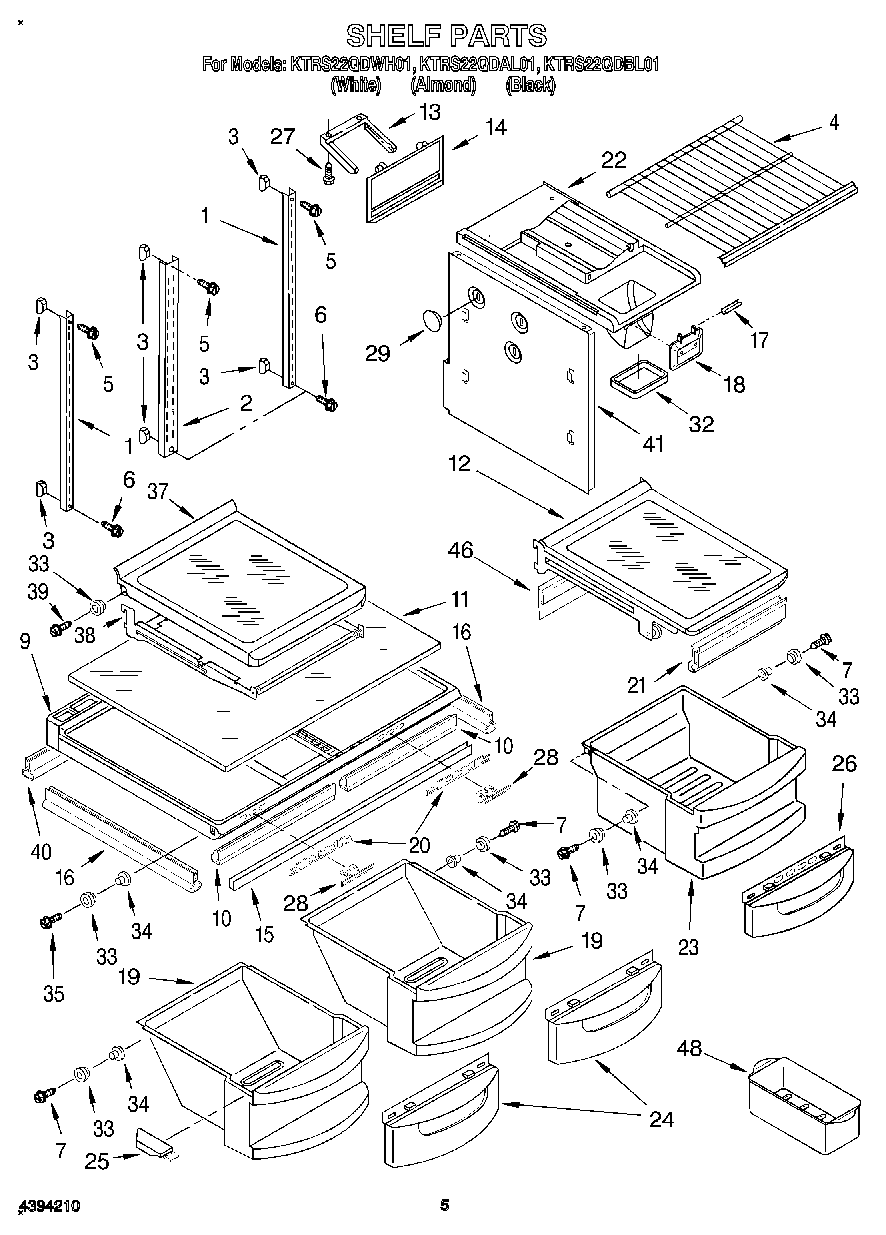

KTRS22QDAL01 03 – SHELF

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
4	Shelf, Freezer (Top) (2)
5	Screw (3)
6	WP489474 Whirlpool Refrigerator Screw
7	WP489261 Whirlpool Refrigerator Screw
9	Pan Cover & Roller Assembly
10	WP1125528 Whirlpool Refrigerator Gasket
11	Glass, Crisper Cover
12	Pan Shelf & Roller Assembly
13	Slide, Ice Door
14	2171712 Whirlpool Refrigerator Ice Door
15	WP2172748 Whirlpool Drawer Support
16	Gasket, Pan Cover (Side)
17	Roll Pin
18	Door-Platform
19	Pan, Crisper (Includes Rollers)
20	Slide, Humidity
21	Gasket-Front
22	Platform-Ice Container
23	Meat Pan Assy.
24	Window, Crisper Pan
25	Cap, Crisper (Right Side)
25	Cap, Crisper (Left Side)
26	Window, Meat Pan
27	WP489478 Whirlpool Refrigerator Screw
28	Button, Humidity Control
32	Gasket-Platform
33	Roller
34	Eyelet, Roller
35	WPW10272364 Whirlpool Refrigerator Screw
37	Shelf, Spillguard
38	Frame & Roller Assembly
39	Screw
40	Gasket, Pan Cover-Rear
41	Support Wall I/M
42	Anchor-Screw I/M
46	Gasket-Rear
48	W10136387A Whirlpool Refrigerator Egg Container
