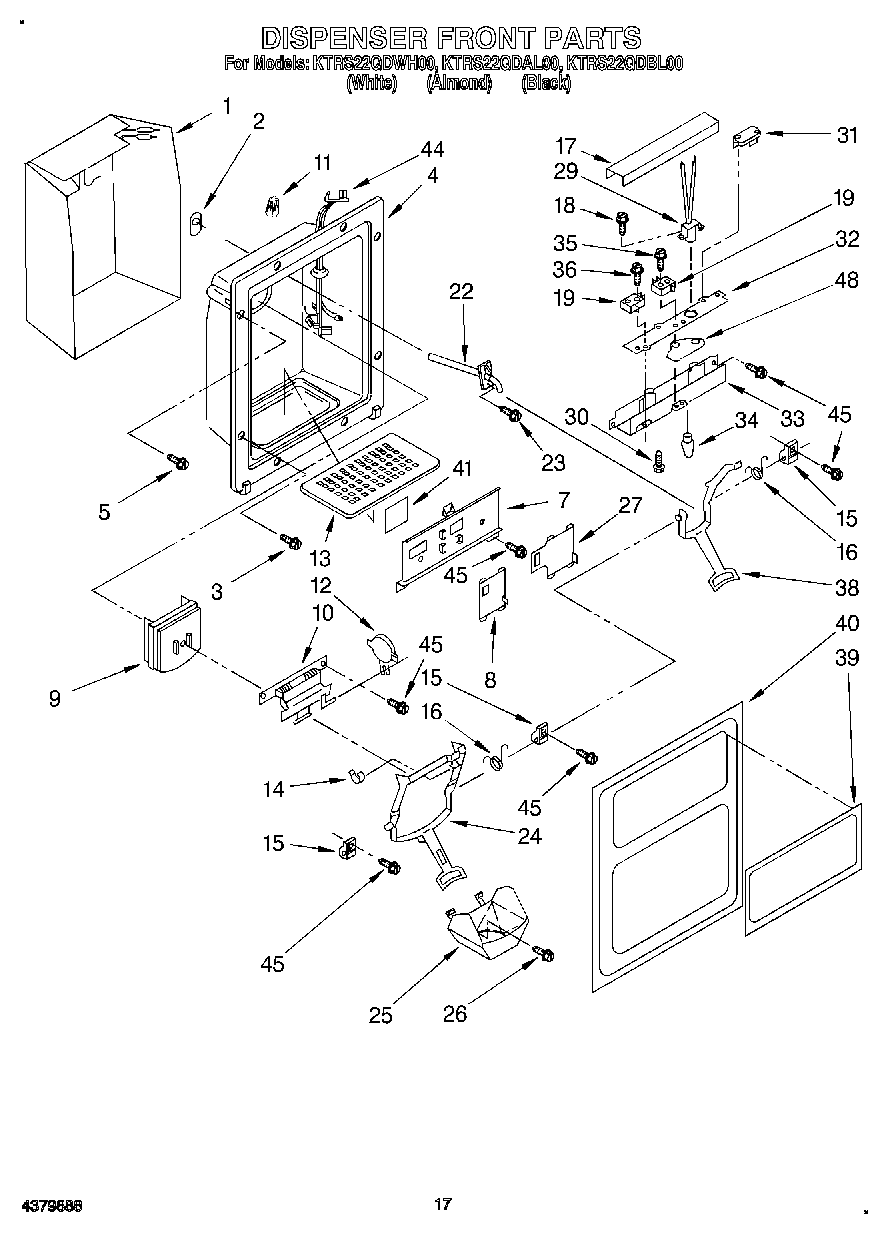

KTRS22QDWH00 10 – DISPENSER FRONT, LIT/OPTIONAL

KTRS22QDWH00 10 – DISPENSER FRONT, LIT/OPTIONAL

Written by

in

KTRS22QDWH00 10 – DISPENSER FRONT, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2176905
	WPL LIT2180034
	WPL LIT2169005
	Modular Icemaker Service Sheet
	Torx Key
1	Heater, Dispenser
2	Grommet
3	WP488729 Whirlpool Refrigerator Door Screw
4	Housing, Dispenser
4	Housing Dispenser (For Almond Model)
4	Housing, Dispenser
5	W11693756 Whirlpool Screw Assembly
7	Frame, Slides
7	Frame, Slides
7	Frame, Slides (Almond)
8	Slide, Cube/Crush Switch
8	Slide, Cube/Crush Switch (Almond)
8	Slide, Cube/Crush Switch
9	Door, Ice
10	Door Mechanism Assembly (Includes Item 9)
11	Wire Connector
12	WP1120581 Whirlpool Refrigerator Mechanism
13	Grille, Overflow (Almond)
13	Grille, Overflow
13	Grille, Overflow (White)
14	Clip, Bearing (2)
15	Bearing, Lever (3)
16	Spring, Lever (2)
17	Shield, Wiring
18	WP489128 Whirlpool Refrigerator Screw
19	814037 Whirlpool Microwave Switch
22	WP4388152 Whirlpool Refrigerator Fitting
24	Lever, Ice Dispenser (White)
24	Lever, Ice Dispenser (Almond)
24	Lever, Ice Dispenser
25	Guide, Ice
25	Guide, Ice
25	Guide, Ice (Almond)
26	Screw
26	Screw
27	Slide, Light Switch
27	Slide, Light Switch (Almond)
27	Slide, Light Switch
29	Lamp Holder
30	Screw, 4-40 x 1
31	WP2162361 Whirlpool Switch
32	Insulator, Control Bracket
33	Bracket, Control
34	WP22002263 Whirlpool Dryer 10W Light Bulb
35	Screw
36	Screw,
38	Lever, Water Dispenser
38	Lever Assembly, Water Dispenser (Black)
38	WPL 2177152
39	WPL 2174338
39	WPL 2174337
39	WPL 2174336
40	WPL 2179386
40	WPL 2179385
40	WPL 2179384
41	Heat Shield, Frame
44	Wiring Harness, Door
45	WP3400906 Whirlpool Refrigerator Screw
48	WPL 876029
48	72017 Whirlpool Appliance Touch-Up Paint White
48	WPL 799833
48	350956 Whirlpool Spray Assembly
48	350930 Whirlpool White Spray Paint
48	72032 Whirlpool Touch Up Paint Black
48	833938 Whirlpool Refrigerator Terminal
48	Spacer, Switch (2)
48	Door Reversal Instructions
48	799344 Whirlpool Refrigerator Paint
48	WP72107 Whirlpool Touchup
48	CEMENT, ALUMILASTIC (1 1/4 OZ.)
48	TAPE, VINYL (3/4 X 108“)
48	WP505587 Whirlpool Refrigerator Sealer
48	WP503695 Whirlpool Refrigerator Sealer
48	876370 Whirlpool Refrigerator Insulation
48	285006 Whirlpool Spray
48	511873 Whirlpool Refrigerator Paint
48	350942 Whirlpool Spray Paint
48	212643 Whirlpool Refrigerator Permagum Sealer
48	Almond (Uncut)
48	WP542638 Whirlpool Refrigerator Grease
48	606755 Whirlpool Refrigerator Bag
