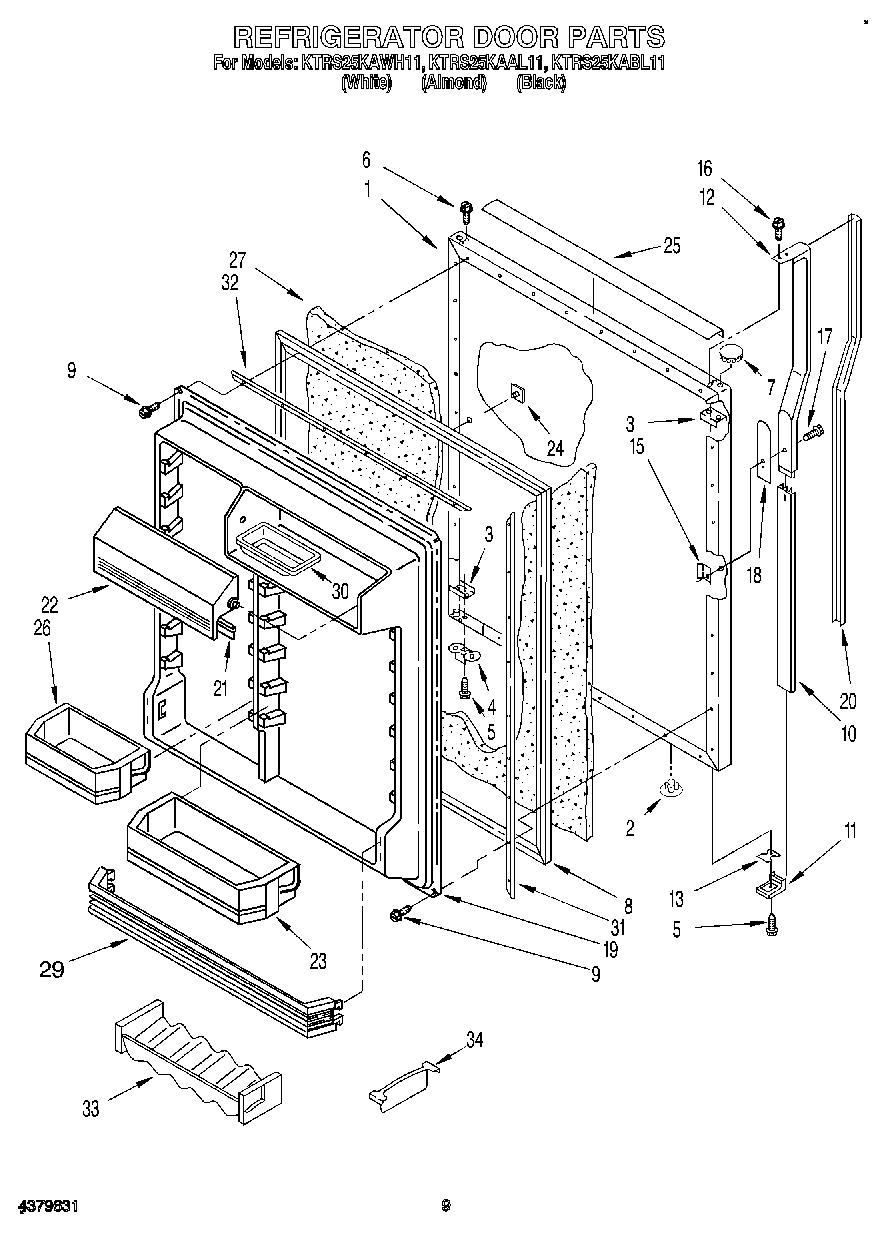

KTRS25KAAL11 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Panel, Refrigerator Door (Includes Insulation) (Black)
1	Panel, Refrigerator Door (White)
1	Panel, Refrigerator Door (Almond (Also Order Item 27))
2	Hole Plug (2) (Almond)
2	Hole Plug (2) (Black)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
7	WP2212651 Whirlpool Refrigerator Button Plug
8	Door Gasket, Magnetic
9	WP489442 Whirlpool Refrigerator Screw
10	Retainer, Insert
11	Handle End
12	Handle
13	Shim, Bottom
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	Spacer, Handle
19	Interior Door Panel
20	Insert, Handle (Almond)
20	Insert, Handle (White)
20	Insert, Handle (Black)
21	Gasket, Utility Door
22	Compartment Door,
23	Bin, Door Shelf Deep. Wide
24	Hole Plug, Handle (Almond)
24	WP2189000 Whirlpool Refrigerator Handle Plug
24	WP2189009 Whirlpool Refrigerator Handle Plug
25	Trim, Door
26	Shelf Bin (3)
27	WPL 876029
29	Shelf Bin, Fixed
30	Butter, Tray
31	Retainer, Gasket
32	Retainer, Gasket
33	WPL 1125981
34	WPL 1117999
