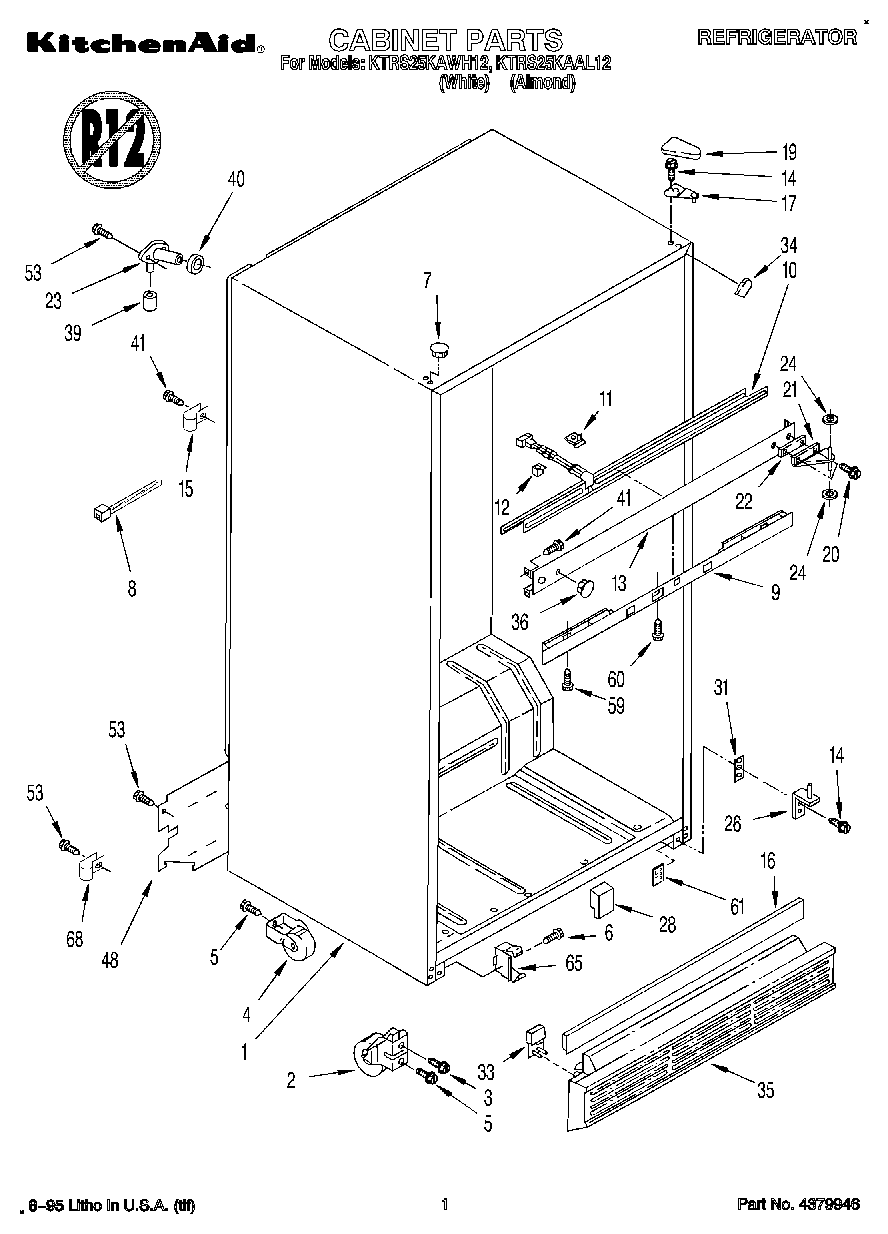

KTRS25KAAL12 01 – CABINETadmin2025-04-26T12:43:06+00:00KTRS25KAAL12 01 – CABINET
Products
| Position | Product |
|---|
| 1 | Cabinet (Not A Serviceable Part) |
| 2 | Roller, Front |
| 3 | Screw |
| 4 | WPW10250570 Whirlpool Refrigerator Cabinet Roller |
| 5 | WP489427 Whirlpool Refrigerator Screw |
| 7 | WP2151652 Whirlpool Refrigerator Button Plug |
| 7 | Hole Plug (6) (Almond) |
| 8 | WPW10339879 Whirlpool Wire Tie |
| 9 | Control, Front Cover |
| 10 | Heater, Mullion |
| 11 | Clip, Mullion (3) |
| 12 | Spacer (3) |
| 13 | Center Rail (White) |
| 15 | WP488366 Whirlpool Refrigerator Clamp |
| 16 | Deck Rail Cover |
| 17 | WP2189412 Whirlpool Refrigerator Door Hinge |
| 19 | Cover, Hinge (Almond) |
| 19 | WP2213360 Whirlpool Refrigerator Cover |
| 20 | WP999367 Whirlpool Refrigerator Screw |
| 21 | Hinge, Center |
| 22 | Shim, Hinge Center |
| 23 | WP2196157 Whirlpool Fill Tube |
| 24 | WP487802 Whirlpool Refrigerator Washer |
| 26 | WP2254473 Whirlpool Refrigerator Door Hinge |
| 28 | Insert, Air Baffle |
| 31 | Spacer |
| 33 | Corner Filler, Grille (Almond) |
| 33 | Corner Filler, Grille (White) |
| 34 | Filler, Wrapper Corner (2) (Almond) |
| 34 | Filler, Wrapper Corner (2) (White) |
| 35 | Grille (White) |
| 35 | Grille (Almond) |
| 36 | Hole Plug (4) (White) |
| 39 | WP487996 Whirlpool Refrigerator Cap Tube |
| 40 | WP1106508 Whirlpool Refrigerator Gasket |
| 41 | WP489478 Whirlpool Refrigerator Screw |
| 48 | Cover, Unit |
| 59 | WP488163 Whirlpool Refrigerator Screw |
| 60 | WP489174 Whirlpool Refrigerator Screw |
| 61 | Tap-Plate, Bottom Hinge |
| 65 | WP2155013 Whirlpool Refrigerator Clip |
| 68 | 549193 Whirlpool Refrigerator Power Clamp |
