KTRS25KABL00 04 – SHELF, LIT/OPTIONAL

KTRS25KABL00 04 – SHELF, LIT/OPTIONAL

Written by

in

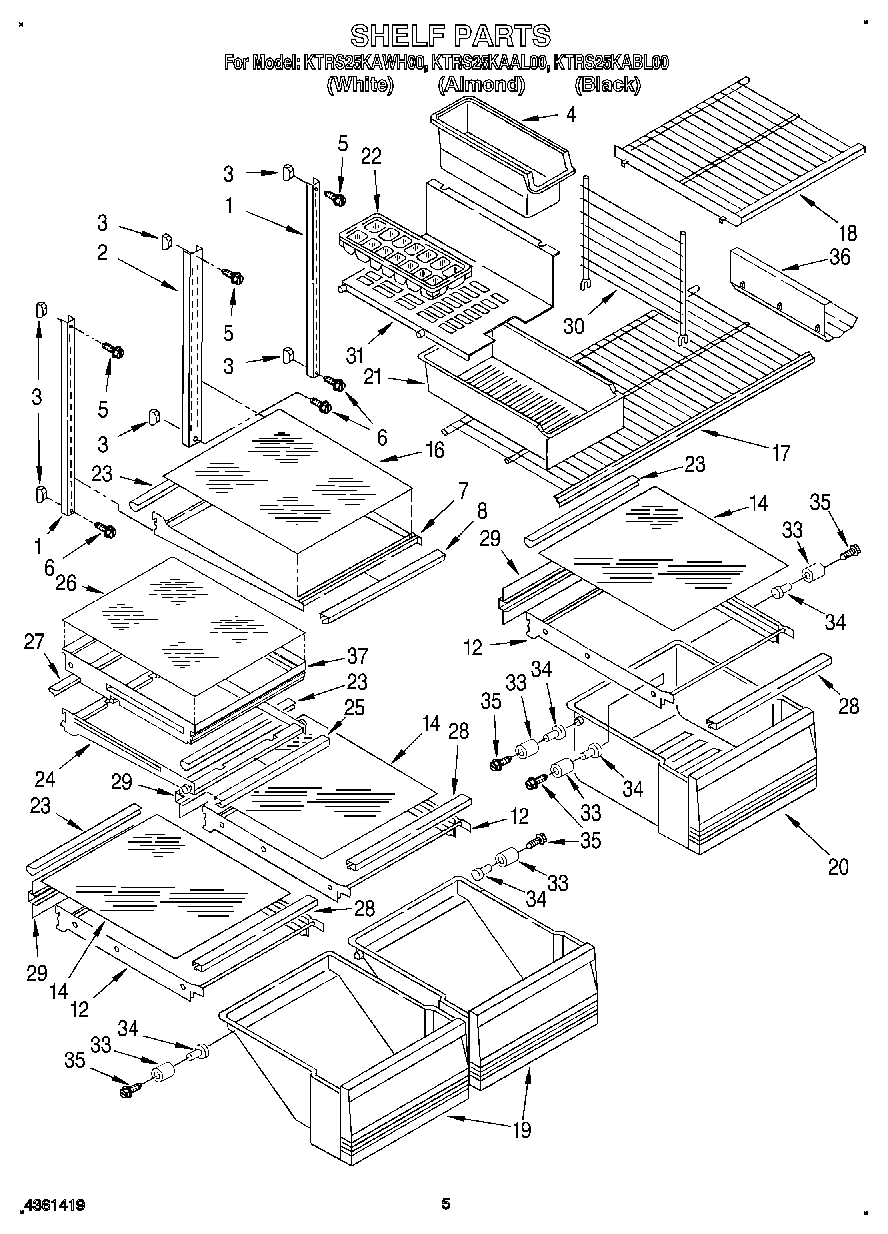

KTRS25KABL00 04 – SHELF, LIT/OPTIONAL

Products

Position	Product
	1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
	Torx Key
	WPL LIT2154861
	WPL LIT2161695
	WPL LIT2168630
1	Shelf, Ladder (2)
2	Shelf Ladder, Center
3	520965 Whirlpool Refrigerator Support
4	WP982704 Whirlpool Refrigerator Container
5	Screw (3)
6	WP488163 Whirlpool Refrigerator Screw
7	Shelf, Cantilever (2)
8	Gasket (Front)
12	Pan Shelf, Slide Assembly (3)
14	Glass, Shelf
16	Glass, Shelf
17	Shelf, Freezer
18	Shelf, Freezer
19	Crisper Pan (2) Roller Assembly
20	Meat Pan Roller Assembly
21	PAN-ICE
22	WP841180A Whirlpool Microwave Glass Turntable Tray
23	Retainer, Shelf
24	Frame & Roller Assembly
25	Gasket (Front)
26	Glass, Shelf
27	Retainer, Shelf
28	Gasket (Front)
29	Gasket, Rear
30	Divider
31	Shelf, Ice Tray
33	Roller
34	Eyelet, Roller
35	WP489261 Whirlpool Refrigerator Screw
36	Wine & Egg Rack
37	212643 Whirlpool Refrigerator Permagum Sealer
37	Leveler (Thinner)
37	Almond (Uncut)
37	350942 Whirlpool Spray Paint
37	WP72107 Whirlpool Touchup
37	799344 Whirlpool Refrigerator Paint
37	72017 Whirlpool Appliance Touch-Up Paint White
37	350956 Whirlpool Spray Assembly
37	350930 Whirlpool White Spray Paint
37	Door Reversal Instructions
37	511873 Whirlpool Refrigerator Paint
37	606755 Whirlpool Refrigerator Bag
37	833938 Whirlpool Refrigerator Terminal
37	72032 Whirlpool Touch Up Paint Black
37	285006 Whirlpool Spray
37	WPL 876029
37	WPL 799833
37	CEMENT, ALUMILASTIC (1 1/4 OZ.)
37	TAPE, VINYL (3/4 X 108“)
37	WP542638 Whirlpool Refrigerator Grease
37	WP505587 Whirlpool Refrigerator Sealer
37	WP503695 Whirlpool Refrigerator Sealer
37	876370 Whirlpool Refrigerator Insulation
37	Frame & Roller Assembly Moveable
