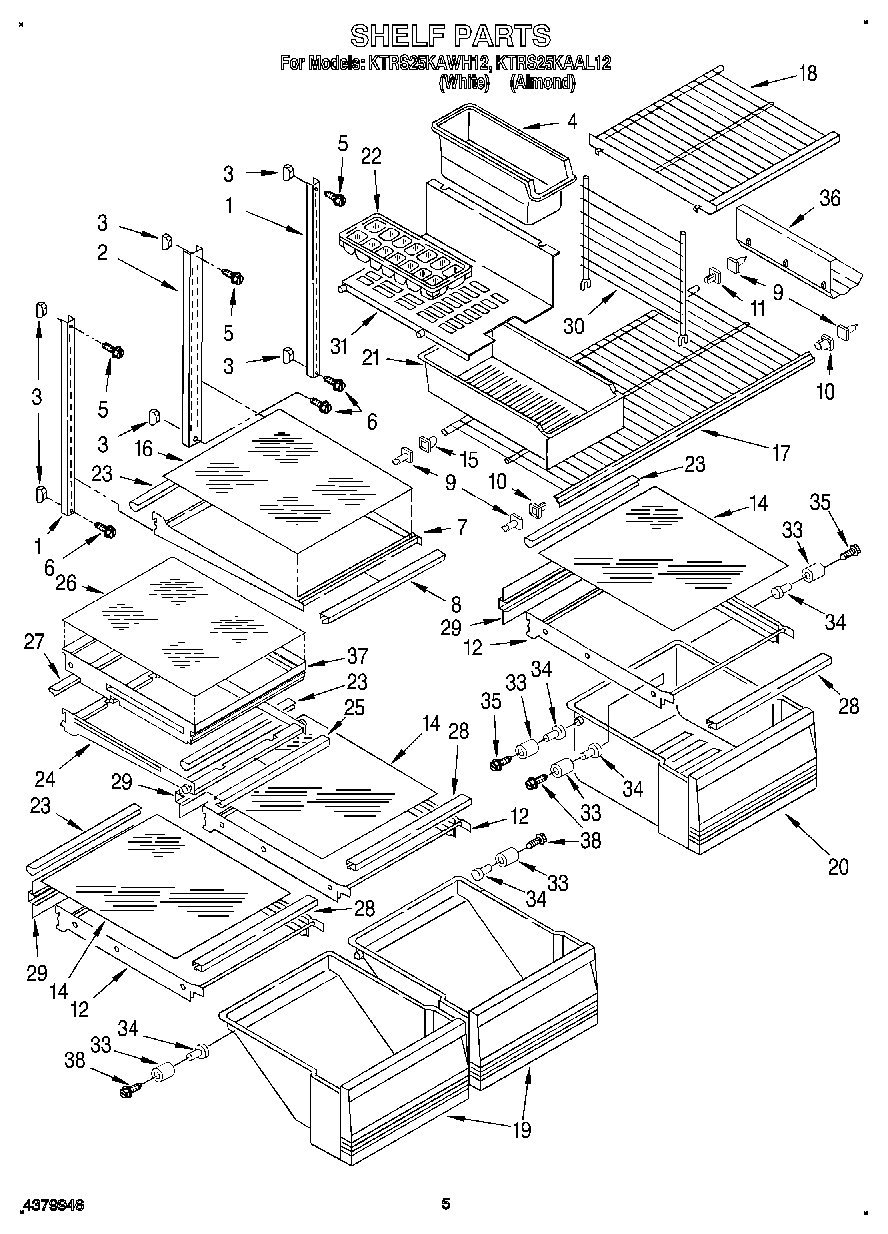

KTRS25KAWH12 04 – SHELF, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2161695
	WPL LIT2176951
	1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
	Torx Key
	WPL LIT2168923
1	Shelf, Ladder (2)
2	Shelf Ladder, Center
3	520965 Whirlpool Refrigerator Support
4	WP982704 Whirlpool Refrigerator Container
5	Screw (3)
6	WP489474 Whirlpool Refrigerator Screw
7	Shelf, Cantilever (2)
8	Gasket (Front)
9	Stud, Support
10	Stud, Front R.S.
11	819091 Whirlpool Refrigerator Shelf Stud
12	Pan Shelf, Slide Assembly (3)
14	Glass, Shelf
16	Glass, Shelf
17	Shelf, Freezer
18	Shelf, Freezer
19	Crisper Pan (2) Roller Assembly
20	Meat Pan Roller Assembly
21	PAN-ICE
22	WP841180A Whirlpool Microwave Glass Turntable Tray
23	Retainer, Shelf
24	Frame & Roller Assembly
25	Gasket (Front)
26	Glass, Shelf
27	Retainer, Shelf
28	Gasket (Front)
29	Gasket, Rear
30	Divider
31	Shelf, Ice Tray
33	Roller
34	Eyelet, Roller
36	Wine & Egg Rack
37	Frame & Roller Assembly Moveable
38	511873 Whirlpool Refrigerator Paint
38	350942 Whirlpool Spray Paint
38	212643 Whirlpool Refrigerator Permagum Sealer
38	350930 Whirlpool White Spray Paint
38	Almond (Uncut)
38	Door Reversal Instructions
38	WP72107 Whirlpool Touchup
38	799344 Whirlpool Refrigerator Paint
38	72017 Whirlpool Appliance Touch-Up Paint White
38	606755 Whirlpool Refrigerator Bag
38	833938 Whirlpool Refrigerator Terminal
38	876370 Whirlpool Refrigerator Insulation
38	WP489261 Whirlpool Refrigerator Screw
38	72032 Whirlpool Touch Up Paint Black
38	285006 Whirlpool Spray
38	WPL 876029
38	WPL 799833
38	CEMENT, ALUMILASTIC (1 1/4 OZ.)
38	TAPE, VINYL (3/4 X 108“)
38	WP542638 Whirlpool Refrigerator Grease
38	WP505587 Whirlpool Refrigerator Sealer
38	WP503695 Whirlpool Refrigerator Sealer
38	350956 Whirlpool Spray Assembly
