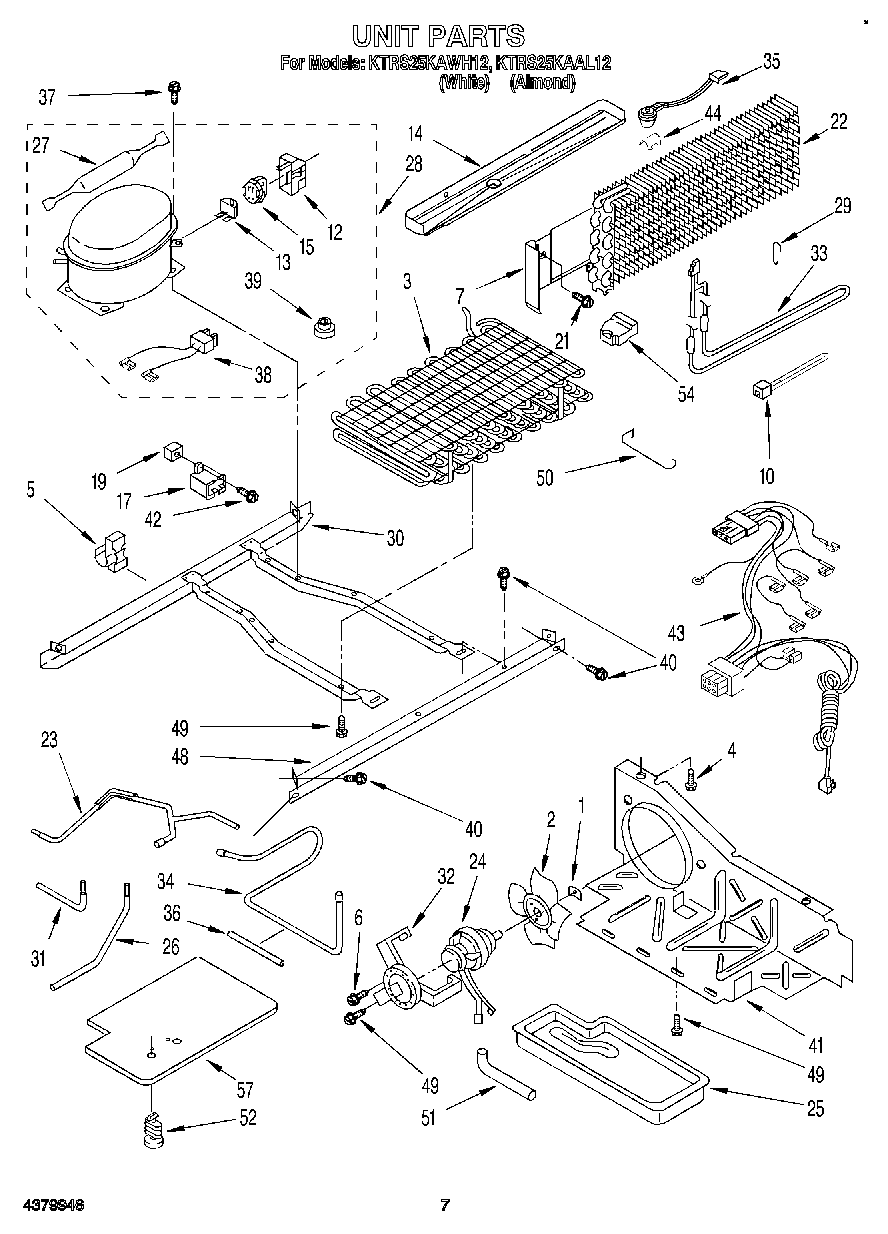

KTRS25KAWH12 05 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Blade, Fan
3	Condenser Assembly
5	Clip, Wire
6	681390 Whirlpool Refrigerator Screw
7	Heat Shield
10	WPW10339879 Whirlpool Wire Tie
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2154697 Whirlpool Refrigerator Overload
14	Drain Pan
15	Relay (See Overload)
17	Capacitor
19	Screw Grommet
21	WP965173 Whirlpool Dishwasher Screw
22	Evaporator
23	Tube, Discharge
24	833697 Whirlpool Condenser Fan Motor
25	Tray, Evaporator
26	Tube, Condenser To Heat Loop
27	W10843121 Whirlpool Refrigerator Tube
28	W10309994 Whirlpool Refrigerator Compressor
28	876765 Whirlpool Primary Mounting Kit Refrigerator
29	Support, Heater
30	2304904 Whirlpool Frame Assembly
31	2154109 Whirlpool Refrigerator Tube
32	Bracket, Motor
33	Heater, Defrost
34	Tube, Suction
35	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
36	SLEEVE
38	WP2172890 Whirlpool Refrigerator Wire
39	876811 Whirlpool Grommet
40	WP489427 Whirlpool Refrigerator Screw
41	Air Baffle
42	W11693756 Whirlpool Screw Assembly
43	Wire Assy
44	9791833 Whirlpool Refrigerator Clip
48	2305374 Whirlpool Refrigerator Unit Rail
49	WP489464 Whirlpool Refrigerator Screw
50	Guard, Fan
51	Drain Extension
52	489396 Whirlpool Refrigerator Clip
54	Wedge, Air Baffle
57	VALVE, ACCESS (5/8“)
57	Cover, Unit Bottom
57	VALVE, ACCESS (1/2“)
57	WP978025 Whirlpool Refrigerator Valve
57	978030 Whirlpool Refrigerator Valve
57	978027 Whirlpool Refrigerator Primary Valve
57	978026 Whirlpool Refrigerator Primary Valve
57	876764 Whirlpool Refrigerator Primary Valve
