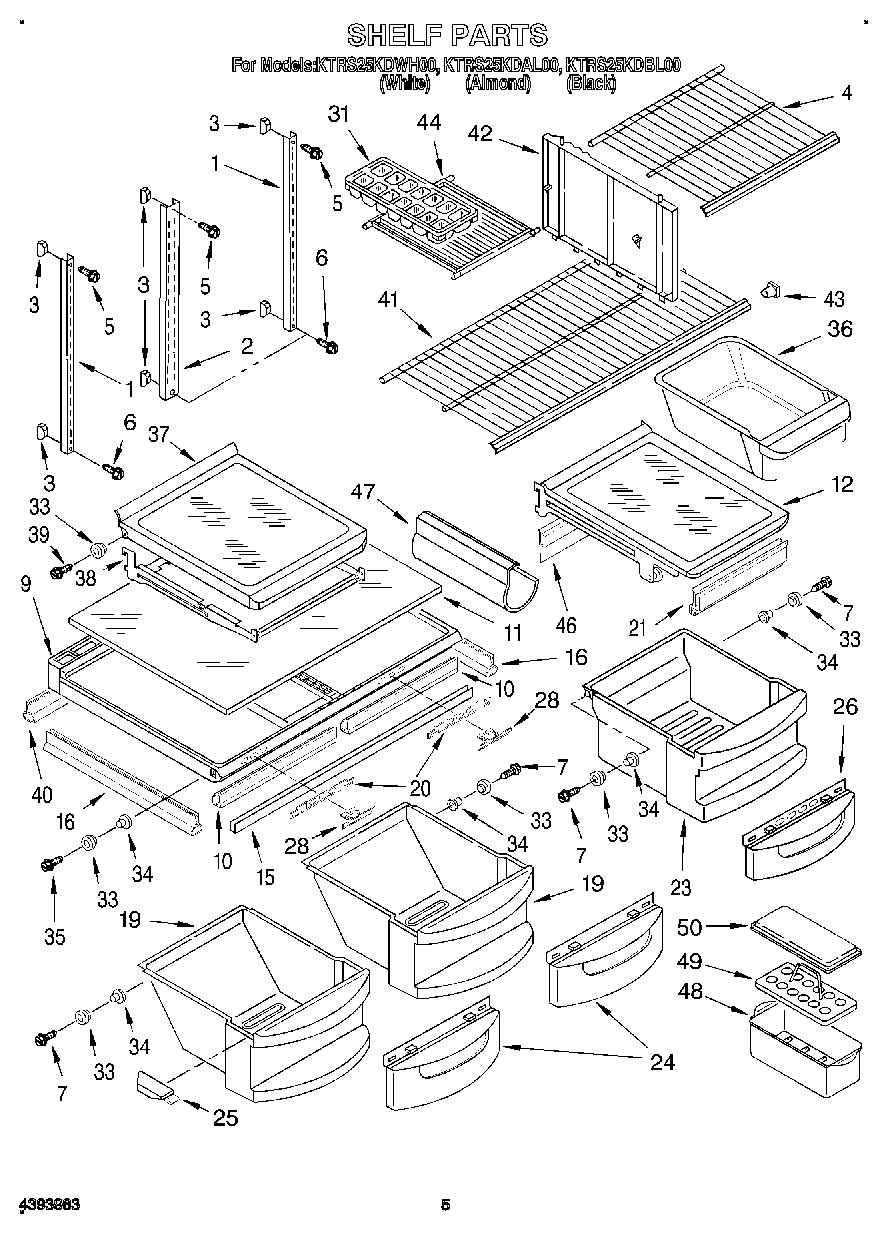

KTRS25KDAL00 03 – SHELF

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf Ladder, Center
3	520965 Whirlpool Refrigerator Support
4	Shelf, Freezer
5	Screw (3)
6	WP489474 Whirlpool Refrigerator Screw
7	WP489261 Whirlpool Refrigerator Screw
9	Pan Cover & Roller Assembly
10	WP1125528 Whirlpool Refrigerator Gasket
11	WPL 2174145
12	Pan Shelf & Roller Assembly
15	WPL 2179449
16	Gasket, Pan Cover (Side)
19	Pan, Crisper (Includes Rollers)
20	Slide, Humidity
21	Gasket-Front
23	Meat Pan
24	Window, Crisper Pan
25	Cap, Crisper (Left Side)
25	Cap, Crisper (Right Side)
26	Window, Meat Pan
28	Button, Humidity Control
31	WP841180A Whirlpool Microwave Glass Turntable Tray
33	Roller
34	Eyelet, Roller
35	WPW10272364 Whirlpool Refrigerator Screw
36	Pan, Ice Cube
37	WPL 2174018
38	WPL 2174020
39	Screw
40	Gasket, Pan Cover-Rear
41	Shelf, Freezer
42	Divider
43	819091 Whirlpool Refrigerator Shelf Stud
44	Shelf, Ice Tray
46	Gasket-Rear
47	W10777924 Whirlpool Refrigerator Wine Rack
48	W10136387A Whirlpool Refrigerator Egg Container
49	WP2177817 Whirlpool Refrigerator Egg Container
50	Cover
