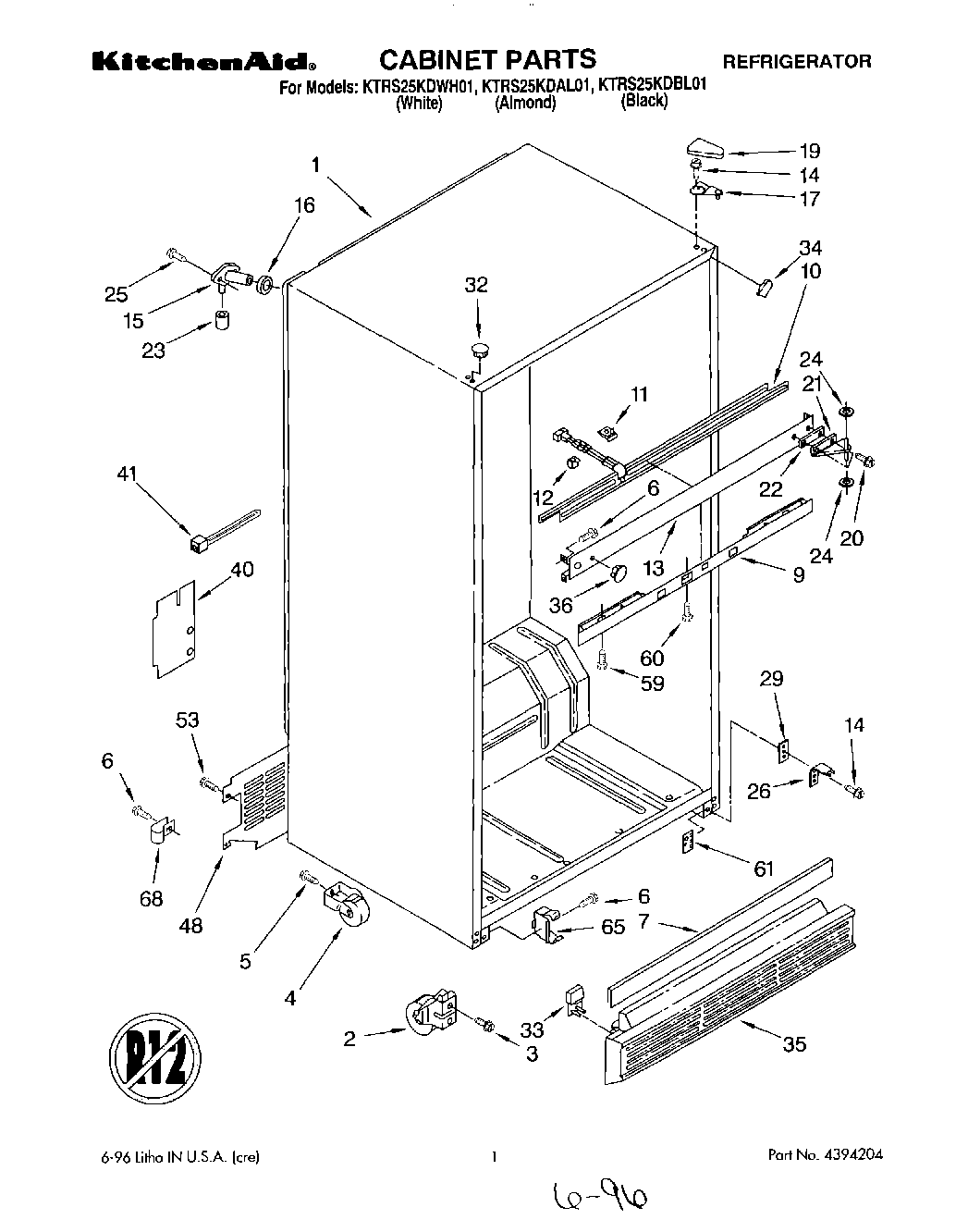

KTRS25KDAL01 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP489478 Whirlpool Refrigerator Screw
7	Deck Rail Cover
9	Control, Front Cover
10	Heater, Mullion
11	Clip, Mullion (3)
12	Spacer (3)
13	Center Rail (White)
13	Center Rail (Black)
15	WP2196157 Whirlpool Fill Tube
16	WP1106508 Whirlpool Refrigerator Gasket
17	WP2189412 Whirlpool Refrigerator Door Hinge
19	WP2213363 Whirlpool Refrigerator Cover
19	WP2213360 Whirlpool Refrigerator Cover
19	Cover, Hinge (Almond)
20	WP999367 Whirlpool Refrigerator Screw
21	Hinge, Center
22	Shim, Hinge Center
23	WP487996 Whirlpool Refrigerator Cap Tube
24	WP487802 Whirlpool Refrigerator Washer
26	WP2254473 Whirlpool Refrigerator Door Hinge
29	Spacer
32	Hole Plug (6) (Almond)
32	WP2183998 Whirlpool Refrigerator Button Plug
32	WP2151652 Whirlpool Refrigerator Button Plug
33	Corner Filler, Grille (White)
33	Corner Filler, Grille (Almond)
33	Corner Filler, Grille
34	Filler, Wrapper Corner (2) (Almond)
34	Filler, Wrapper Corner (2) (White)
34	Filler, Wrap Corner (Black)
35	Grille (Black)
35	Grille (White)
35	Grille (Almond)
36	Hole Plug (4) (White)
40	Cover, Water Valve
41	WPW10339879 Whirlpool Wire Tie
48	Cover, Unit
59	WP488163 Whirlpool Refrigerator Screw
60	WP489174 Whirlpool Refrigerator Screw
61	Tap-Plate, Bottom Hinge
65	WP2155013 Whirlpool Refrigerator Clip
68	549193 Whirlpool Refrigerator Power Clamp
