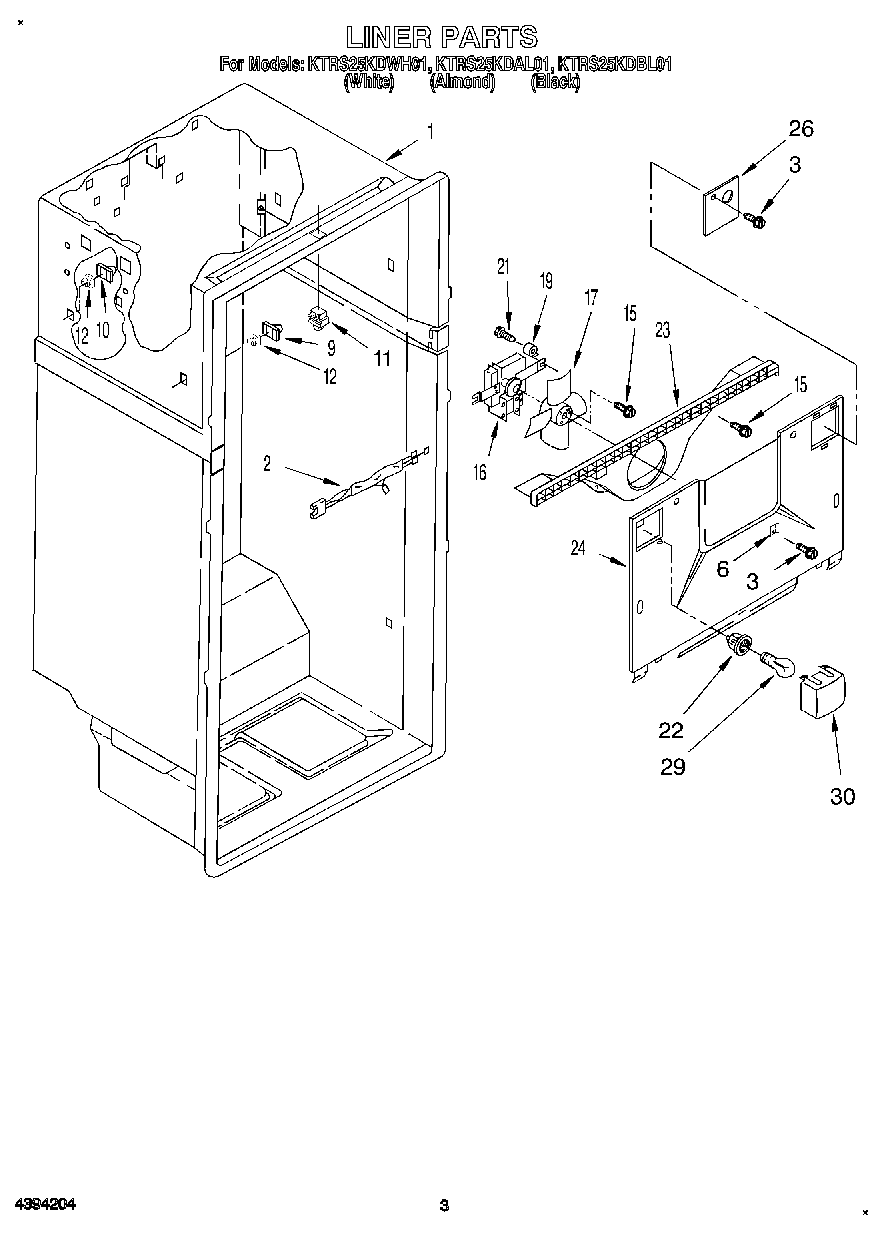

KTRS25KDAL01 02 – LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Wiring, Fan Motor
3WP488729 Whirlpool Refrigerator Door Screw
6WP939101 Whirlpool Refrigerator Plate
9Stud, Front R.S.
10819091 Whirlpool Refrigerator Shelf Stud
11W11384469 Whirlpool Door Switch
12Stud, Support
15WP489478 Whirlpool Refrigerator Screw
16482731 Whirlpool Refrigerator Evaporator Fan Motor Kit
17WP1100938 Whirlpool Refrigerator Fan Blade
19Grommet
21Screw (2)
22SOCKET
23Scroll, Fan
24Evaporator Cover
26WP2217784 Whirlpool Refrigerator Cover
294396822 Whirlpool Refrigerator Light Bulb
30Light Lens
