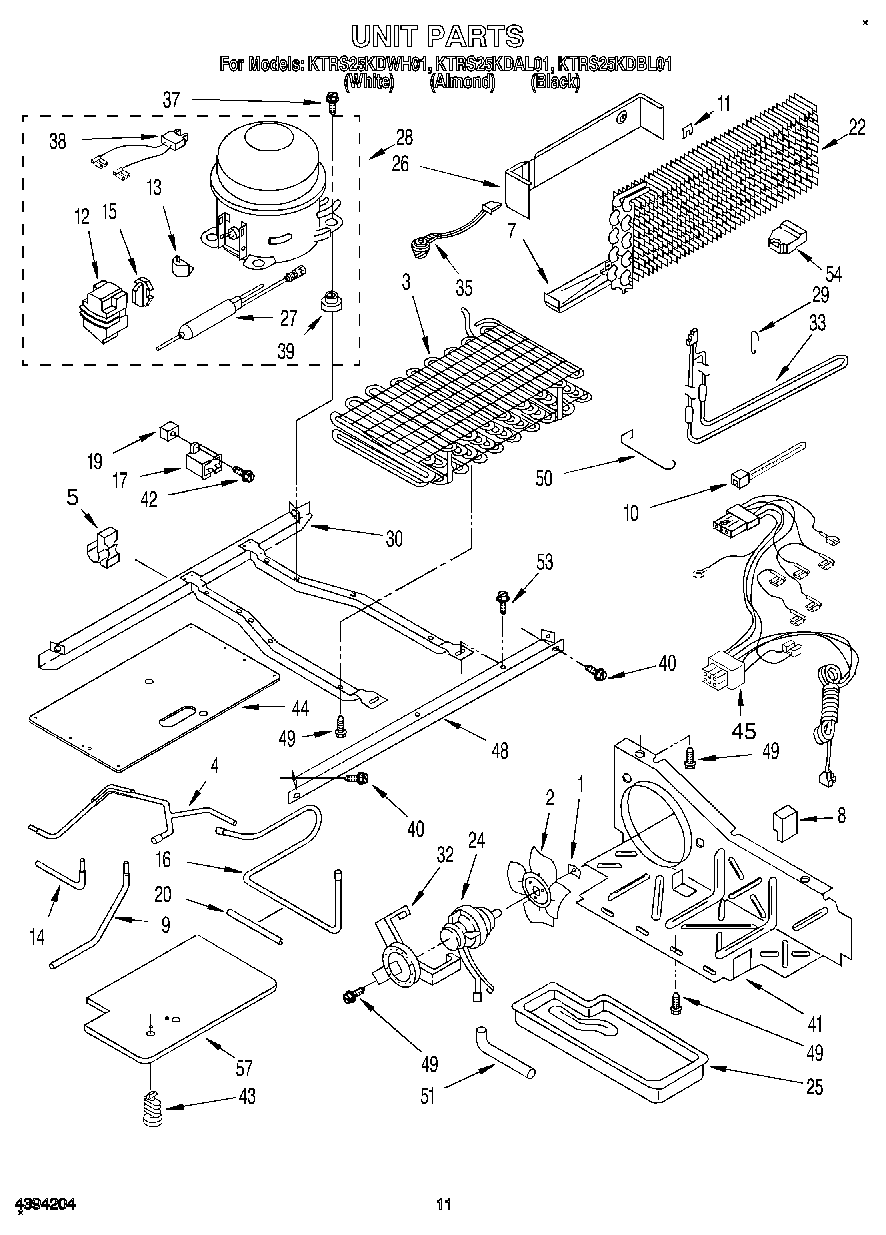

KTRS25KDAL01 07 – UNIT, LIT/OPTIONAL

KTRS25KDAL01 07 – UNIT, LIT/OPTIONAL

Written by

in

KTRS25KDAL01 07 – UNIT, LIT/OPTIONAL

Products

PositionProduct
WPL LIT2176901
WPL LIT2173943
Torx Key
Modular Icemaker Service Sheet
WPL LIT2173457
1WP486692 Whirlpool Refrigerator Nut
2Fan, Blade
3Condenser Assembly
4Tube, Discharge
5Clip, Wire
7Drain Pan
8Insert, Air Baffle
9Tube, Condenser To Heat Loop
10WPW10339879 Whirlpool Wire Tie
119791833 Whirlpool Refrigerator Clip
12WP2162358 Whirlpool Refrigerator Terminal Cover
13WP2154697 Whirlpool Refrigerator Overload
142154109 Whirlpool Refrigerator Tube
15Relay (See Overload)
16Tube, Suction
17Capacitor
19Screw Grommet
20SLEEVE
22Evaporator
24833697 Whirlpool Condenser Fan Motor
25Tray, Evaporator
26Heat Shield
27W10843121 Whirlpool Refrigerator Tube
28876765 Whirlpool Primary Mounting Kit Refrigerator
28W10309994 Whirlpool Refrigerator Compressor
29Support, Heater
302304904 Whirlpool Frame Assembly
32Bracket, Motor
33Heater, Defrost
35WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
38WP2172890 Whirlpool Refrigerator Wire
39876811 Whirlpool Grommet
41Air Baffle
42W11693756 Whirlpool Screw Assembly
43489396 Whirlpool Refrigerator Clip
44Bottom Plate
45Wire Assy
482305374 Whirlpool Refrigerator Unit Rail
49WP489464 Whirlpool Refrigerator Screw
50Guard, Fan
51Drain Extension
53WP489427 Whirlpool Refrigerator Screw
54Wedge, Air Baffle
5772032 Whirlpool Touch Up Paint Black
57VALVE, ACCESS (5/8“)
57212643 Whirlpool Refrigerator Permagum Sealer
57350942 Whirlpool Spray Paint
57511873 Whirlpool Refrigerator Paint
57606755 Whirlpool Refrigerator Bag
57350930 Whirlpool White Spray Paint
57Almond (Uncut)
57WP72107 Whirlpool Touchup
57799344 Whirlpool Refrigerator Paint
57Door Removal Instructions
5772017 Whirlpool Appliance Touch-Up Paint White
57350956 Whirlpool Spray Assembly
57833938 Whirlpool Refrigerator Terminal
57876370 Whirlpool Refrigerator Insulation
57285006 Whirlpool Spray
57WPL 799833
57WPL 876029
57CEMENT, ALUMILASTIC (1 1/4 OZ.)
57TAPE, VINYL (3/4 X 108“)
57VALVE, ACCESS (1/2“)
57WP978025 Whirlpool Refrigerator Valve
57978030 Whirlpool Refrigerator Valve
57WP542638 Whirlpool Refrigerator Grease
57978027 Whirlpool Refrigerator Primary Valve
57WP505587 Whirlpool Refrigerator Sealer
57978026 Whirlpool Refrigerator Primary Valve
57876764 Whirlpool Refrigerator Primary Valve
57WP503695 Whirlpool Refrigerator Sealer
57Cover, Unit Bottom
