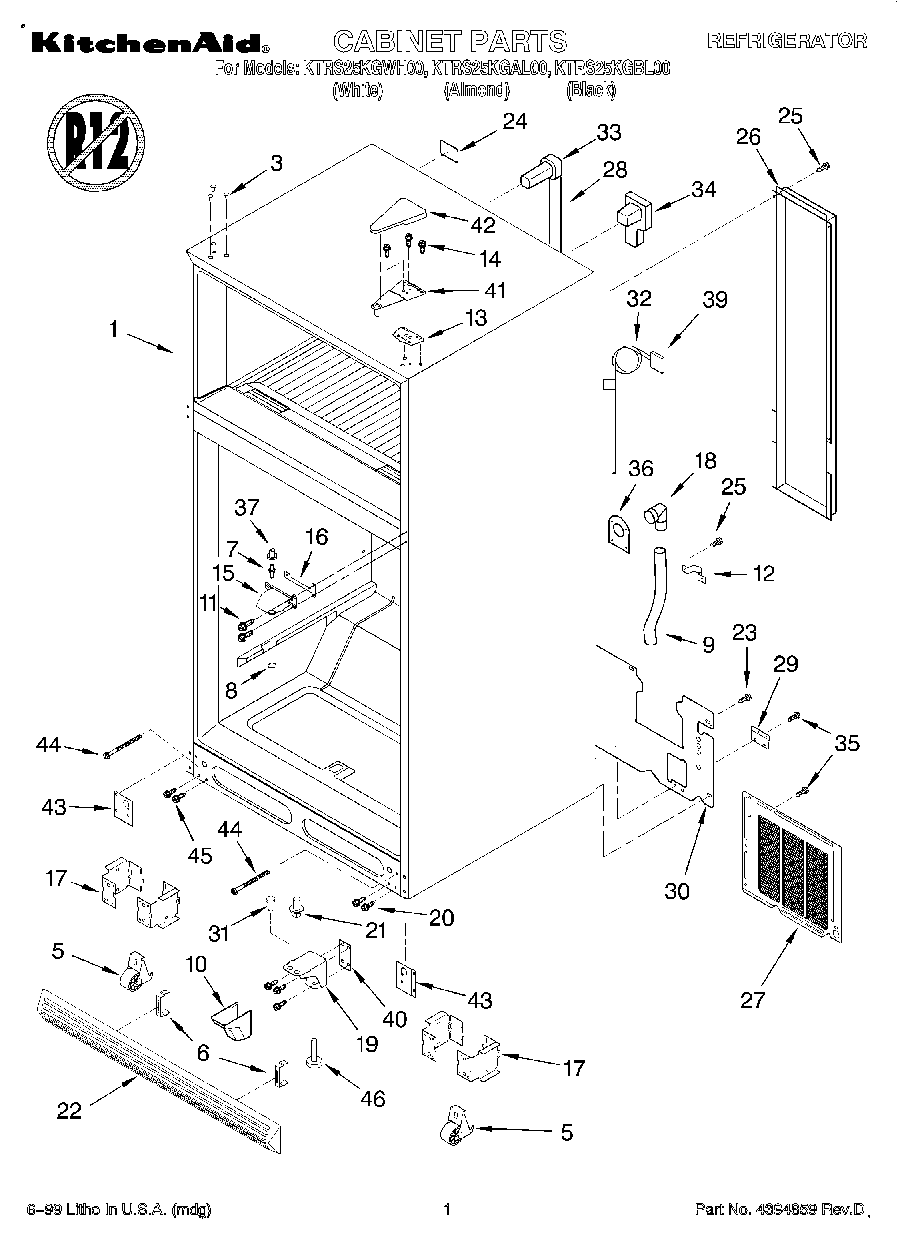

KTRS25KGAL00 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
3	Plug, Button (3) (Almond)
3	WP2189000 Whirlpool Refrigerator Handle Plug
3	WP2189009 Whirlpool Refrigerator Handle Plug
5	WPL 4344291
6	WPL 4344155
7	WPL 4344428
8	WPM0274057 Whirlpool Refrigerator Shim
8	WPM0274062 Whirlpool Refrigerator Shim
9	WPL 4344504
10	Hinge Cover, Bottom (Almond)
10	WPL 4344204
10	Hinge Cover, Bottom (Black)
11	WP67006380 Whirlpool Screw
12	WPL 4344509
13	Shim, Hinge Top (Black)
13	WPL 4344194
13	Shim, Hinge Top (Almond)
14	WP489349 Whirlpool Refrigerator Screw
15	WPL 4344431
16	Shim, Center Hinge (Almond)
16	WPL 4344427
16	Shim, Center Hinge (Black)
17	WPL 4344295
18	WPL 4344506
19	WPL 4344285
19	Hinge Bottom (Black)
20	WP67006715 Whirlpool Refrigerator Screw
21	67007018 Whirlpool Refrigerator Bottom Hinge PIN
22	Grille
22	Grille (Almond)
22	Grille (Black)
23	WPL 4344267
24	WPL 4344264
25	WPL 4343759
26	Power Cord
27	WPL 4344261
28	WPL 4344412
29	W10833899 Whirlpool Refrigerator Water Inlet Valve Kit
30	WPL 4344502
31	WPL 4344210
32	Power Cord
33	WPL 4344259
34	WPL 4344260
35	WPL 4343749
36	WPL 4344507
37	Closure, Door (Black Model)
37	WPL 4344430
39	WPM0104106 Whirlpool Refrigerator Clip
40	WPL 4344516
40	WPL 4344515
41	WPL 4344172
42	Hinge Cover (Almond)
42	WPL 4344197
42	Hinge Cover (Black)
43	WPL 4344299
43	WPL 4344301
44	WPL 4344290
45	W11573574 Whirlpool Screw
46	W11177593 Whirlpool Leveling Feet
