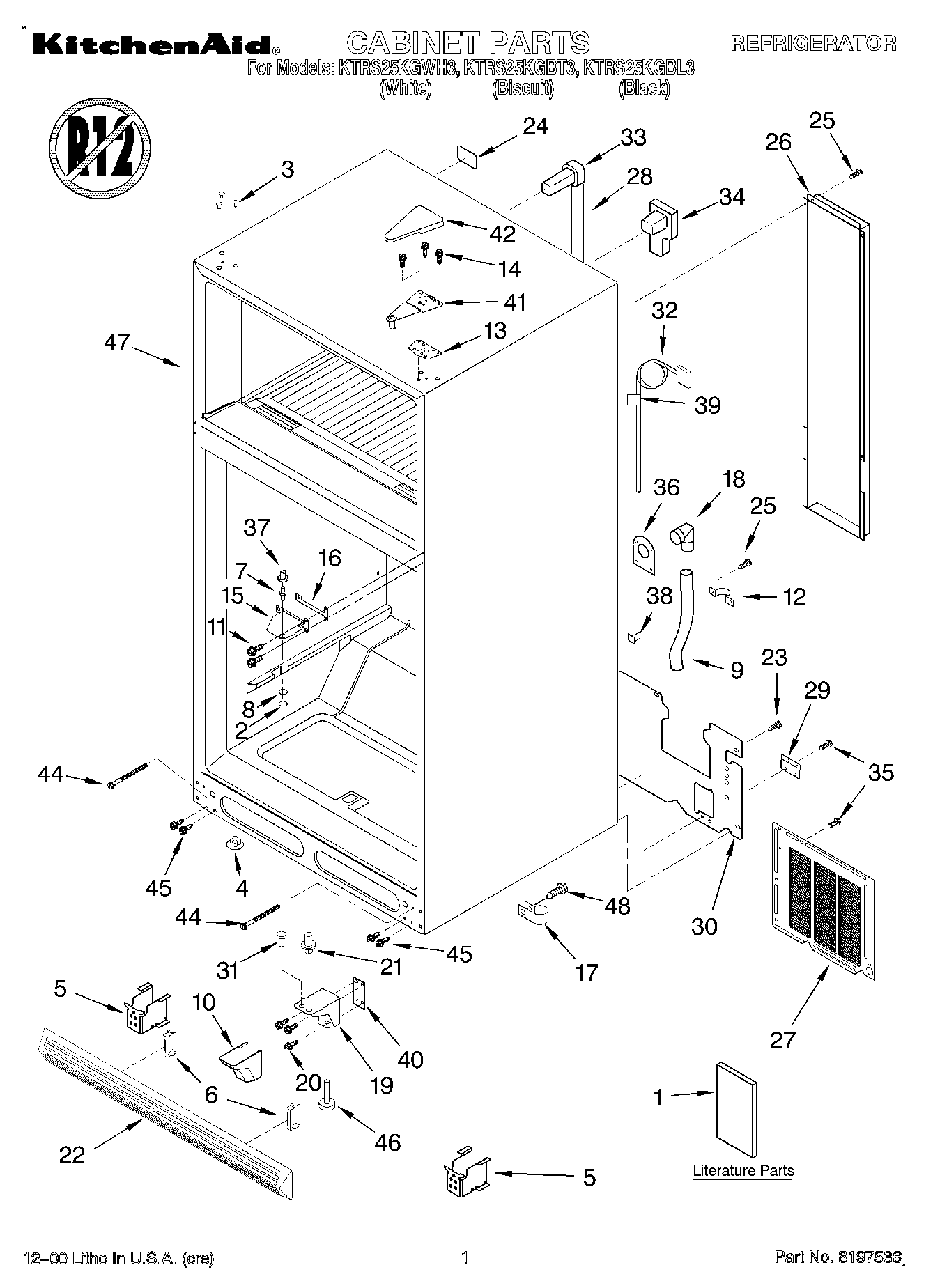

KTRS25KGBT3 01 – CABINET, LITERATURE

Products

Position	Product
1	Literature Parts (Tech Sheet)
1	Literature Parts (Owner`s Manual)
2	Shim (Black)
2	Shim ()
3	WP2189009 Whirlpool Refrigerator Handle Plug
3	WP2189000 Whirlpool Refrigerator Handle Plug
3	W10709784 Whirlpool Refrigerator Handle Plug
4	Plug, Button
5	Plug, Button (3)
6	WPL 4344155
7	WPL 4344428
8	WPM0274062 Whirlpool Refrigerator Shim
8	WPM0274057 Whirlpool Refrigerator Shim
9	WPL 4344504
10	Hinge Cover, Bottom (Biscuit)
10	Hinge Cover, Bottom (Black)
10	WPL 4344204
11	WP67006380 Whirlpool Screw
12	WPL 4344509
13	Shim, Hinge Top (Black (.015))
13	Shim, Hinge Top (Almond (.031))
13	Shim, Hinge Top (White (.062))
14	WP489349 Whirlpool Refrigerator Screw
15	WPL 4344431
16	Shim, Center Hinge (Almond)
16	Shim, Center Hinge (Black)
16	WPL 4344427
17	Clamp, Tube
18	WPL 4344506
19	Hinge Bottom (Black)
19	Hinge Bottom (White)
20	WP67006715 Whirlpool Refrigerator Screw
21	67007018 Whirlpool Refrigerator Bottom Hinge PIN
22	Grille (Biscuit)
22	Grille (Black)
22	Grille
23	WPL 4344267
24	WPL 4344264
26	Power Cord
27	Back Cover
28	Harness, Control
29	W10833899 Whirlpool Refrigerator Water Inlet Valve Kit
30	Cover, Unit
31	WPL 4344210
32	Power Cord
33	WPL 4344259
34	WPL 4344260
36	WPL 4344507
37	Closure, Door (Black Model)
37	WPL 4344430
38	Clip
39	WPM0104106 Whirlpool Refrigerator Clip
40	Shim, Hinge (Black)
40	Shim, Hinge (White)
41	Hinge Top
42	Hinge Cover (Biscuit)
42	Hinge Cover
42	Hinge Cover (Black)
44	Screw
45	W11573574 Whirlpool Screw
46	W11177593 Whirlpool Leveling Feet
47	WPL ARI112917A
48	WPL 4343759
