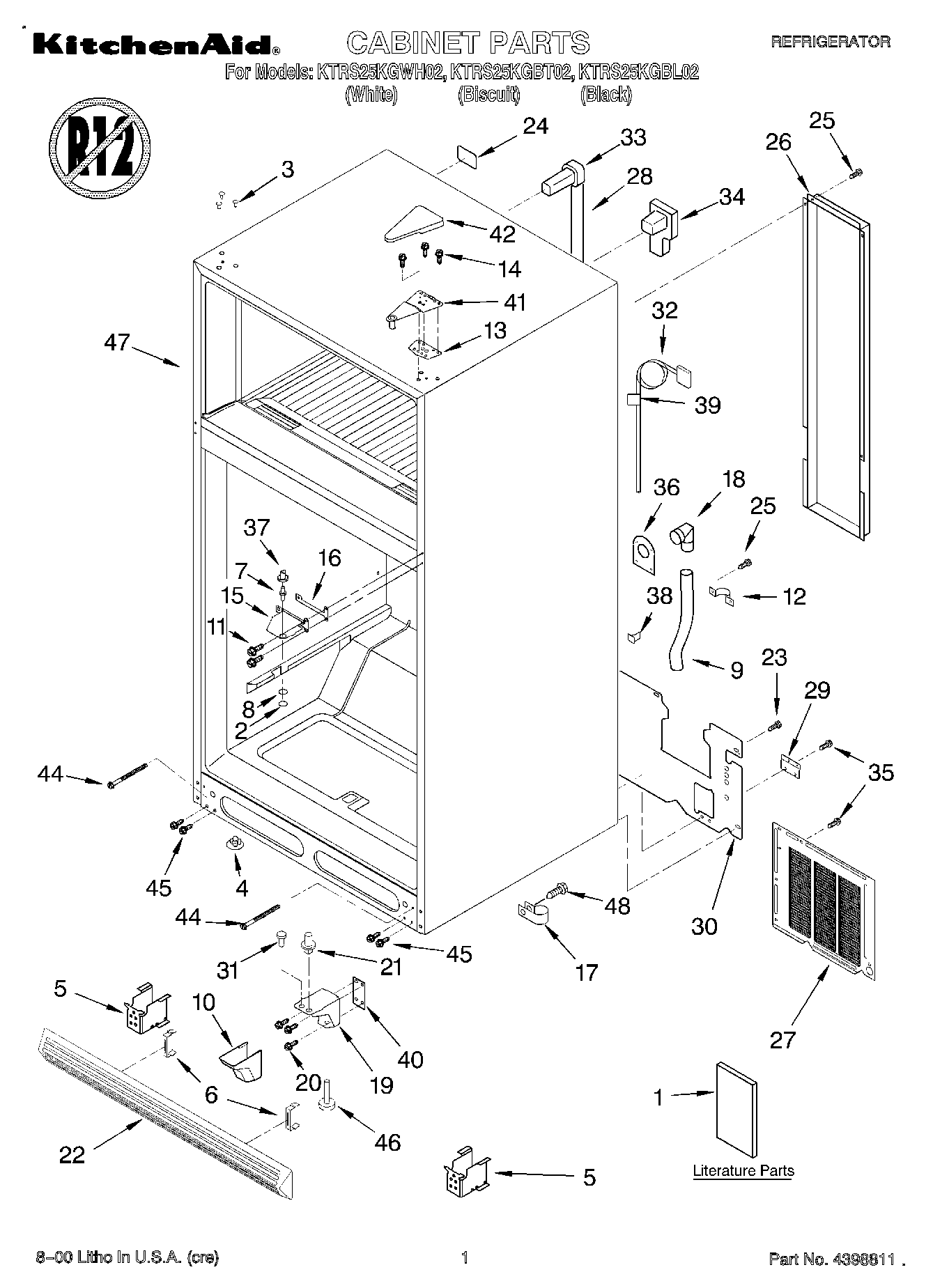

KTRS25KGWH02 01 – CABINET, LITERATUREadmin2025-04-26T12:43:40+00:00KTRS25KGWH02 01 – CABINET, LITERATURE
Products
| Position | Product |
|---|
| 1 | Literature Parts (Tech Sheet) |
| 1 | Literature Parts (Owner`s Manual) |
| 2 | Shim () |
| 2 | Shim (Black) |
| 3 | WP2189000 Whirlpool Refrigerator Handle Plug |
| 3 | WP2189009 Whirlpool Refrigerator Handle Plug |
| 3 | W10709784 Whirlpool Refrigerator Handle Plug |
| 4 | Plug, Button |
| 5 | Plug, Button (3) |
| 6 | WPL 4344155 |
| 7 | WPL 4344428 |
| 8 | WPM0274057 Whirlpool Refrigerator Shim |
| 8 | WPM0274062 Whirlpool Refrigerator Shim |
| 9 | WPL 4344504 |
| 10 | WPL 4344204 |
| 10 | Hinge Cover, Bottom (Black) |
| 10 | Hinge Cover, Bottom (Biscuit) |
| 11 | WP67006380 Whirlpool Screw |
| 12 | WPL 4344509 |
| 13 | WPL 4344194 |
| 13 | Shim, Hinge Top (Black) |
| 13 | Shim, Hinge Top (Almond) |
| 14 | WP489349 Whirlpool Refrigerator Screw |
| 15 | WPL 4344431 |
| 16 | Shim, Center Hinge (Black) |
| 16 | WPL 4344427 |
| 16 | Shim, Center Hinge (Almond) |
| 17 | Clamp, Tube |
| 18 | WPL 4344506 |
| 19 | Hinge Bottom |
| 19 | Hinge Bottom (Black) |
| 20 | WP67006715 Whirlpool Refrigerator Screw |
| 21 | 67007018 Whirlpool Refrigerator Bottom Hinge PIN |
| 22 | Grille |
| 22 | Grille (Black) |
| 22 | Grille (Biscuit) |
| 23 | WPL 4344267 |
| 24 | WPL 4344264 |
| 26 | Power Cord |
| 27 | Back Cover |
| 28 | Harness, Control |
| 29 | W10833899 Whirlpool Refrigerator Water Inlet Valve Kit |
| 30 | Cover, Unit |
| 31 | WPL 4344210 |
| 32 | Power Cord |
| 33 | WPL 4344259 |
| 34 | WPL 4344260 |
| 36 | WPL 4344507 |
| 37 | Closure, Door (Black Model) |
| 37 | WPL 4344430 |
| 38 | Clip |
| 39 | WPM0104106 Whirlpool Refrigerator Clip |
| 40 | WPL 4344515 |
| 40 | Shim, Hinge |
| 41 | WPL 4344172 |
| 42 | Hinge Cover (Almond) |
| 42 | Hinge Cover (Black) |
| 42 | Hinge Cover |
| 44 | Screw |
| 45 | W11573574 Whirlpool Screw |
| 46 | W11177593 Whirlpool Leveling Feet |
| 47 | WPL ARI112923A |
| 48 | WPL 4343759 |
