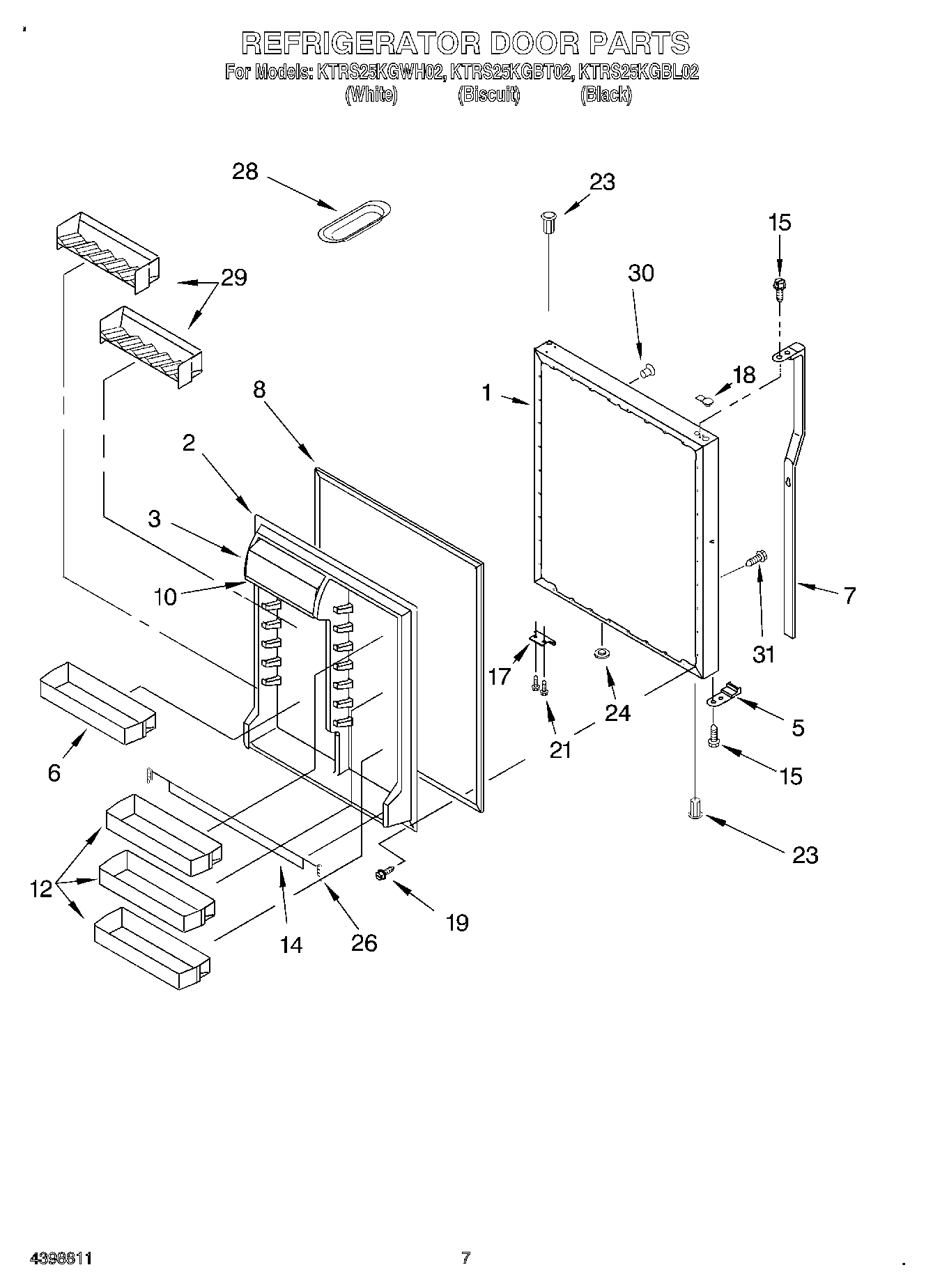

KTRS25KGWH02 05 – REFRIGERATOR DOOR

KTRS25KGWH02 05 – REFRIGERATOR DOOR

Written by

in

KTRS25KGWH02 05 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door Panel (Includes Insulation) (Biscuit)
1Refrigerator Door Panel (Includes Insulation) (Black)
1Refrigerator Door Panel (Includes Insulation)
2WPL 4344531
3WPL 4344369
5End Cap (Biscuit)
5End Cap
5End Cap (Black)
6WPL 4344532
7Handle (Black)
7Handle (Biscuit)
7Handle
8Door Gasket, Magnetic (White)
8Door Gasket, Magnetic (Black)
10WPL 4344370
12WPL 8170300
14WPL 4344536
15Screw
17W11708403 Whirlpool Door Stop
1712968202W Whirlpool Refrigerator Door Stop
1767003781 Whirlpool Refrigerator Door Stop (BSQ)
18Plug, Button (White)
18Plug, Button (Black)
18Plug, Button (Biscuit)
19WPL 4343811
21WPW10348409 Whirlpool Screw
23WPL 4344362
23Bushing (Black)
24Plug, Button (Biscuit)
24Plug, Button (Black)
24WPL 4344227
26WPL 4344346
28WPL 4344296
29WPL 4344374
30W10709784 Whirlpool Refrigerator Handle Plug
30WP67001130 Whirlpool Refrigerator White Button Plug
30WP12246608 Whirlpool Refrigerator Button
31Screw
