KTRS25KWAL00 06 – UNIT

KTRS25KWAL00 06 – UNIT

Written by

in

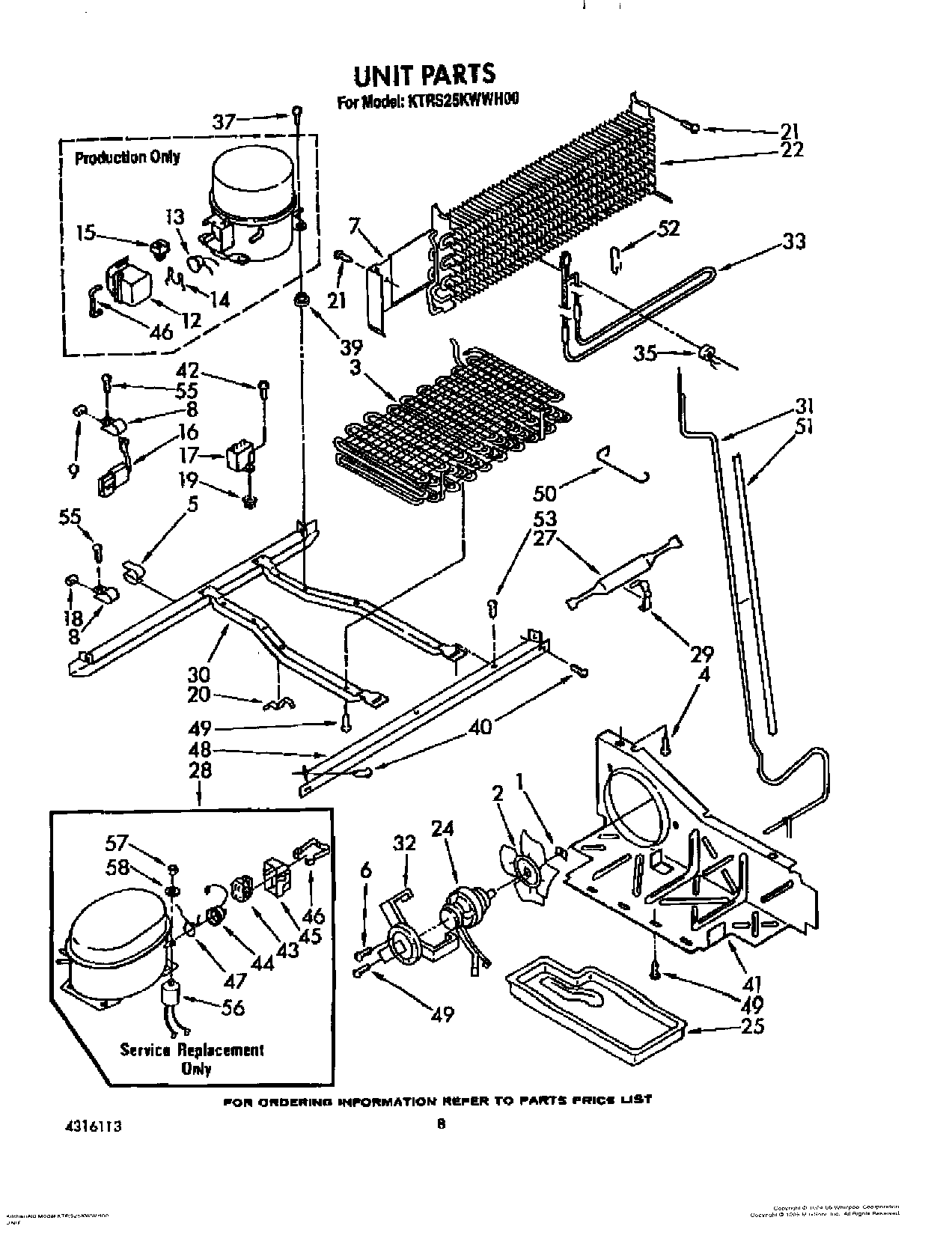

KTRS25KWAL00 06 – UNIT

Products

PositionProduct
1WP486692 Whirlpool Refrigerator Nut
2Fan, Blade
3Condenser Assembly
4Screw, 8-32 x 1/2
5Clip, Wire (2)
6681390 Whirlpool Refrigerator Screw
7Heat Shield
8Clamp Tube
9Dampener (2)
12Cover
13Overload
14Spring, Overload
15Relay
16Housing Plug
17WPW10662129 Whirlpool Refrigerator Run Capacitor
18WP2158826 Whirlpool Refrigerator Dampener
19Screw Grommet
20Clip (2)
21W11624204 Whirlpool Screw
22Evaporator
24833697 Whirlpool Condenser Fan Motor
25Tray, Evaporator
27W10843121 Whirlpool Refrigerator Tube
28Compressor (Includes Items 43, 44, 45, 46, 47, 56, 57 & 58) (Also Order)
29Clamp, Dryer
302304904 Whirlpool Frame Assembly
31Exchanger, Heat
32Bracket, Motor
33Heater, Defrost
35WP4387500 Whirlpool Refrigerator Bimetallic Defrost
39876811 Whirlpool Grommet
40489340 Whirlpool Refrigerator Screw
41W10896764 Whirlpool Refrigerator Air Baffle
42W11693756 Whirlpool Screw Assembly
43WP2262181 Whirlpool Refrigerator Start Relay
44Overload
45Cover, Terminal
46Strap
47Overload Spring
482305374 Whirlpool Refrigerator Unit Rail
49Screw, 8 x 3/8
50Guard, Fan
51WP2002171 Whirlpool Refrigerator Sleeve
52Support, Heater
53Screw, 1/4-28 x 1/2 (2)
55WPW10141625 Whirlpool Refrigerator Screw Assembly
56Capacitor
57Nut
58White (R.H.)
58Almond (R.H.)
58Trim Kit
58Trimless Glass Kit (Black (R.H.))
58Trimless Glass Kit (Black)
58Woodgrain
58Black Grille Kit
58Black (L.H.)
58White (L.H.)
58Almond Handle Insert
58White
58Washer
58978026 Whirlpool Refrigerator Primary Valve
58VALVE, ACCESS (1/2“)
58WP978025 Whirlpool Refrigerator Valve
58978030 Whirlpool Refrigerator Valve
58978027 Whirlpool Refrigerator Primary Valve
58876764 Whirlpool Refrigerator Primary Valve
58VALVE, ACCESS (5/8“)
58Trimless Glass Kit (Black)
58Almond (L.H.) Panel For Trim Kit
