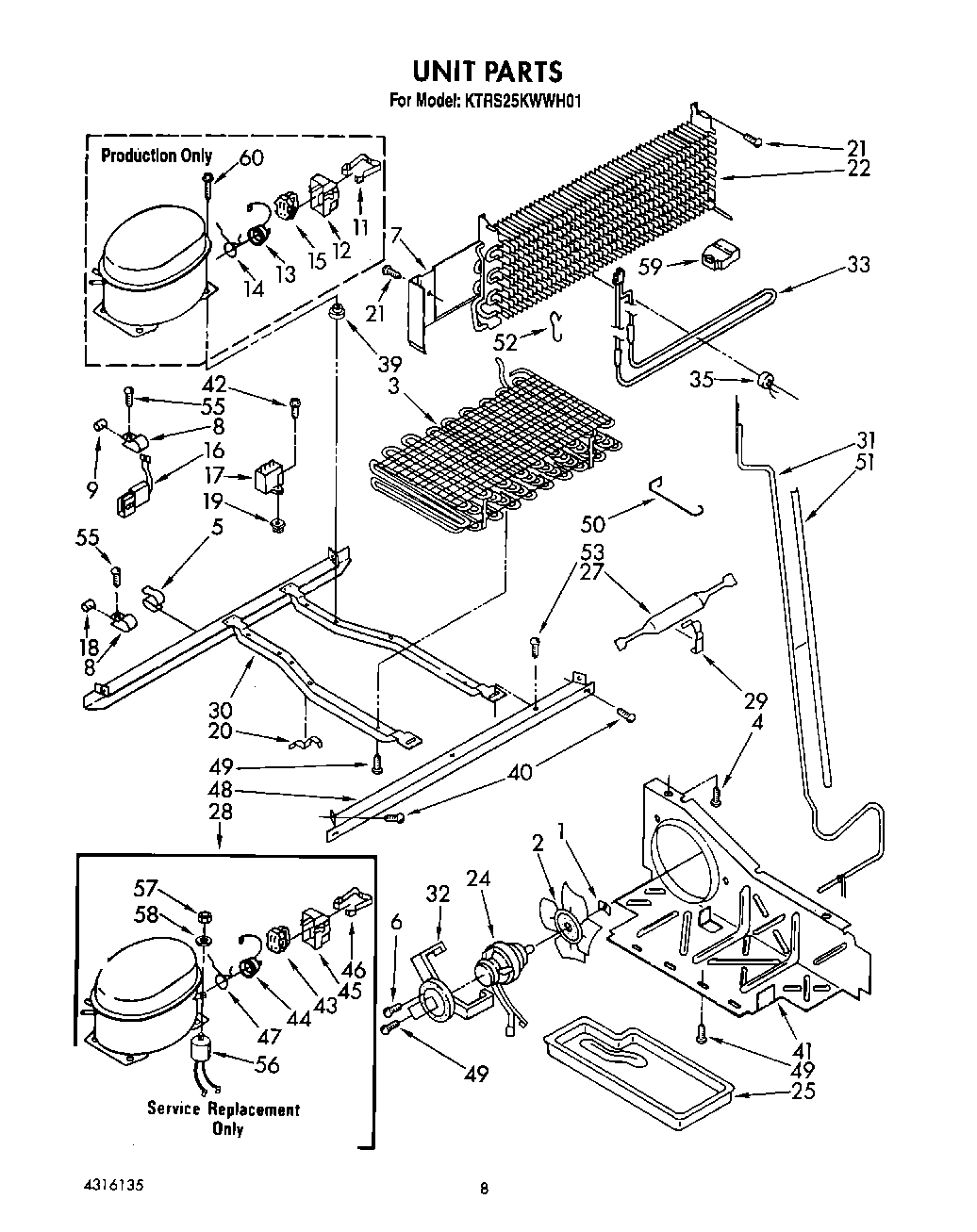

KTRS25KWWH01 05 – UNIT

KTRS25KWWH01 05 – UNIT

Written by

in

KTRS25KWWH01 05 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
4	Screw, 8-32 x 1/2
5	Clip, Wire (2)
6	681390 Whirlpool Refrigerator Screw
7	Heat Shield
8	Clamp Tube
9	Dampener (2)
12	Cover
13	Overload
16	Housing Plug
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
18	WP2158826 Whirlpool Refrigerator Dampener
19	Screw Grommet
20	Clip (2)
21	WP489464 Whirlpool Refrigerator Screw
22	Evaporator
24	833697 Whirlpool Condenser Fan Motor
25	Tray, Evaporator
27	W10843121 Whirlpool Refrigerator Tube
28	Compressor (Includes Items 43, 44, 45, 46, 47, 56, 57 & 58) (Also Order)
28	876765 Whirlpool Primary Mounting Kit Refrigerator
29	Clamp, Dryer
30	2304904 Whirlpool Frame Assembly
31	Exchanger, Heat
32	Fan, Motor Bracket
33	Heater, Defrost
35	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
39	876811 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
42	W11693756 Whirlpool Screw Assembly
43	WP2262181 Whirlpool Refrigerator Start Relay
44	Overload
45	Cover, Terminal
46	Strap
47	Overload Spring
48	2305374 Whirlpool Refrigerator Unit Rail
49	Screw, 8 x 3/8
50	Guard, Fan
51	WP2196003 Whirlpool Refrigerator Bar Riser
52	Support, Heater
53	Screw, 1/4-28 x 1/2 (2)
55	WPW10141625 Whirlpool Refrigerator Screw Assembly
56	Capacitor
57	Nut
58	Washer
59	Support, Evaporator
60	WP978025 Whirlpool Refrigerator Valve
60	VALVE, ACCESS (1/2“)
60	978027 Whirlpool Refrigerator Primary Valve
60	978026 Whirlpool Refrigerator Primary Valve
60	876764 Whirlpool Refrigerator Primary Valve
60	VALVE, ACCESS (5/8“)
60	978030 Whirlpool Refrigerator Valve
