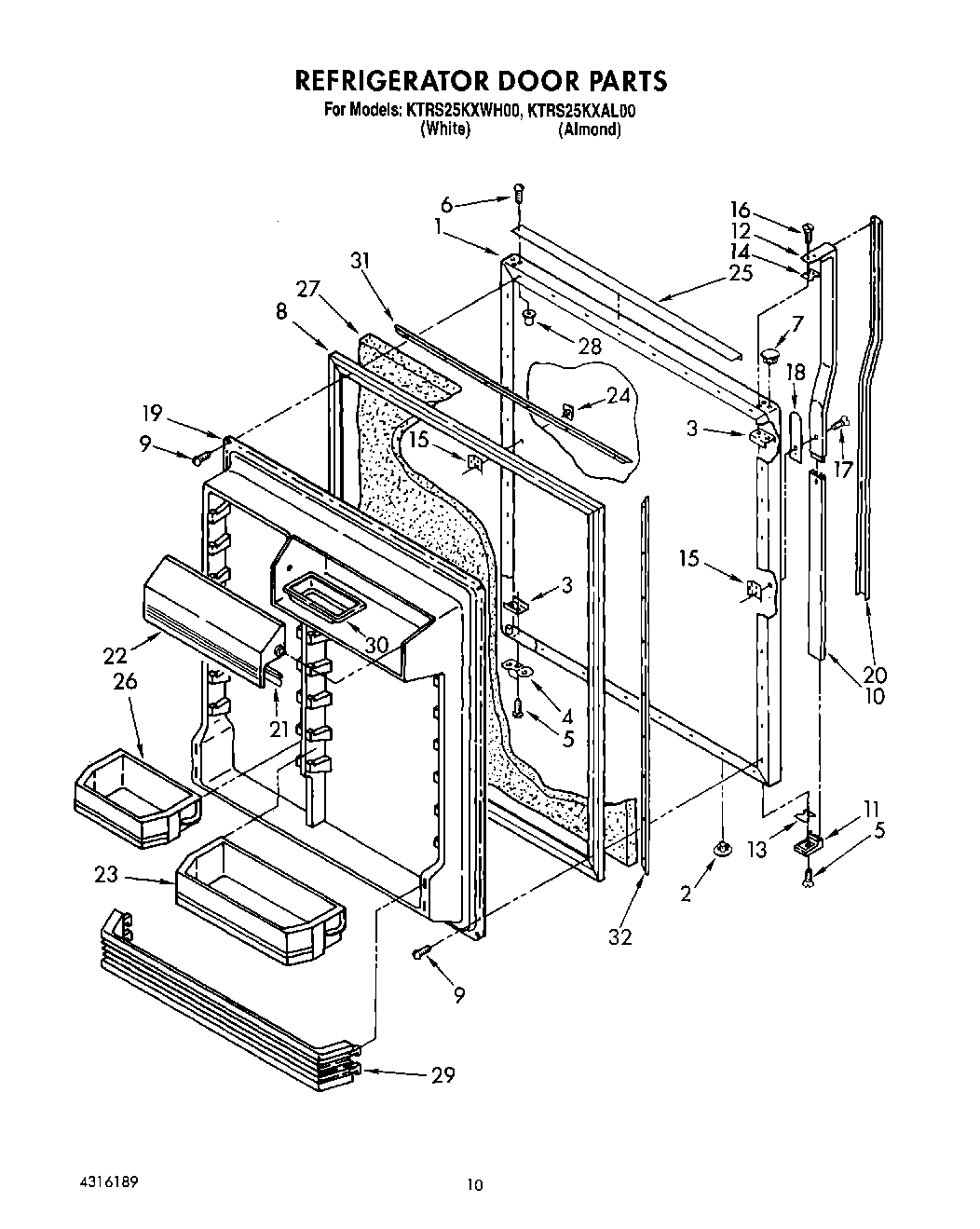

KTRS25KXAL00 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Panel, Refrigerator Door (Almond (Also Order Item 27))
1	Panel, Refrigerator Door (White)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
8	Door Gasket, Magnetic
9	WP489069 Whirlpool Compactor Screw
10	Retainer, Insert
11	Handle End
12	Handle
13	Shim, End Cap
14	Spacer
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	Spacer, Handle
19	Interior Door Panel
20	Insert, Handle (Almond)
20	Insert, Handle (White)
21	Gasket, Utility Door
22	Compartment Door,
23	Bin, Door Shelf Deep. Wide
24	Hole Plug, Handle (Almond)
24	WP2189000 Whirlpool Refrigerator Handle Plug
25	Trim, Door
26	Shelf Bin (3)
27	WPL 876029
28	Cap, Hinge Sleeve (2)
29	Shelf Bin, Fixed
30	Butter, Tray
31	Retainer, Gasket
32	White (L.H.)
32	Black (L.H.)
32	Black Grille Kit
32	Woodgrain
32	Trimless Glass Kit (Black)
32	Trimless Glass Kit (Black (R.H.))
32	Trim Kit
32	Almond (R.H.)
32	White (R.H.)
32	Almond Handle Insert
32	White
32	Trimless Glass Kit (Black)
32	Retainer, Gasket
32	Almond (L.H.) Panel For Trim Kit
