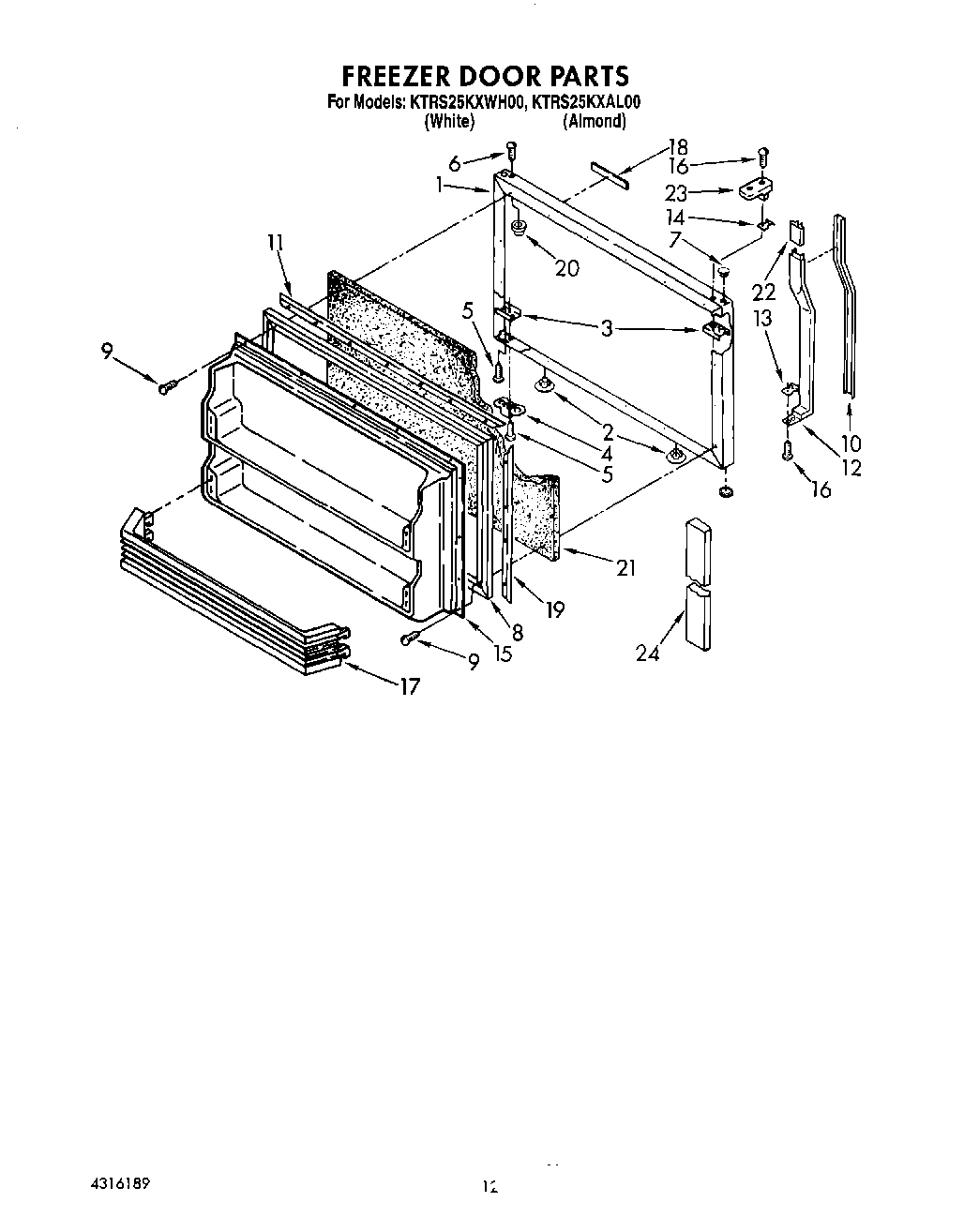

KTRS25KXAL00 07 – FREEZER DOOR

Products

Position	Product
1	Panel, Freezer Door (Also Order Item 21) (Almond)
1	Panel, Freezer Door (Also Order Item 21) (White)
2	Hole Plug (2)
2	Hole Plug (2) (Almond)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
8	Door Gasket, Magnetic
9	WP489069 Whirlpool Compactor Screw
10	Insert, Handle (White)
10	Insert, Handle (Almond)
11	Retainer, Gasket
12	Handle
13	Spacer
14	Spacer, Handle
15	Interior Door Panel
16	WP488920 Whirlpool Refrigerator Screw
17	Shelf Bin, Fixed
18	Nameplate (White Model)
19	Retainer, Gasket
20	Cap, Hinge Sleeve (2)
21	WPL 876029
22	Retainer, Insert
23	End Cap
24	Dike, Door (2)
