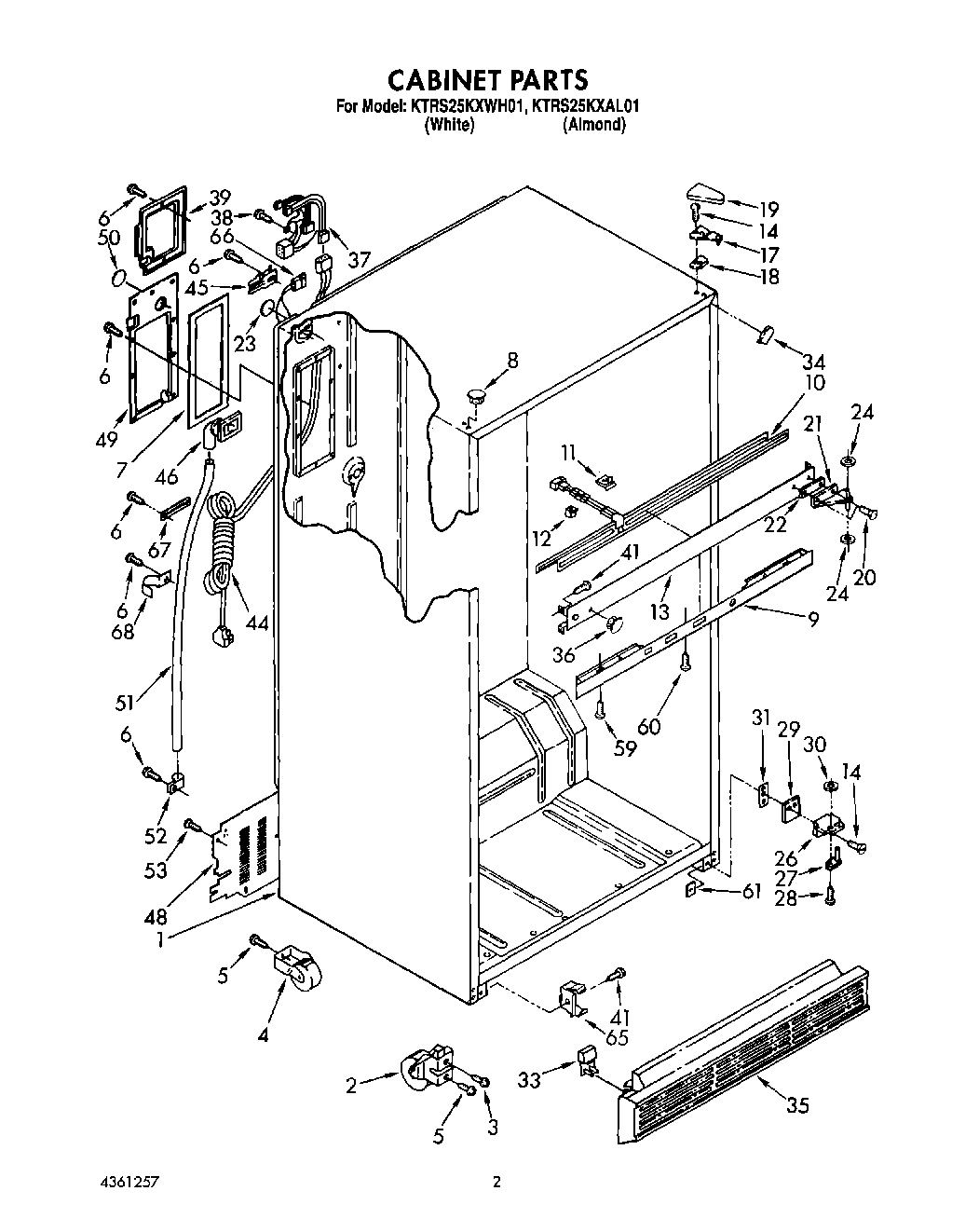

KTRS25KXAL01 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Front Roller (2)
3	Screw
4	Roller, Rear (2)
5	Screw, 1/4-28 x 1/2 (2)
6	WP489464 Whirlpool Refrigerator Screw
7	WPL 1114548
8	WP2151652 Whirlpool Refrigerator Button Plug
8	Hole Plug (6) (Almond)
9	Control, Front Cover
10	Heater, Mullion
11	Clip, Mullion (3)
12	Spacer (3)
13	Center Rail (White)
13	Center Rail (Almond)
14	Screw
17	Hinge, Top
18	Shim, Hinge Top
19	1119787 Whirlpool Refrigerator Hinge Cover
20	Screw
21	Hinge, Center
22	Shim, Center (Repair)
22	Shim, Hinge Center
23	Hole Seal
24	WP488296 Whirlpool Washer Refrigerator
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw 10-32 x 5/16
29	Shim, Door Closer
30	WP487802 Whirlpool Refrigerator Washer
31	Spacer, Hinge
33	Corner Filler, Grille (White)
33	Corner Filler, Grille (Almond)
34	Filler, Wrapper (Almond)
34	Filler, Wrapper (White)
35	Grille (Almond)
35	Grille (White)
36	Hole Plug (4) (White)
36	Hole Plug (4) (Almond)
37	Cabinet, Wiring Assembly
38	WP250830 Whirlpool Refrigerator Screw
39	Cover, Wiring
41	WP489478 Whirlpool Refrigerator Screw
44	Cord, Service
45	Clamp
46	Fitting, Drain
48	Cover, Unit
49	Cover, Plug
50	WPL 1120224
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 836077
59	WP488163 Whirlpool Refrigerator Screw
60	WP489174 Whirlpool Refrigerator Screw
61	Tap Plate (2)
65	WP2155013 Whirlpool Refrigerator Clip
66	WP717253 Whirlpool Dishwasher Connector
68	Tube Clamp (2)
