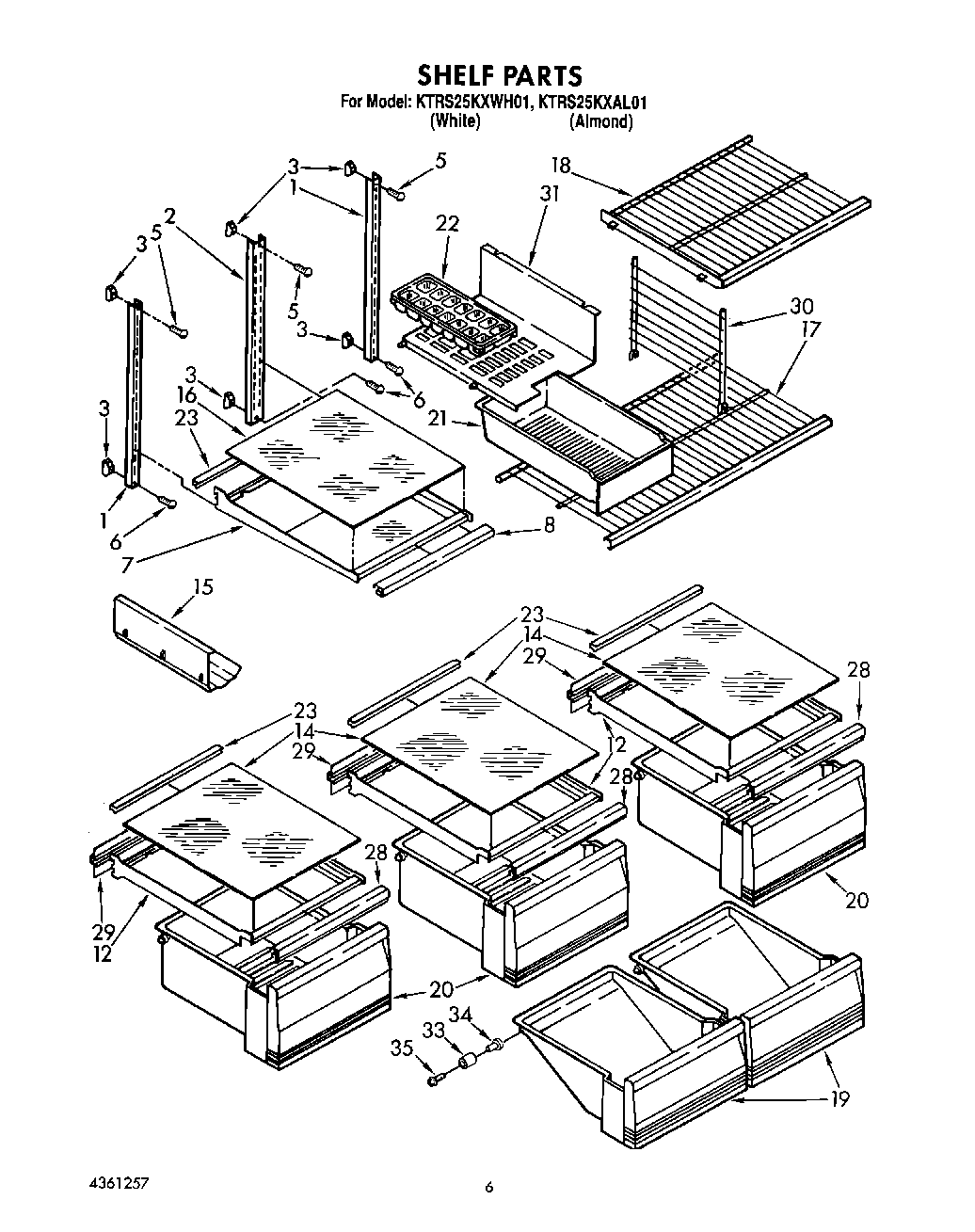

KTRS25KXAL01 05 – SHELF, LIT/OPTIONAL

KTRS25KXAL01 05 – SHELF, LIT/OPTIONAL

Written by

in

KTRS25KXAL01 05 – SHELF, LIT/OPTIONAL

Products

PositionProduct
WPL LIT4361257
WPL LIT2154987
WPL LIT1126215
1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
WPL LIT1125570
Torx Key
1Shelf, Ladder (2)
2Shelf Ladder, Center
3520965 Whirlpool Refrigerator Support
5Screw (3)
6WP488163 Whirlpool Refrigerator Screw
7Shelf, Cantilever (2)
8Gasket (Front)
12Pan Shelf, (3) Cantilever
14Glass, Shelf
15Wine & Egg Rack
16Glass, Shelf
17Shelf, Freezer
18Shelf, Freezer
19Pan, Crisper
20Pan, Meat
21PAN-ICE
22WP841180A Whirlpool Microwave Glass Turntable Tray
23Retainer, Shelf
28Gasket (Front)
29Gasket, Rear
30Divider
31Shelf, Ice Tray
33Roller, R.S.
33Roller
34Eyelet, Roller
35511873 Whirlpool Refrigerator Paint
35350942 Whirlpool Spray Paint
35212643 Whirlpool Refrigerator Permagum Sealer
35Leveler (Thinner)
35Almond (Uncut)
35WP72107 Whirlpool Touchup
35350930 Whirlpool White Spray Paint
35799344 Whirlpool Refrigerator Paint
3572017 Whirlpool Appliance Touch-Up Paint White
35350956 Whirlpool Spray Assembly
35606755 Whirlpool Refrigerator Bag
35833938 Whirlpool Refrigerator Terminal
35285006 Whirlpool Spray
35WP489261 Whirlpool Refrigerator Screw
35WPL 876029
35WPL 799833
35CEMENT, ALUMILASTIC (1 1/4 OZ.)
35TAPE, VINYL (3/4 X 108“)
35WP542638 Whirlpool Refrigerator Grease
35WP505587 Whirlpool Refrigerator Sealer
35WP503695 Whirlpool Refrigerator Sealer
35876370 Whirlpool Refrigerator Insulation
3572032 Whirlpool Touch Up Paint Black
