KTRS25KXAL01 06 – UNIT

KTRS25KXAL01 06 – UNIT

Written by

in

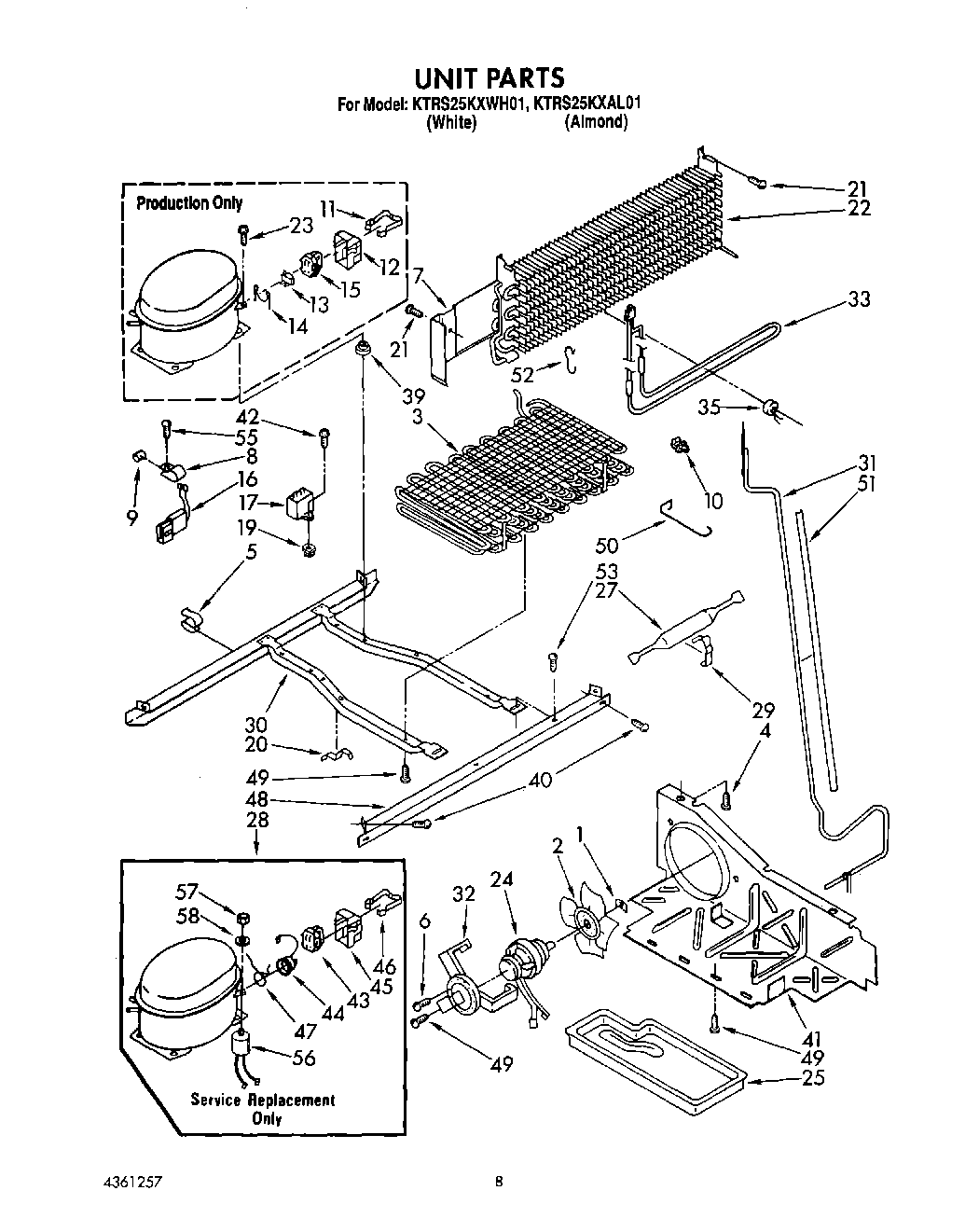

KTRS25KXAL01 06 – UNIT

Products

PositionProduct
1WP486692 Whirlpool Refrigerator Nut
2Fan, Blade
3Condenser Assembly
5Clip, Wire (2)
6681390 Whirlpool Refrigerator Screw
7Heat Shield
8Clamp Tube
9Dampener (2)
10Support, Evaporator
11case spring
12Case, Relay
13Overload
14Spring, Overload
15Relay (Order Overload To Obtain Relay)
16Housing Plug
17WPW10662129 Whirlpool Refrigerator Run Capacitor
19Screw Grommet
20Clip (2)
22Evaporator
24833697 Whirlpool Condenser Fan Motor
25Tray, Evaporator
27W10843121 Whirlpool Refrigerator Tube
28Compressor (Includes Items 43, 44, 45, 46, 47, 56, 57 & 58) (Also Order)
29Clamp, Dryer
302304904 Whirlpool Frame Assembly
31Exchanger, Heat
32Bracket, Motor
33Heater, Defrost
35WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
39876811 Whirlpool Grommet
40489340 Whirlpool Refrigerator Screw
41W10896764 Whirlpool Refrigerator Air Baffle
42W11693756 Whirlpool Screw Assembly
43WP2262181 Whirlpool Refrigerator Start Relay
44WP2154697 Whirlpool Refrigerator Overload
45Cover
46Strap
47Overload Spring
482305374 Whirlpool Refrigerator Unit Rail
49Screw, 8 x 3/8
50Guard, Fan
51WP2002171 Whirlpool Refrigerator Sleeve
52Support, Heater
53WP489427 Whirlpool Refrigerator Screw
55WP965173 Whirlpool Dishwasher Screw
57Nut
58978027 Whirlpool Refrigerator Primary Valve
58Washer
58VALVE, ACCESS (5/8“)
58876764 Whirlpool Refrigerator Primary Valve
58VALVE, ACCESS (1/2“)
58978026 Whirlpool Refrigerator Primary Valve
58978030 Whirlpool Refrigerator Valve
58WP978025 Whirlpool Refrigerator Valve
