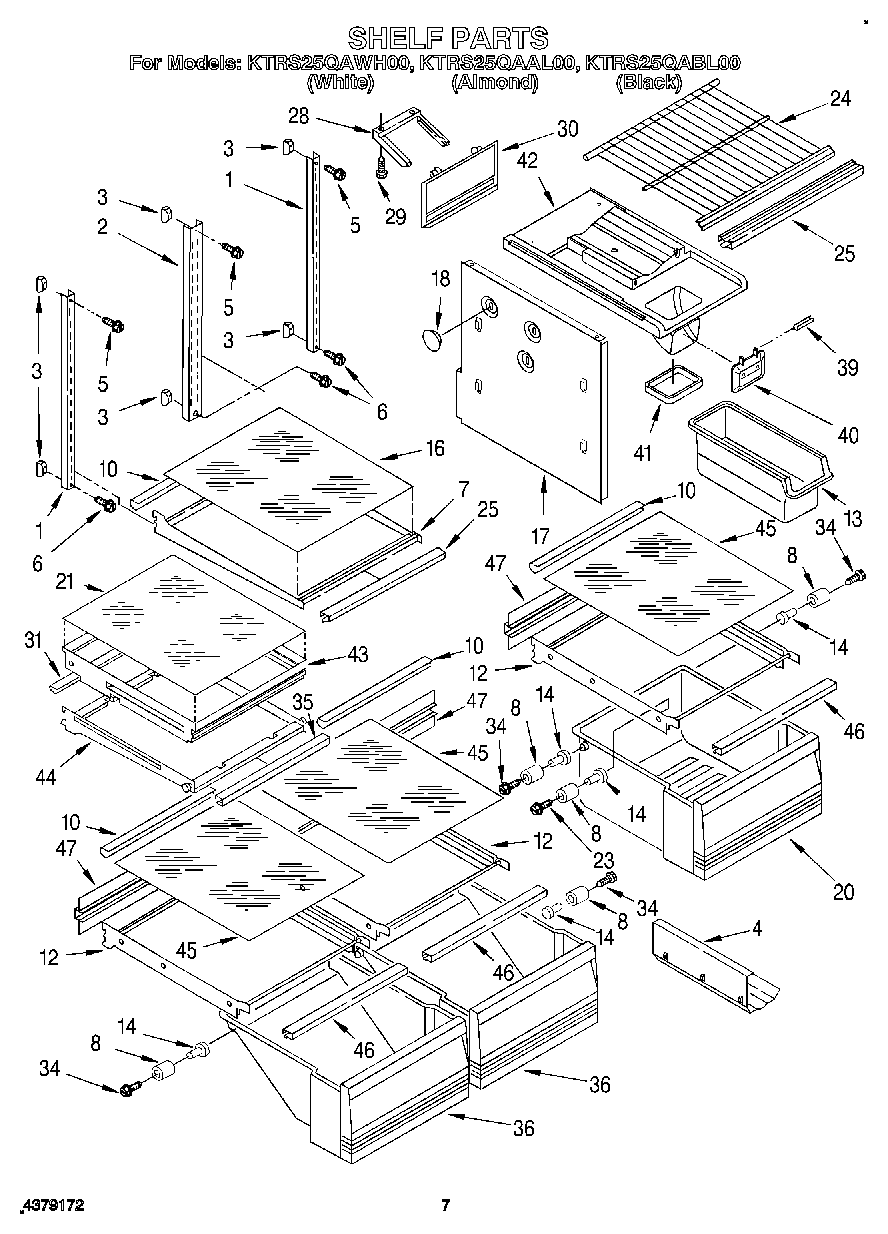

KTRS25QAAL00 05 – SHELF, LIT/OPTIONAL

KTRS25QAAL00 05 – SHELF, LIT/OPTIONAL

Written by

in

KTRS25QAAL00 05 – SHELF, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2168566
	Torx Key
	WPL LIT2168556
	WPL LIT2160774
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	Modular Icemaker Service Sheet
1	Shelf, Ladder (2)
2	Shelf Ladder, Center
3	520965 Whirlpool Refrigerator Support
4	Wine & Egg Rack
5	Screw (3)
6	WP488163 Whirlpool Refrigerator Screw
7	Shelf, Cantilever (2)
8	Roller
10	Retainer, Shelf
12	Pan Shelf, Slide Assembly (3)
13	WP982704 Whirlpool Refrigerator Container
14	Eyelet, Roller
16	Glass, Shelf
17	Support Wall I/M
18	Anchor-Screw I/M
20	Meat Pan Roller Assembly
21	Glass, Shelf
23	WP489261 Whirlpool Refrigerator Screw
24	Shelf, Freezer (Top)
25	Gasket (Front)
28	Slide, Ice Door
29	WP489478 Whirlpool Refrigerator Screw
30	Door, Ice Compartment
31	Retainer, Shelf
35	Gasket (Front)
36	Crisper Pan (2) Roller Assembly
39	Roll Pin
40	Door-Platform
41	Gasket-Platform
42	Platform-Ice Container
43	Frame & Roller Assembly Moveable
44	Frame & Roller Assembly
45	Glass, Shelf
46	Gasket (Front)
47	WPL 876029
47	Almond (Uncut)
47	Leveler (Thinner)
47	350930 Whirlpool White Spray Paint
47	285006 Whirlpool Spray
47	Gasket, Rear
47	72032 Whirlpool Touch Up Paint Black
47	WP72107 Whirlpool Touchup
47	799344 Whirlpool Refrigerator Paint
47	72017 Whirlpool Appliance Touch-Up Paint White
47	212643 Whirlpool Refrigerator Permagum Sealer
47	350942 Whirlpool Spray Paint
47	TAPE, VINYL (3/4 X 108“)
47	CEMENT, ALUMILASTIC (1 1/4 OZ.)
47	WP542638 Whirlpool Refrigerator Grease
47	WP505587 Whirlpool Refrigerator Sealer
47	WP503695 Whirlpool Refrigerator Sealer
47	876370 Whirlpool Refrigerator Insulation
47	833938 Whirlpool Refrigerator Terminal
47	WPL 799833
47	606755 Whirlpool Refrigerator Bag
47	511873 Whirlpool Refrigerator Paint
47	350956 Whirlpool Spray Assembly
