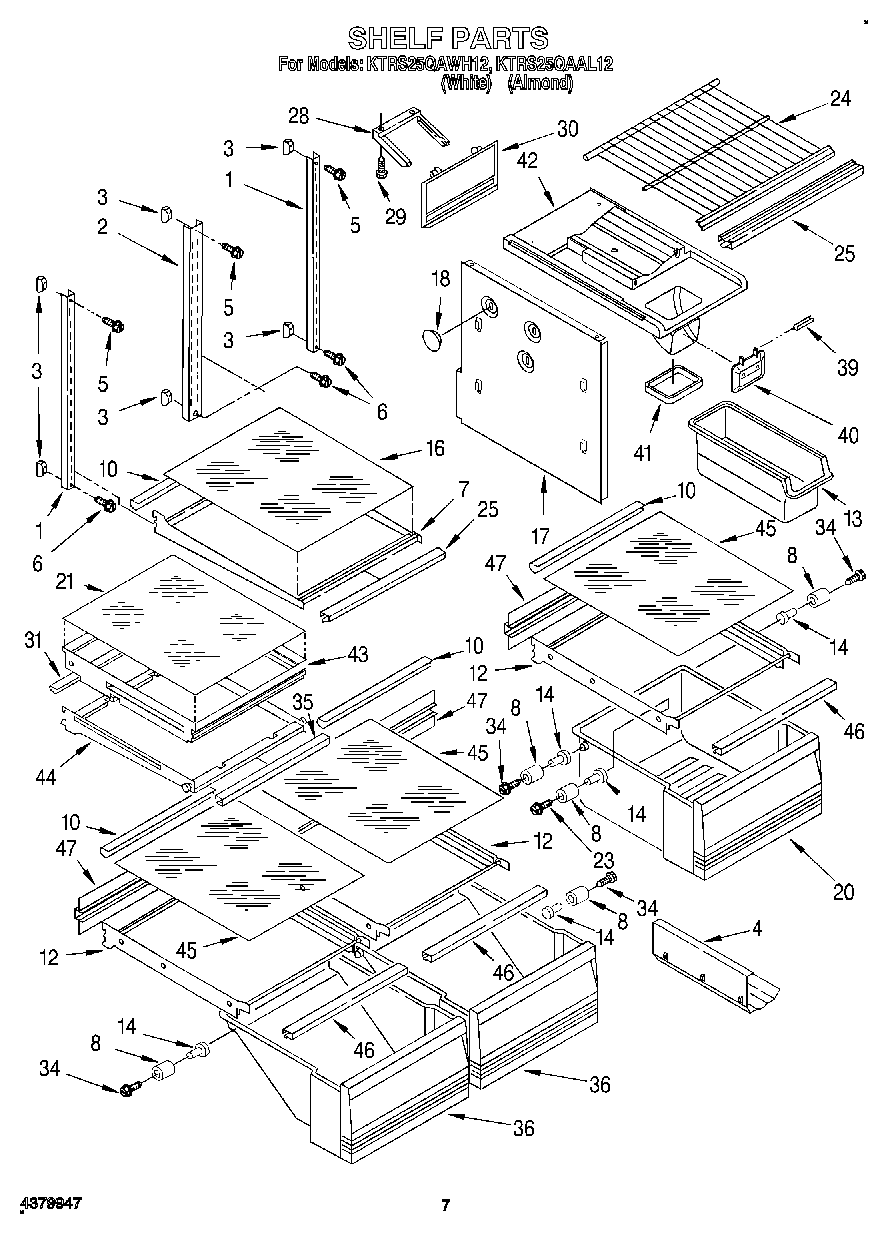

KTRS25QAAL12 05 – SHELF, LIT/OPTIONAL

KTRS25QAAL12 05 – SHELF, LIT/OPTIONAL

Written by

in

KTRS25QAAL12 05 – SHELF, LIT/OPTIONAL

Products

PositionProduct
WPL LIT2176905
Torx Key
WPL LIT2168556
Modular Icemaker Service Sheet
WPL LIT2168924
1Shelf, Ladder (2)
2Shelf Ladder, Center
3520965 Whirlpool Refrigerator Support
4Wine & Egg Rack
5Screw (3)
6WP489474 Whirlpool Refrigerator Screw
7Shelf, Cantilever (2)
8Roller
10Retainer, Shelf
12Pan Shelf, Slide Assembly (3)
13WP982704 Whirlpool Refrigerator Container
14Eyelet, Roller
16Glass, Shelf
17Support Wall I/M
18Anchor-Screw I/M
20Meat Pan Roller Assembly
21Glass, Shelf
23WP489261 Whirlpool Refrigerator Screw
24Shelf, Freezer (Top)
25Gasket (Front)
28Slide, Ice Door
29WP489478 Whirlpool Refrigerator Screw
30Door, Ice Compartment
31Retainer, Shelf
35Gasket (Front)
36Crisper Pan (2) Roller Assembly
39Roll Pin
40Door-Platform
41Gasket-Platform
42Platform-Ice Container
43Frame & Roller Assembly Moveable
44Frame & Roller Assembly
45Glass, Shelf
46Gasket (Front)
47WPL 799833
4772032 Whirlpool Touch Up Paint Black
47285006 Whirlpool Spray
47350956 Whirlpool Spray Assembly
47212643 Whirlpool Refrigerator Permagum Sealer
47WPL 876029
47Door Removal Instructions
47350930 Whirlpool White Spray Paint
47TAPE, VINYL (3/4 X 108“)
4772017 Whirlpool Appliance Touch-Up Paint White
47799344 Whirlpool Refrigerator Paint
47876370 Whirlpool Refrigerator Insulation
47833938 Whirlpool Refrigerator Terminal
47606755 Whirlpool Refrigerator Bag
47WP505587 Whirlpool Refrigerator Sealer
47511873 Whirlpool Refrigerator Paint
47350942 Whirlpool Spray Paint
47WP542638 Whirlpool Refrigerator Grease
47CEMENT, ALUMILASTIC (1 1/4 OZ.)
47Almond (Uncut)
47WP72107 Whirlpool Touchup
47WP503695 Whirlpool Refrigerator Sealer
47Gasket, Rear
