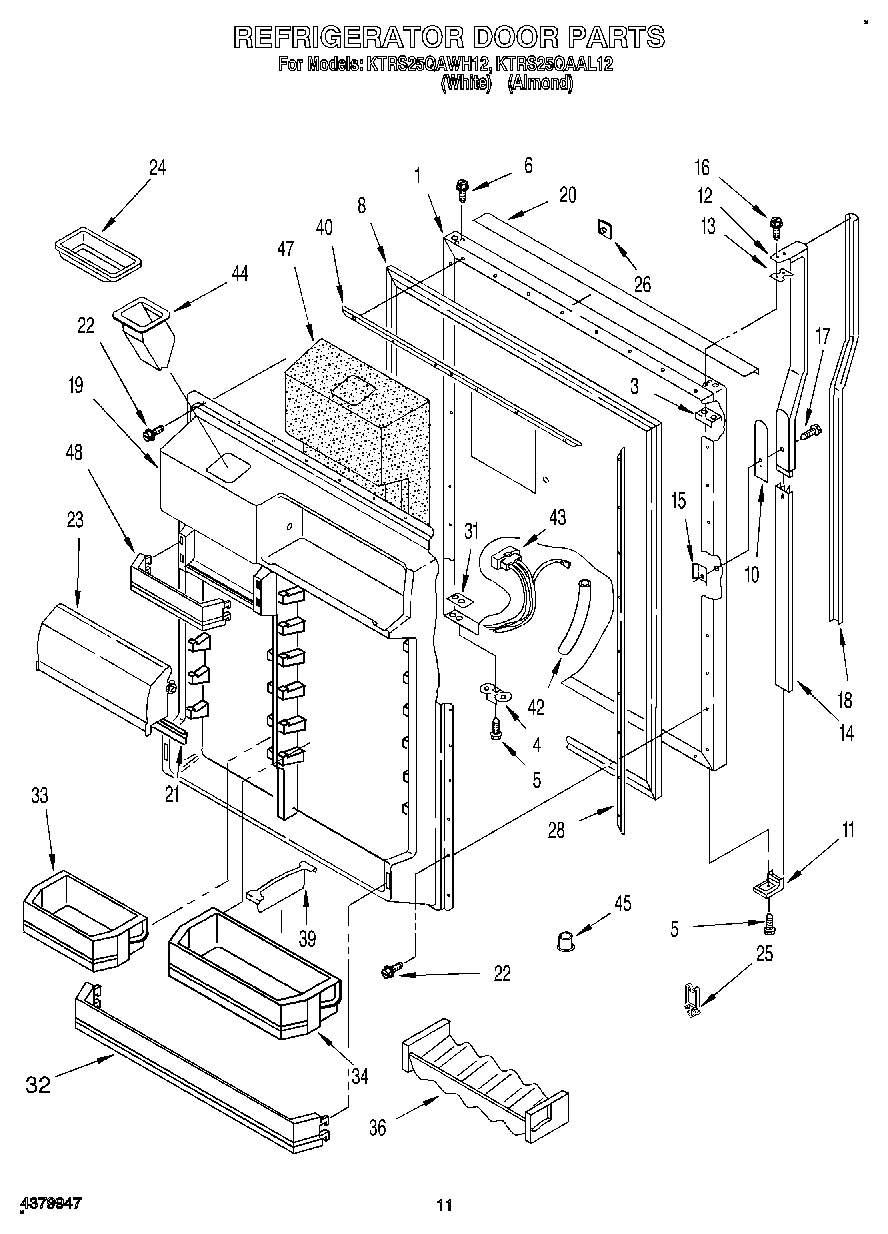

KTRS25QAAL12 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Panel, Refrigerator Door (Includes Insulation) (Almond)
1	Panel, Refrigerator Door (Includes Insulation) (White)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
8	Door Gasket, Magnetic
10	Spacer, Handle
11	Handle End
12	Handle
13	Shim, Bottom
14	Retainer, Insert
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	Insert, Handle (Almond)
18	Insert, Handle (White)
19	Interior Door Panel
20	Trim, Door
21	Gasket, Door Compartment
22	WP489442 Whirlpool Refrigerator Screw
23	Compartment Door
24	Butter, Tray
25	Clip
26	WP2189000 Whirlpool Refrigerator Handle Plug
28	Retainer, Gasket
31	Tap, Plate
32	Trivet Door (2)
33	Shelf Bin (3)
34	Bin, Door Shelf Deep. Wide
36	WPL 1125981
39	WPL 1117999
40	Retainer, Gasket
42	Tube-Door Wiring
43	Plug, Crossover
44	Ice Chute
45	Grommet, Water Tube
47	Insulation, Dispenser
48	Trivet, Door
