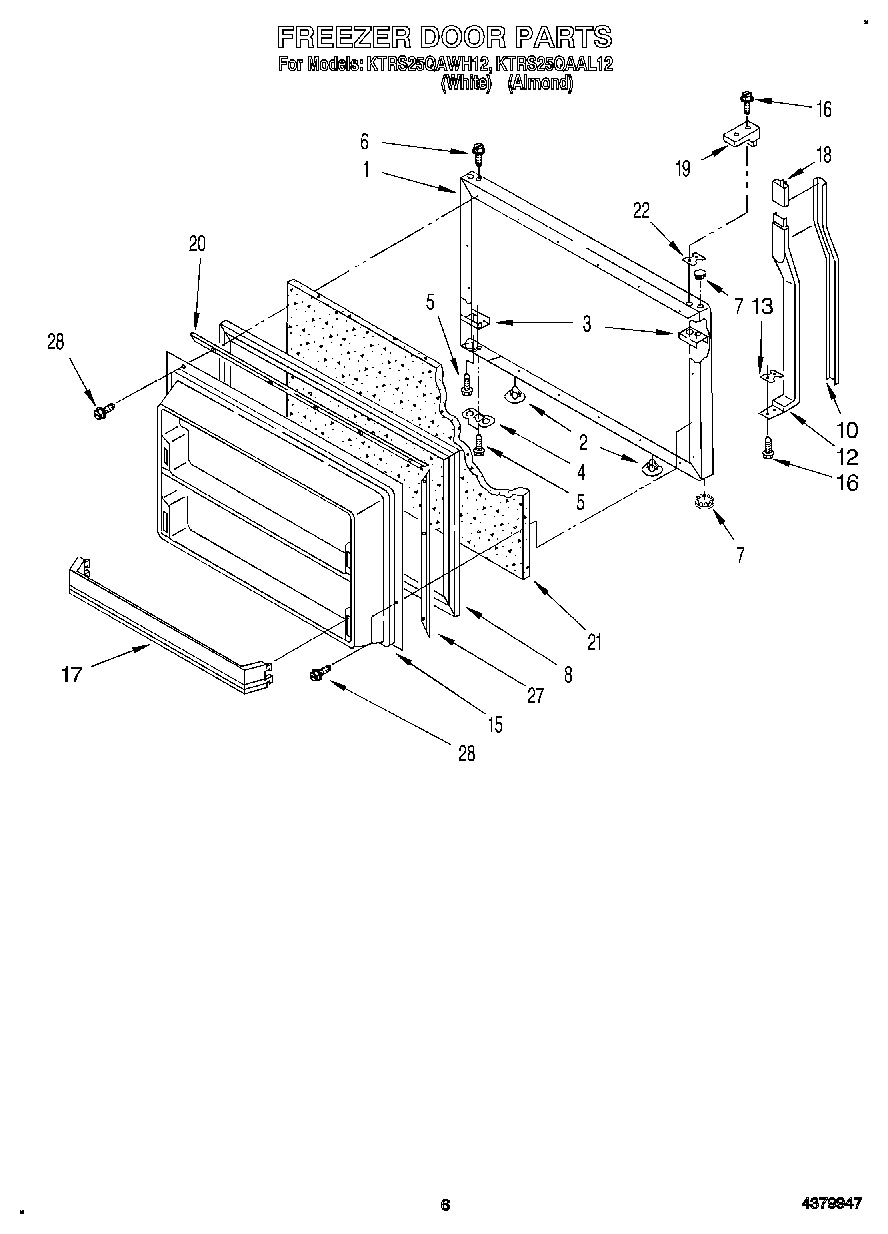

KTRS25QAWH12 04 – FREEZER DOOR

Products

PositionProduct
1Panel, Freezer Door (Also Order Item 21) (White)
1Panel, Freezer Door (Also Order Item 21) (Almond)
2Hole Plug (2) (Almond)
2Hole Plug (2)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Almond)
8Door Gasket, Magnetic
10Insert, Handle (White)
10Insert, Handle (Almond)
12Handle
13Spacer
15Interior Door Panel
16WP488920 Whirlpool Refrigerator Screw
17Trivet Door (2)
18Retainer, Insert
19End Cap
20Retainer, Gasket
21WPL 876029
22Spacer, Handle
27Retainer, Gasket
28WP489442 Whirlpool Refrigerator Screw
