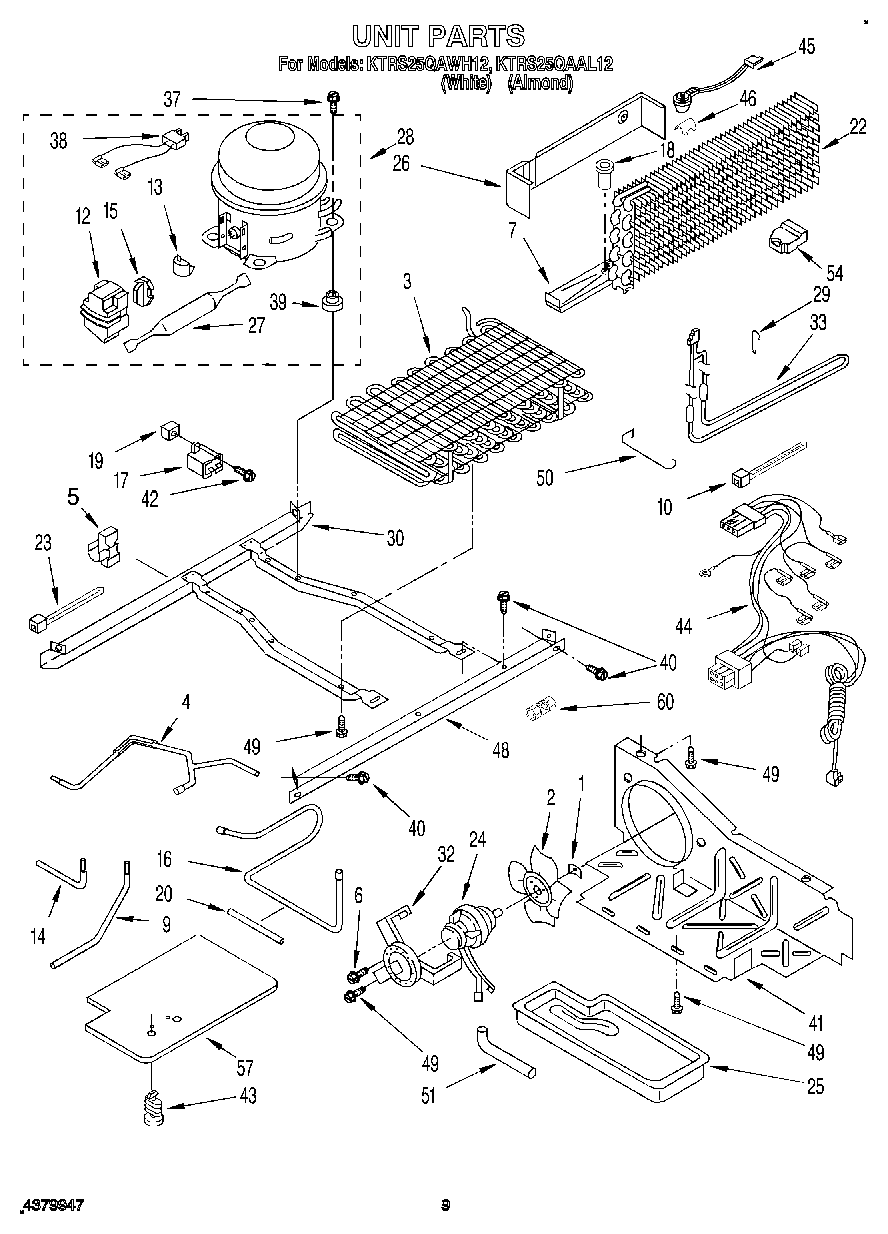

KTRS25QAWH12 06 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Blade, Fan
3	Condenser Assembly
4	Tube, Discharge
5	Clip, Wire
6	681390 Whirlpool Refrigerator Screw
7	Drain Pan
9	Tube, Condenser To Heat Loop
10	WPW10339879 Whirlpool Wire Tie
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2154697 Whirlpool Refrigerator Overload
14	2154109 Whirlpool Refrigerator Tube
15	Relay (See Overload)
16	Tube, Suction
17	Capacitor
18	Drain Fitting
19	Screw Grommet
20	SLEEVE
22	Evaporator
24	Motor, Fan
25	Tray, Evaporator
26	Heat Shield
27	W10843121 Whirlpool Refrigerator Tube
28	W10309994 Whirlpool Refrigerator Compressor
28	876765 Whirlpool Primary Mounting Kit Refrigerator
29	Support, Heater
30	2304904 Whirlpool Frame Assembly
32	Bracket, Motor
33	Heater, Defrost
38	WP2172890 Whirlpool Refrigerator Wire
39	876811 Whirlpool Grommet
40	WP489427 Whirlpool Refrigerator Screw
41	Air Baffle
42	W11693756 Whirlpool Screw Assembly
43	489396 Whirlpool Refrigerator Clip
44	Wire Assembly
45	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
46	9791833 Whirlpool Refrigerator Clip
48	2305374 Whirlpool Refrigerator Unit Rail
49	WP489464 Whirlpool Refrigerator Screw
50	Guard, Fan
51	Drain Extension
54	Wedge, Air Baffle
57	Cover, Unit Bottom
60	876764 Whirlpool Refrigerator Primary Valve
60	VALVE, ACCESS (1/2“)
60	VALVE, ACCESS (5/8“)
60	WP978025 Whirlpool Refrigerator Valve
60	978030 Whirlpool Refrigerator Valve
60	978026 Whirlpool Refrigerator Primary Valve
60	978027 Whirlpool Refrigerator Primary Valve
60	WP4211117 Whirlpool Refrigerator Connector
