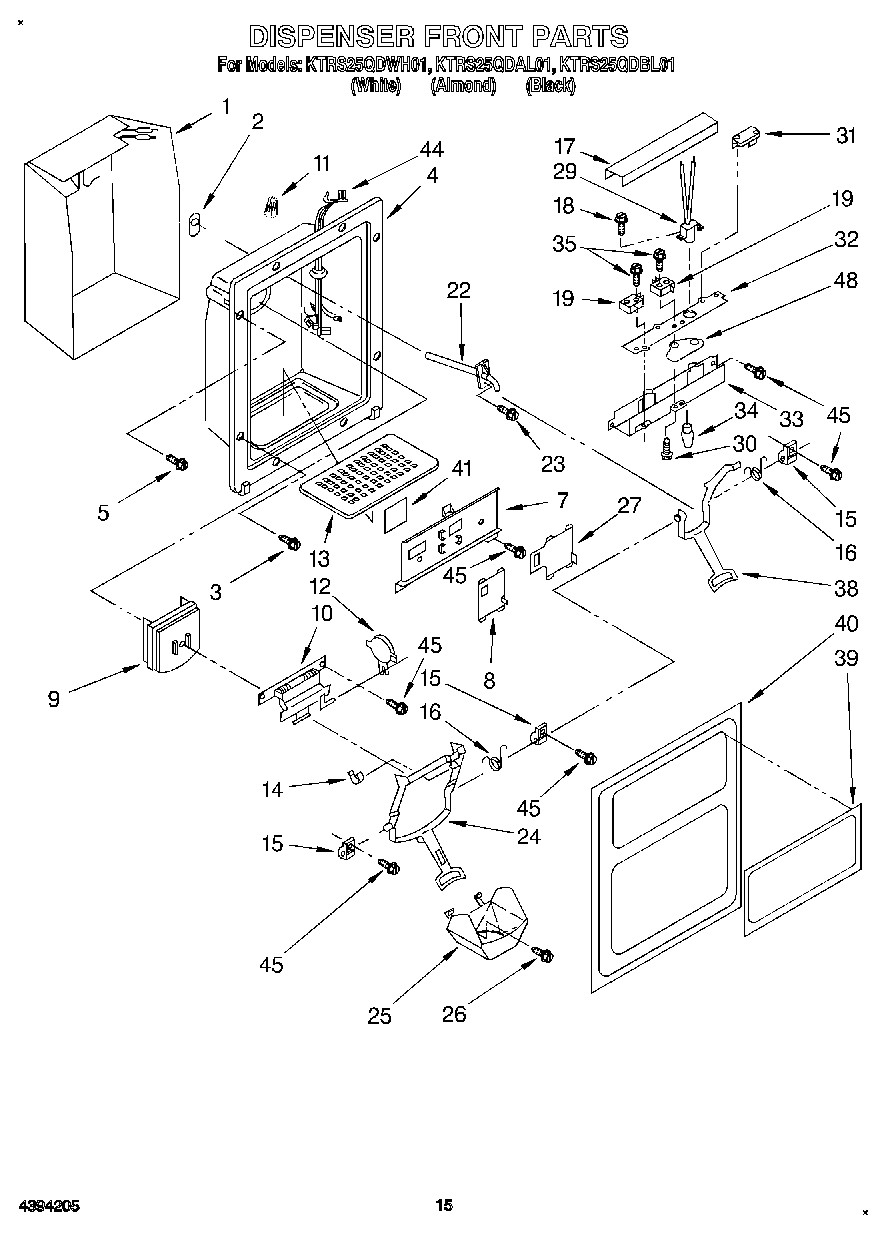

KTRS25QDWH01 09 – DISPENSER FRONT

KTRS25QDWH01 09 – DISPENSER FRONT

Written by

in

KTRS25QDWH01 09 – DISPENSER FRONT

Products

PositionProduct
1Heater, Dispenser
2Grommet
3WP489442 Whirlpool Refrigerator Screw
4Housing, Dispenser
4Housing, Dispenser
4Housing Dispenser (For Almond Model)
5W11693756 Whirlpool Screw Assembly
7Frame, Slides
7Frame, Slides (Almond)
7Frame, Slides
8Slide, Cube/Crush Switch (Almond)
8Slide, Cube/Crush Switch
8Slide, Cube/Crush Switch
9Door, Ice
10Door Mechanism Assembly (Includes Item 9)
11Wire Connector
12WP1120581 Whirlpool Refrigerator Mechanism
13Grille, Overflow (Almond)
13Grille, Overflow
13Grille, Overflow (White)
14Clip, Bearing (2)
15Bearing, Lever (3)
16Spring, Lever (2)
17Shield, Wiring
18WP489128 Whirlpool Refrigerator Screw
22WP4388152 Whirlpool Refrigerator Fitting
24Lever, Ice Dispenser
24Lever, Ice Dispenser (Almond)
24Lever, Ice Dispenser (White)
25Guide, Ice
25Guide, Ice (Almond)
25Guide, Ice
26Screw
26Screw
27Slide, Light Switch
27Slide, Light Switch (Almond)
27Slide, Light Switch
29Lamp Holder
30Screw, 4-40 x 1
31WP2162361 Whirlpool Switch
32Insulator, Control Bracket
33Bracket, Control
34WP22002263 Whirlpool Dryer 10W Light Bulb
35Screw,
38WPL 2177152
38Lever, Water Dispenser
38Lever Assembly, Water Dispenser (Black)
39WPL 2174338
39WPL 2174337
39WPL 2174336
40WPL 2179384
40WPL 2179385
40WPL 2179386
41Heat Shield, Frame
44Wiring Harness, Door
45WP3400906 Whirlpool Refrigerator Screw
48Spacer, Switch (2)
