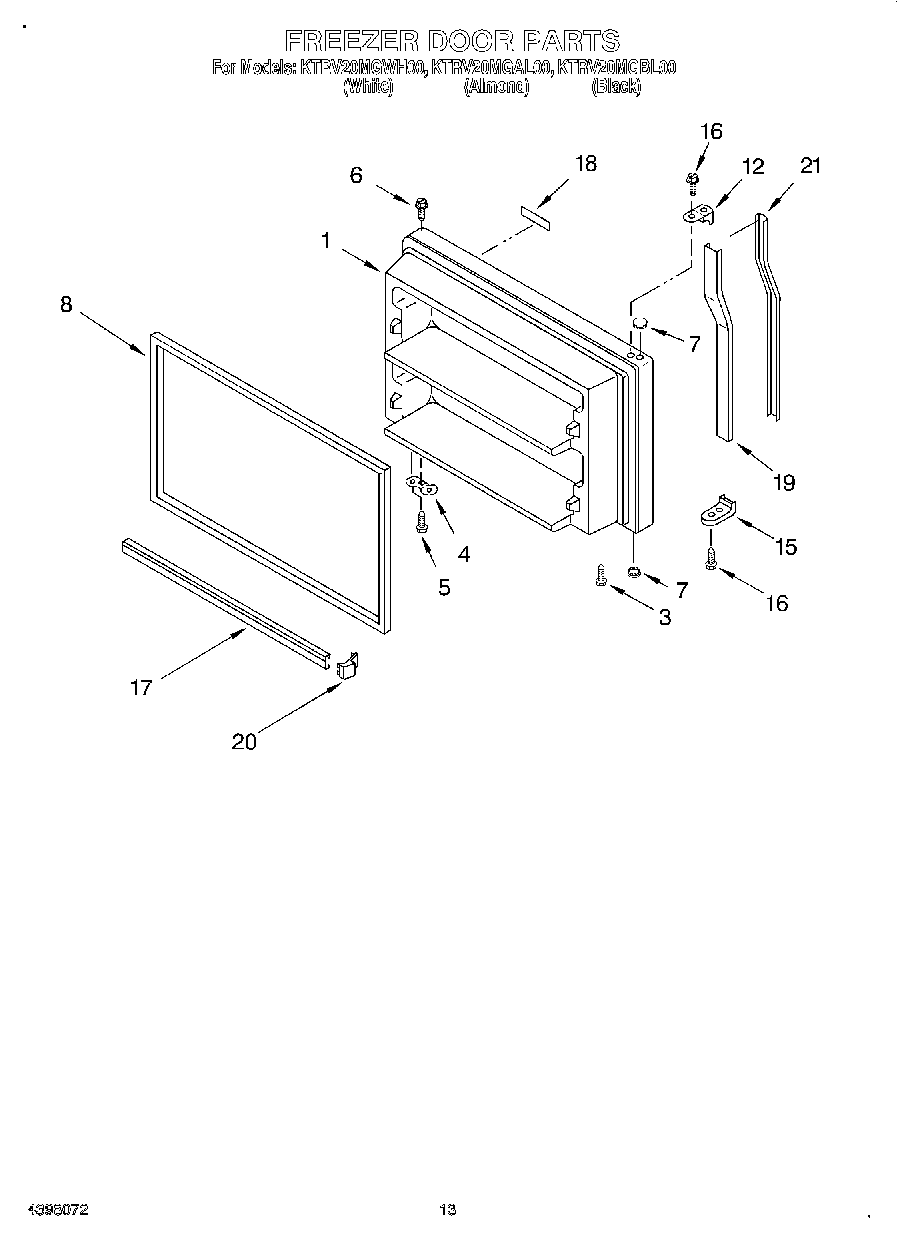

KTRV20MGAL00 07 – FREEZER DOOR, LIT/OPTIONAL

KTRV20MGAL00 07 – FREEZER DOOR, LIT/OPTIONAL

Written by

in

KTRV20MGAL00 07 – FREEZER DOOR, LIT/OPTIONAL

Products

PositionProduct
WPL LIT2199010
WPL LIT2200701
WPL LIT2195481
Modular Icemaker Service Sheet
Torx Key
1Freezer Door (Includes No.23 & No.32) (Almond)
1W11023679 Whirlpool Refrigerator Door Assembly
1W11023687 Whirlpool Refrigerator Door Assembly
3WP8281206 Whirlpool Refrigerator Screw
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Almond)
7WP2212651 Whirlpool Refrigerator Button Plug
8WHITE DOOR GASKET-FIP
82177310 Whirlpool Refrigerator Door Gasket
12Endcap
12Endcap, Handle (Almond)
12Endcap, Handle (Black)
15Endcap (Almond)
15End Cap (Black)
15Endcap
16WP489357 Whirlpool Recessed Screw
17Trim, Door Shelf (2)
18Nameplate (Black)
18Nameplate (Almond)
18Nameplate (White)
19Insert, Retainer (White)
19Insert, Retainer (Almond)
19Insert, Retainer (Black)
20ENDCAP
21Insert, Handle (Almond)
21Insert, Handle (White)
21Insert, Handle (Black)
100799344 Whirlpool Refrigerator Paint
100WP72107 Whirlpool Touchup
100WPL 876029
10072017 Whirlpool Appliance Touch-Up Paint White
100350942 Whirlpool Spray Paint
100Door Reversal Instructions
100350956 Whirlpool Spray Assembly
100350930 Whirlpool White Spray Paint
100Almond (Uncut)
100212643 Whirlpool Refrigerator Permagum Sealer
100WPL 799833
100WPL 799832
100285006 Whirlpool Spray
10072032 Whirlpool Touch Up Paint Black
100CEMENT, ALUMILASTIC (1 1/4 OZ.)
100TAPE, VINYL (3/4 X 108“)
100WP542638 Whirlpool Refrigerator Grease
100WP505587 Whirlpool Refrigerator Sealer
100WP503695 Whirlpool Refrigerator Sealer
100876370 Whirlpool Refrigerator Insulation
100833938 Whirlpool Refrigerator Terminal
100606755 Whirlpool Refrigerator Bag
100511873 Whirlpool Refrigerator Paint
100FeaturePak (Includes 2, 20, 21, 22, 25, 28, 29, 30) Also See Frz.Dr. & Shelf Pgs.
