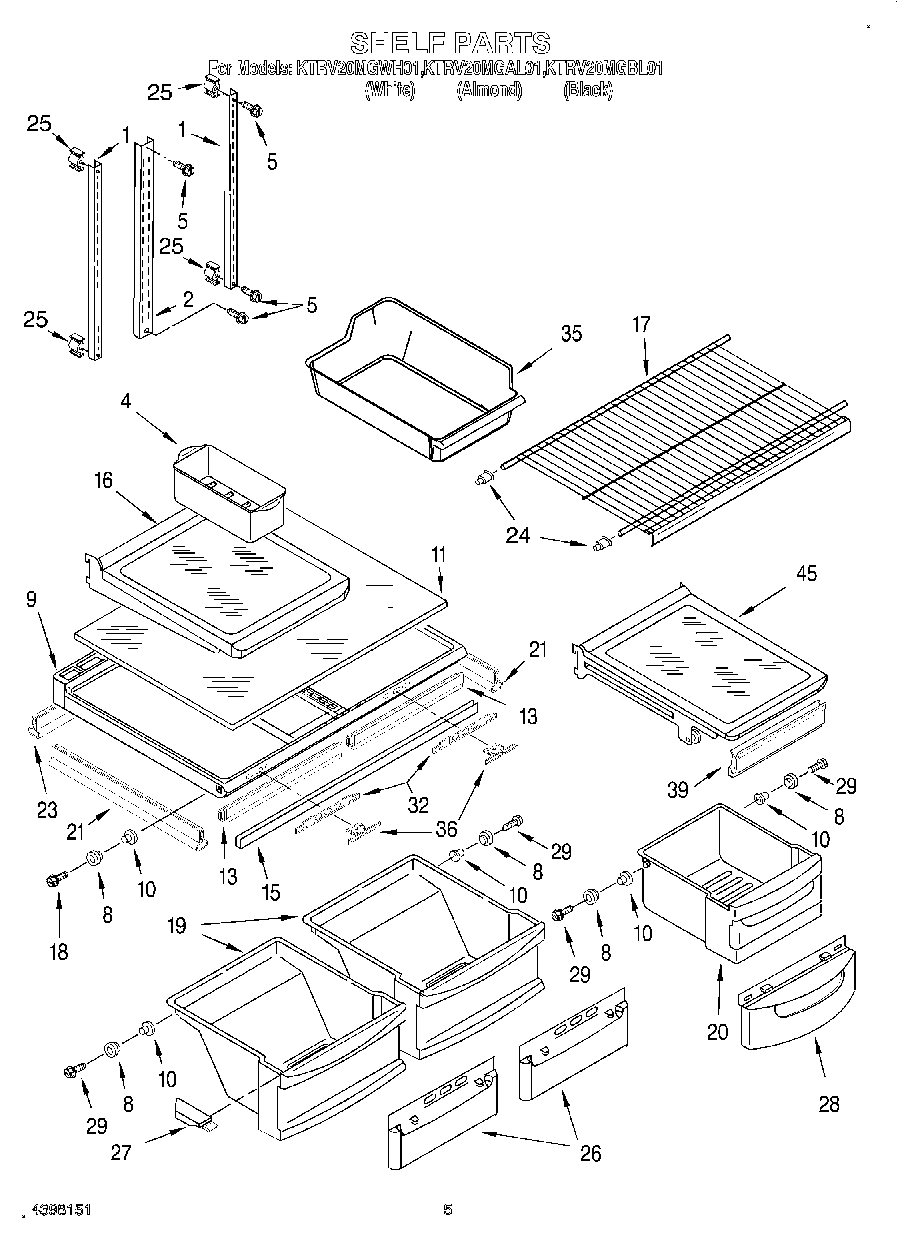

KTRV20MGAL01 03 – SHELF

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
4	W10136387A Whirlpool Refrigerator Egg Container
5	W11544659 Whirlpool Refrigerator Screw
8	Roller
9	Crisper Cover (Includes Rollers)
10	Eyelet, Roller
11	Glass, Crisper Cover
13	WP1125528 Whirlpool Refrigerator Gasket
15	WP2172748 Whirlpool Drawer Support
16	Shelf Assembly, Spillguard (3) (Includes Rollers)
17	Shelf, Freezer
18	WPW10272364 Whirlpool Refrigerator Screw
19	Pan, Crisper (Includes Rollers)
20	Pan, Meat (Includes Rollers)
21	Gasket, Crisper Cover (Side) (4)
23	Gasket, Pan Cover-Rear
24	2163762 Whirlpool Refrigerator Cup Assembly
25	520965 Whirlpool Refrigerator Support
26	Window
27	Cap, Crisper (Left Side)
27	Cap, Crisper (Right Side)
28	Window, Meat Pan
29	WP489261 Whirlpool Refrigerator Screw
32	Slide, Humidity
35	2254352A Whirlpool Refrigerator Ice Container
36	Button, Humidity Control
39	Gasket, Front
45	Shelf Assembly, Spillguard
100	FeaturePak (Includes 2, 20, 21, 22, 25, 28, 29, 30) Also See Frz.Dr. & Shelf Pgs.
