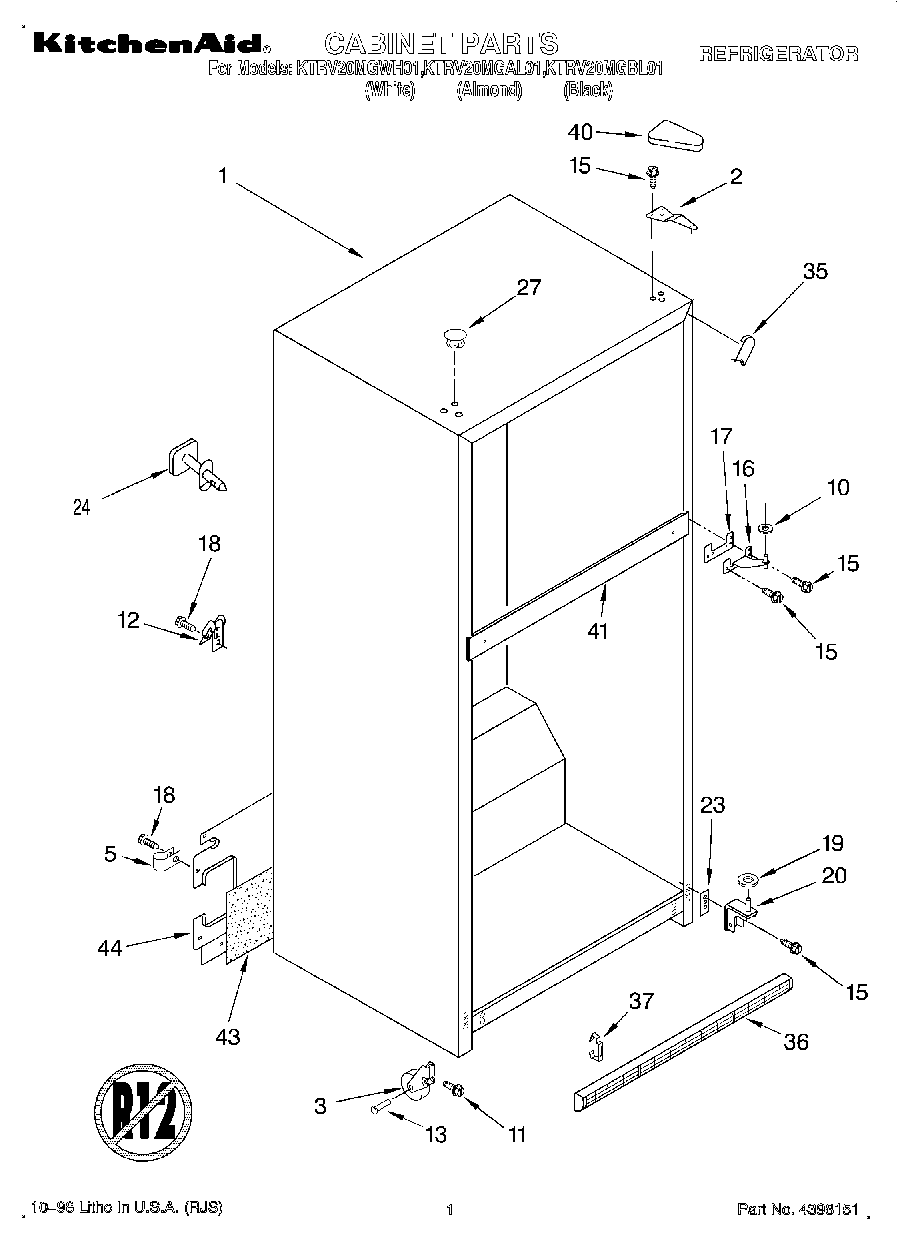

KTRV20MGWH01 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
5	WP488366 Whirlpool Refrigerator Clamp
10	WP489467 Whirlpool Hinge Shim
11	Screw
12	549193 Whirlpool Refrigerator Power Clamp
13	W11594405 Whirlpool Axle
15	WP489497 Whirlpool Screw
16	WP2254618 Whirlpool Center Door Hinge
17	WP2183854 Whirlpool Refrigerator Shim
18	WP489464 Whirlpool Refrigerator Screw
19	WP487576 Whirlpool Washer
20	WP2254473 Whirlpool Refrigerator Door Hinge
23	Shim, Bottom Hinge
24	Fitting, Water Tube (Not Serviced)
27	Hole Plug (6) (Almond)
27	WP2151652 Whirlpool Refrigerator Button Plug
27	WP2183998 Whirlpool Refrigerator Button Plug
35	WPW10283959 Whirlpool Refrigerator Filler
35	Corner Filler (2) (Almond)
35	W11252732 Whirlpool Refrigerator Filler
36	Grille (Black)
36	Grille (White)
36	Grille (Almond)
37	CLIP, GRILLE
40	Cover, Hinge (Almond)
40	WP2213360 Whirlpool Refrigerator Cover
40	WP2213363 Whirlpool Refrigerator Cover
41	Rail Center (Not Serviced)
43	Insulation
44	Cover, Unit
