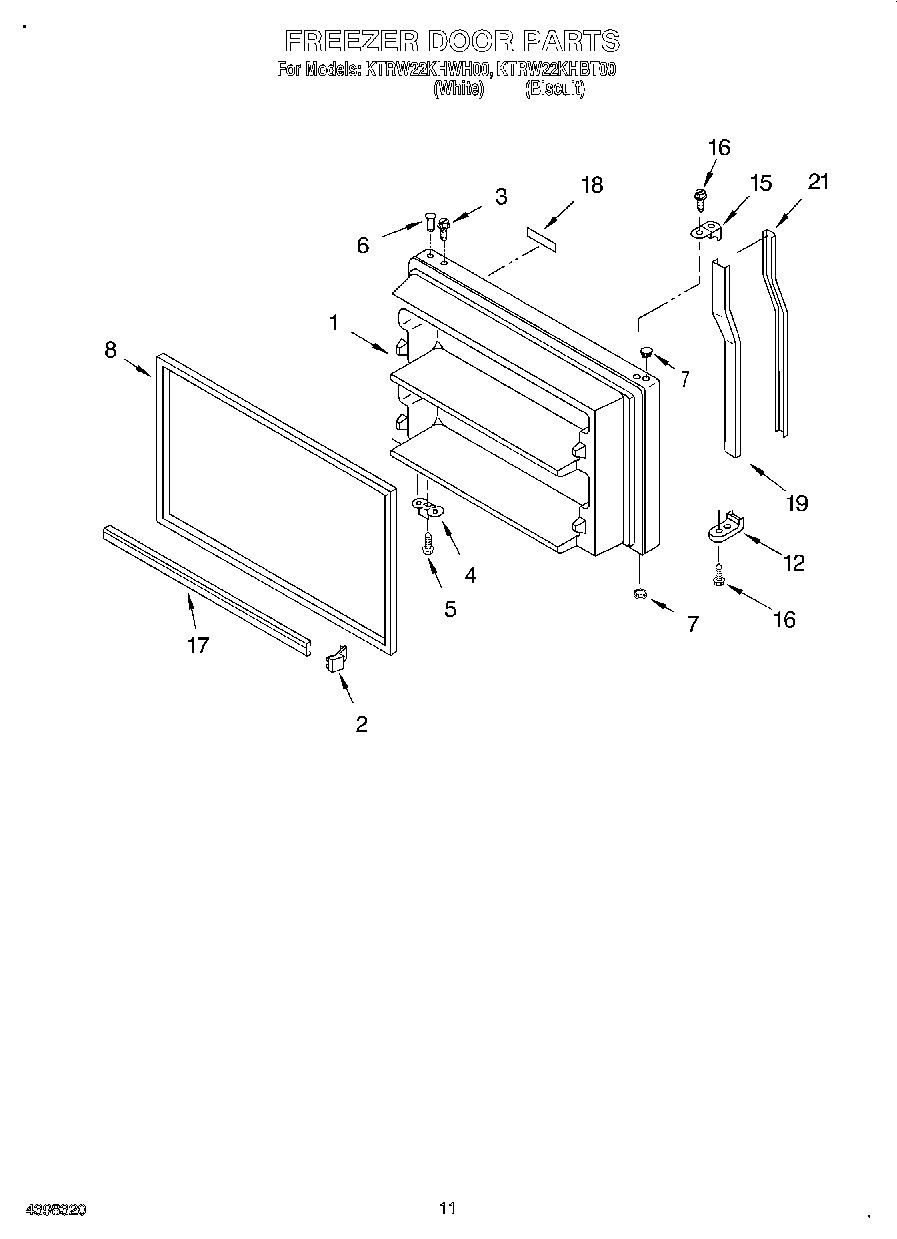

KTRW22KHBT00 06 – FREEZER DOOR, OPTIONAL

KTRW22KHBT00 06 – FREEZER DOOR, OPTIONAL

Written by

in

KTRW22KHBT00 06 – FREEZER DOOR, OPTIONAL

Products

Position	Product
1	Freezer Door (Includes No.8) (White)
1	Freezer Door (Includes No.6 & No.8) (Biscuit)
2	ENDCAP
3	WP8281206 Whirlpool Refrigerator Screw
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	WP2212649 Whirlpool Refrigerator Button Plug
8	WHITE DOOR GASKET-FIP
12	Endcap (Biscuit)
12	Endcap
15	Endcap
15	Endcap (Biscuit)
16	WP489357 Whirlpool Recessed Screw
17	Trim, Door Shelf (2)
18	Nameplate (White)
18	Nameplate (Biscuit)
19	Insert, Handle (Biscuit)
19	Insert, Retainer (White)
21	Insert, Handle (White)
21	Insert, Handle (Biscuit)
22	WPL 799833
22	511873 Whirlpool Refrigerator Paint
22	4392901 Whirlpool Biscuit Spray Paint
22	4392899 Whirlpool Biscuit Touch-Up Paint
22	350942 Whirlpool Spray Paint
22	Almond (Uncut)
22	212643 Whirlpool Refrigerator Permagum Sealer
22	WP72107 Whirlpool Touchup
22	799344 Whirlpool Refrigerator Paint
22	72017 Whirlpool Appliance Touch-Up Paint White
22	350956 Whirlpool Spray Assembly
22	350930 Whirlpool White Spray Paint
22	606755 Whirlpool Refrigerator Bag
22	833938 Whirlpool Refrigerator Terminal
22	72032 Whirlpool Touch Up Paint Black
22	WPL 876029
22	WPL 799832
22	CEMENT, ALUMILASTIC (1 1/4 OZ.)
22	TAPE, VINYL (3/4 X 108“)
22	Torx Key
22	WP542638 Whirlpool Refrigerator Grease
22	WP505587 Whirlpool Refrigerator Sealer
22	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
22	WP503695 Whirlpool Refrigerator Sealer
22	876370 Whirlpool Refrigerator Insulation
22	285006 Whirlpool Spray
22	Featurepak (Includes 4, 6, 8, 10, 16, 20, 30, 41, 42,45) See also Refrigerator Door Parts and Freeze
