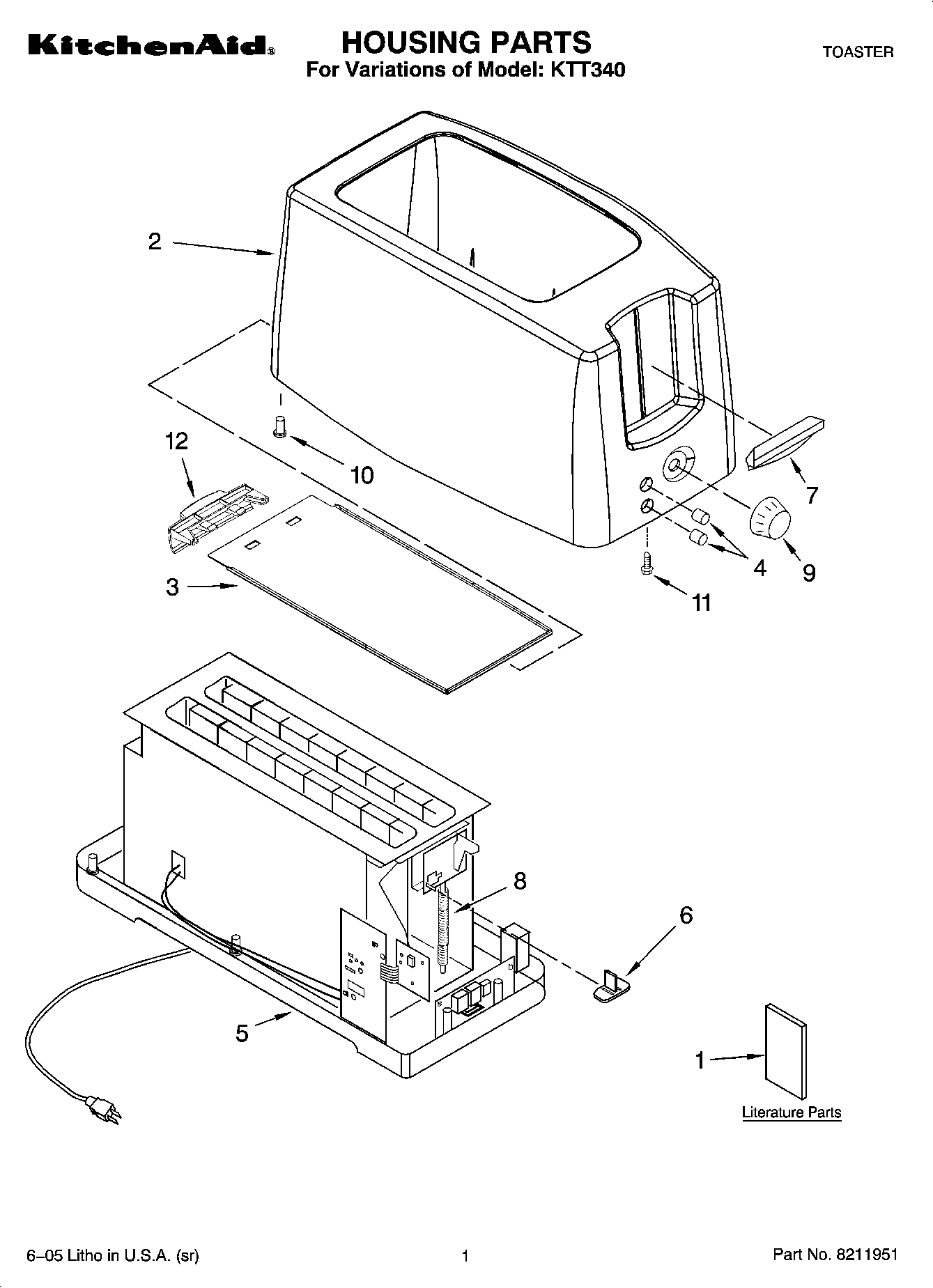

KTT340 01 – HOUSING PARTS

KTT340 01 – HOUSING PARTS

Written by

in

KTT340 01 – HOUSING PARTS

Products

PositionProduct
1Guide, Use & Care
1List, Repair Parts (1)
2Housing, Upper Assembly (Includes Item 4) (White)
2Housing, Upper Assembly (Includes Item 4) (Empire Red)
2Housing, Upper Assembly (Includes Item 4) (Cobalt Blue)
2Housing, Upper Assembly (Includes Item 4) (Onyx Black)
3Tray, Crumb
4Button, Function (Top)
4Button, Function (Bottom)
5Base-Core Assembly (Not Serviced)
6Holder, Magnet
7Knob, Toast (Empire Red)
7Knob, Toast (Onyx Black)
7Knob, Toast (Cobalt Blue)
7Knob, Toast (White)
8Spring, Compression
9Knob, Darkness (Empire Red)
9Knob, Darkness (Onyx Black)
9Knob, Darkness (Cobalt Blue)
9Knob, Darkness (White)
10Foot, Rubber
11Screw, Housing
12Handle, Crumb Tray (White)
12Handle, Crumb Tray (Cobalt Blue)
12Handle, Crumb Tray (Onyx Black)
12Handle, Crumb Tray (Empire Red)
