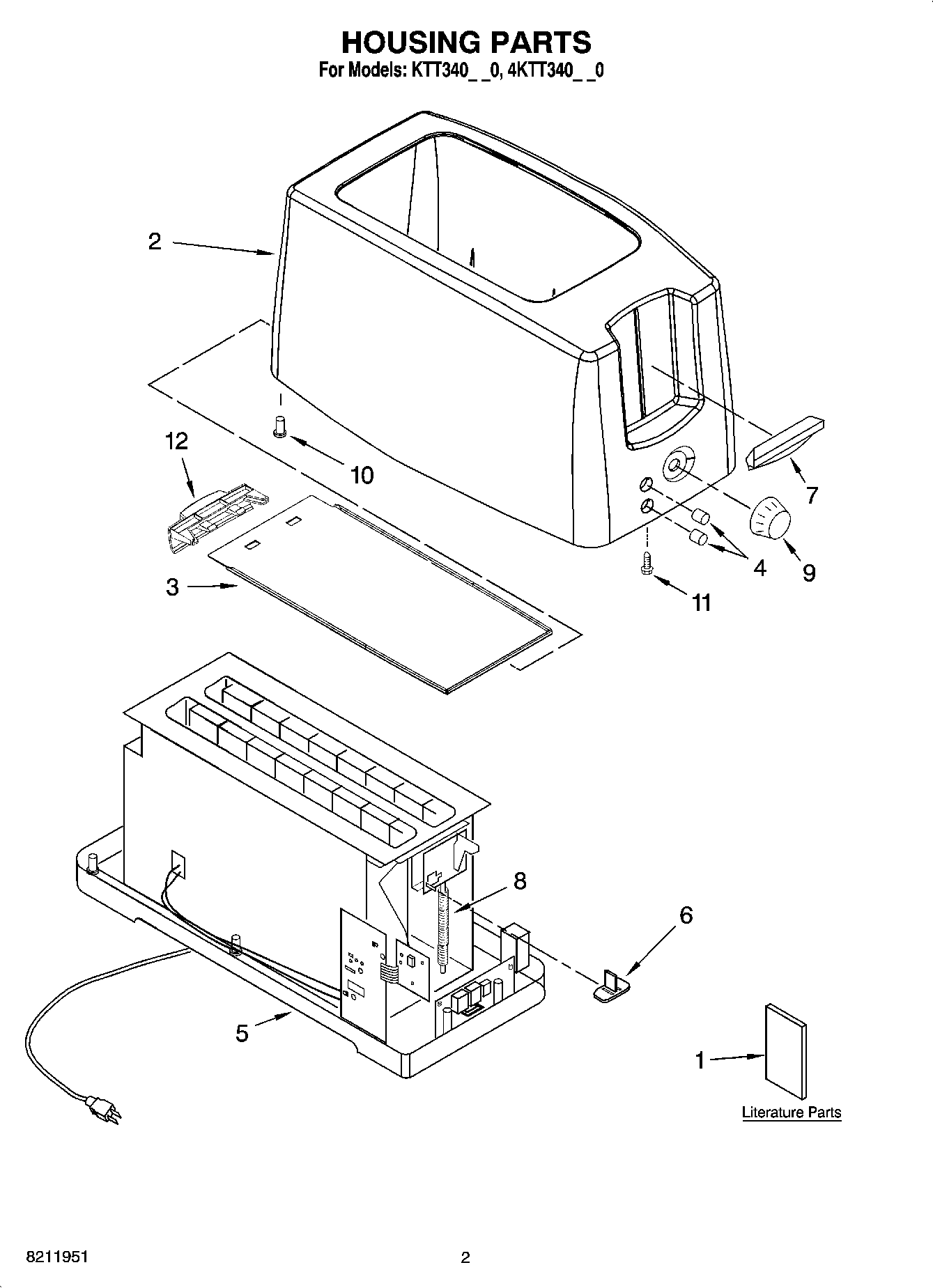

KTT340OB0 01 – HOUSING PARTS

Products

Position	Product
1	Guide, Use & Care
1	Repair Parts List
2	Housing, Upper Assembly (Includes Item 4) (White)
2	Housing, Upper Assembly (Includes Item 4) (Empire Red)
2	Housing, Upper Assembly (Includes Item 4) (Cobalt Blue)
2	Housing, Upper Assembly (Includes Item 4) (Onyx Black)
2	Housing, Upper Assembly (Includes Item 4) (Pink)
2	Housing, Upper Assembly (Includes Item 4) (Tangerine)
3	Tray, Crumb
4	Button, Function (Bottom)
4	Button, Function (Top)
5	Base-Core Assembly (Not Serviced)
6	Holder, Magnet
7	Knob, Toast (Empire Red)
7	Knob, Toast (Cobalt Blue)
7	Knob, Toast (White)
7	Knob, Lifter (Pink)
7	Knob, Toast (Onyx Black)
7	Knob, Lifter (Tangerine)
8	Spring, Compression
9	Knob, Darkness (Pink)
9	Knob, Darkness (Tangerine)
9	Knob, Darkness (Empire Red)
9	Knob, Darkness (Onyx Black)
9	Knob, Darkness (White)
9	Knob, Darkness (Cobalt Blue)
10	Foot, Rubber
11	Screw, Housing
12	Handle, Crumb Tray (Tangerine)
12	Handle, Crumb Tray (Pink)
12	Handle, Crumb Tray (Onyx Black)
12	Handle, Crumb Tray (White)
12	Handle, Crumb Tray (Cobalt Blue)
12	Handle, Crumb Tray (Empire Red)
