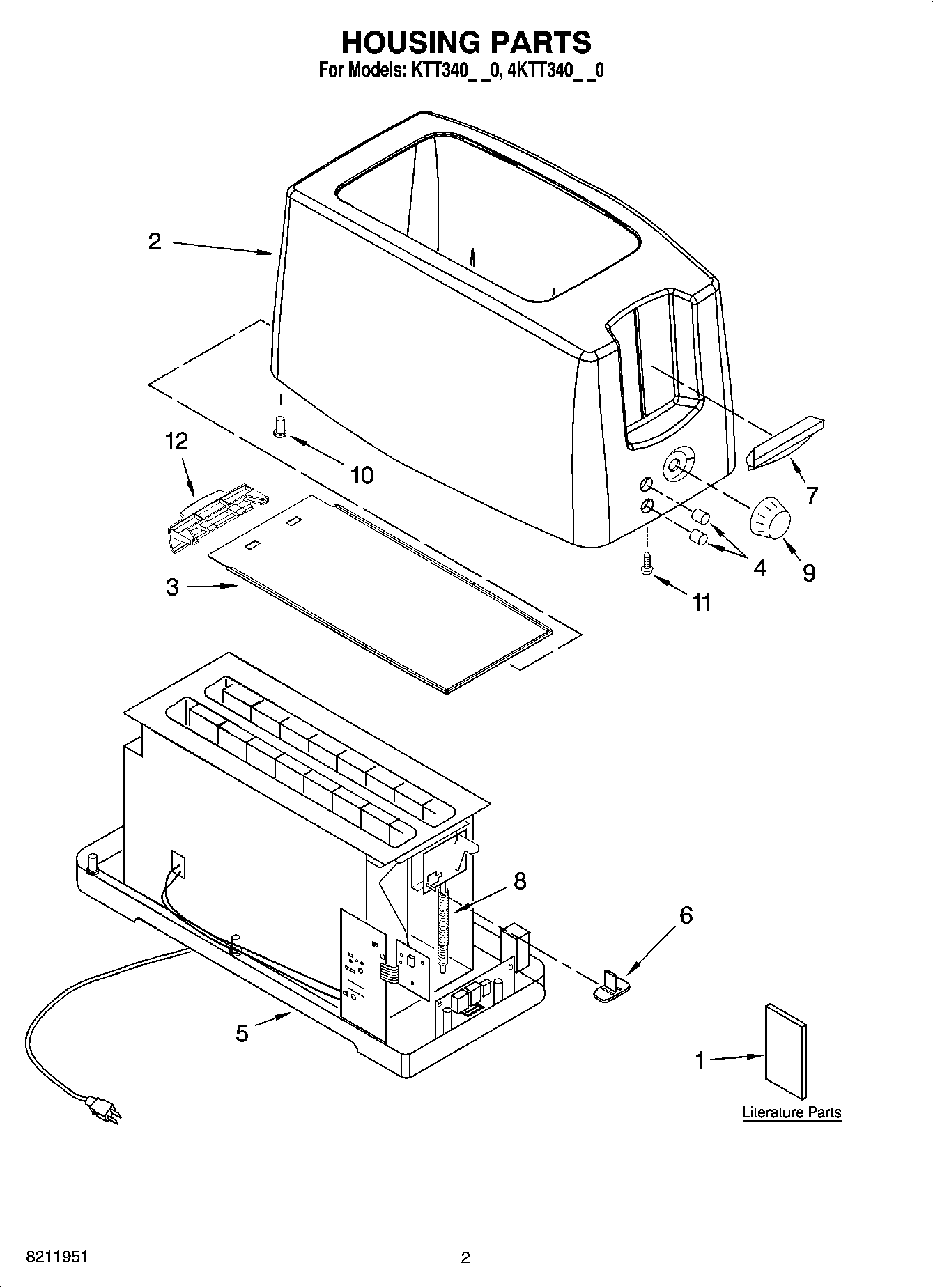

KTT340PK0 01 – HOUSING PARTS

Products

Position	Product
1	Guide, Use & Care
1	Repair Parts List
2	Housing, Upper Assembly (Includes Item 4) (Empire Red)
2	Housing, Upper Assembly (Includes Item 4) (Tangerine)
2	Housing, Upper Assembly (Includes Item 4) (Pink)
2	Housing, Upper Assembly (Includes Item 4) (White)
2	Housing, Upper Assembly (Includes Item 4) (Onyx Black)
2	Housing, Upper Assembly (Includes Item 4) (Cobalt Blue)
3	Tray, Crumb
4	Button, Function (Top)
4	Button, Function (Bottom)
5	Base-Core Assembly (Not Serviced)
6	Holder, Magnet
7	Knob, Lifter (Pink)
7	Knob, Lifter (Tangerine)
7	Knob, Toast (Empire Red)
7	Knob, Toast (Cobalt Blue)
7	Knob, Toast (White)
7	Knob, Toast (Onyx Black)
8	Spring, Compression
9	Knob, Darkness (Pink)
9	Knob, Darkness (Tangerine)
9	Knob, Darkness (Empire Red)
9	Knob, Darkness (White)
9	Knob, Darkness (Cobalt Blue)
9	Knob, Darkness (Onyx Black)
10	Foot, Rubber
11	Screw, Housing
12	Handle, Crumb Tray (Pink)
12	Handle, Crumb Tray (Onyx Black)
12	Handle, Crumb Tray (White)
12	Handle, Crumb Tray (Cobalt Blue)
12	Handle, Crumb Tray (Empire Red)
12	Handle, Crumb Tray (Tangerine)
